Automatic Transmission - 6F35
>>
Hydraulic System - 6F35
>>
System Operation
System Operation
Hydraulic System - 6F35
System Operation

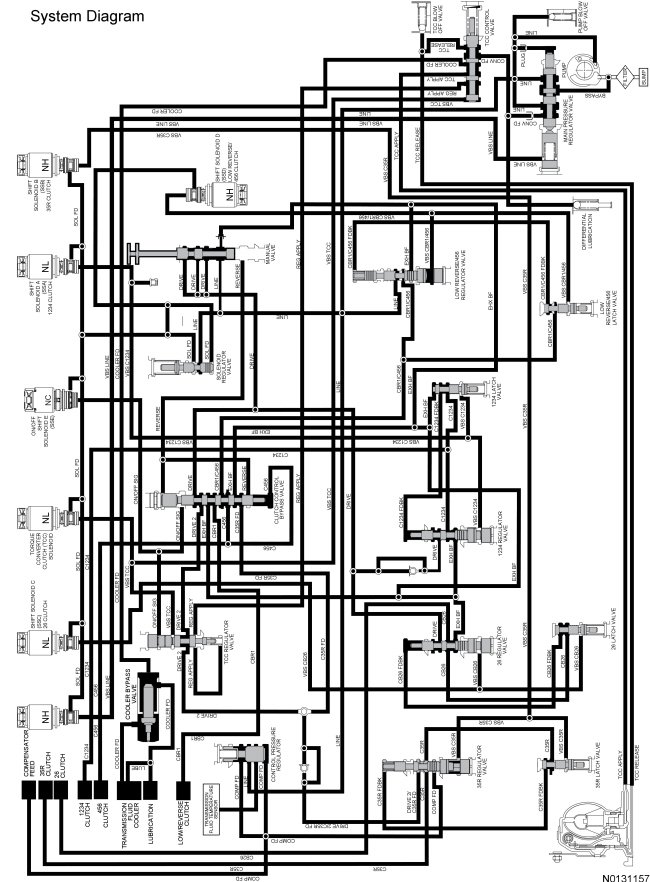

System Diagram
