Antenna: Service and Repair

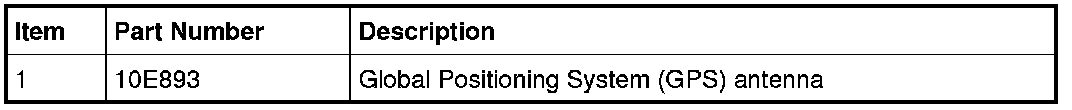

Global Positioning System (GPS) Antenna

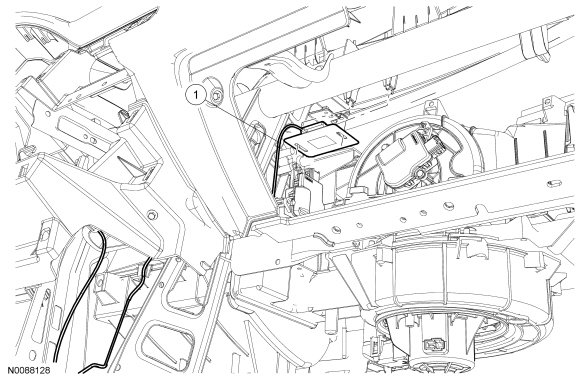

NOTE: Glove compartment shown removed for clarity.









Removal and Installation

1. Remove the Audio Control Module (ACM). For additional information, refer to Audio Control Module (ACM) .

2. NOTE: Lower the glove compartment completely to access the Global Positioning System (GPS) antenna.
Disengage the 2 clips and remove the GPS (Global Positioning System) antenna.


3. To install, reverse the removal procedure.
