Instrument Panel - Exploded View




Instrument Panel - Exploded View

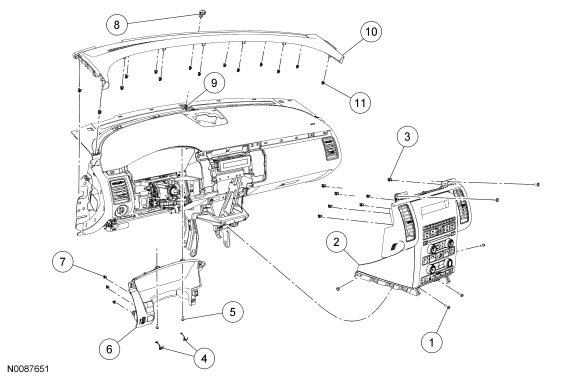

Instrument Panel Finish Panels and Fasteners

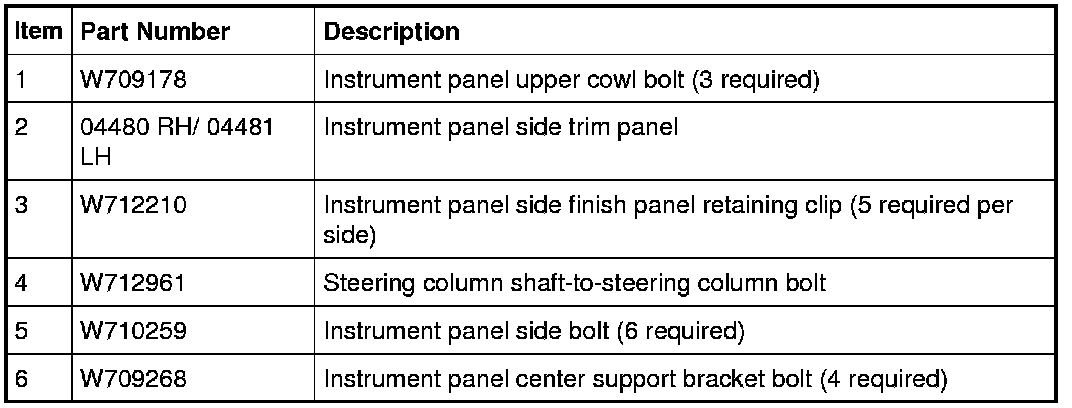

Instrument Panel Trim Panels, Finish Panels and Electrical Connectors

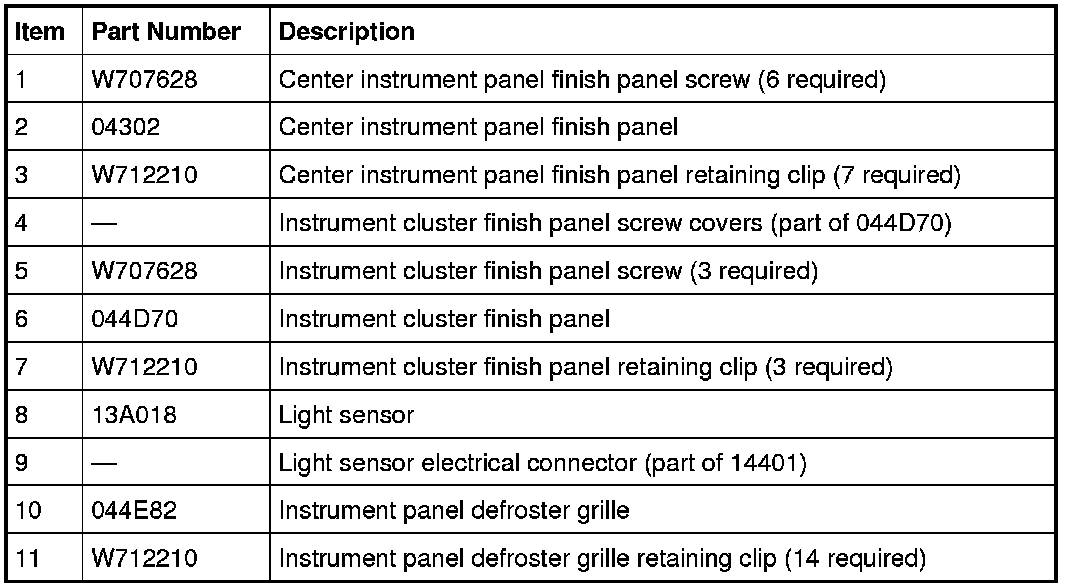

Instrument Panel and Instrument Cluster Finish Panels

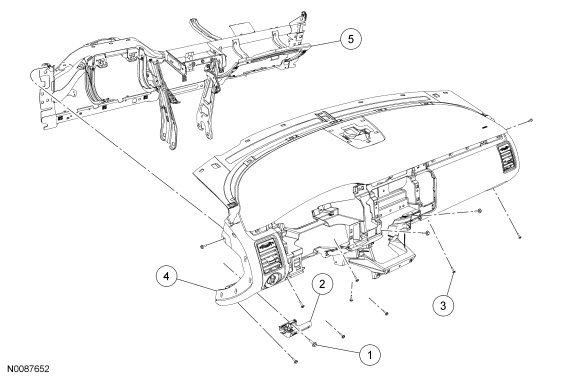

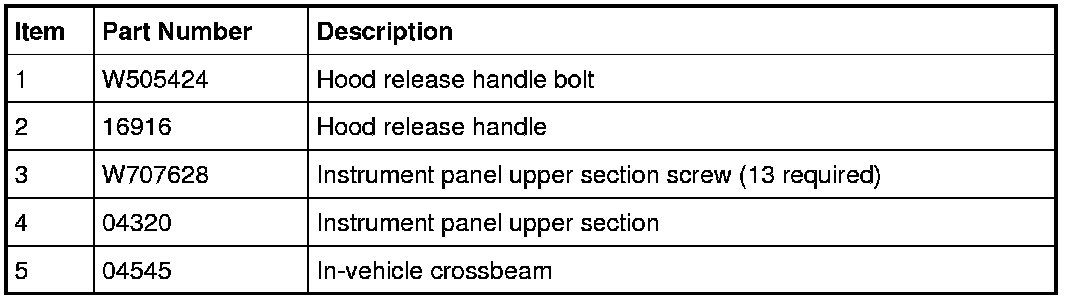

Instrument Panel Upper Section
