Windows - Power Window Squeak/Squeal Noise
TSB 11-11-2911/21/11
POWER WINDOW SQUEAK/SQUEAL NOISE FROM
OUTER DOOR BELT MOULDING - CHROME TRIM
ONLY
FORD:
2011-2012 Flex
ISSUE
Some 2011-2012 Flex vehicles equipped with chrome finish door outer belt mouldings may experience a squeak/squeal type noise during power window operations. Typical complaint is noise from the driver side front door window.
ACTION
Follow the Service Procedure steps to correct the condition.
SERVICE PROCEDURE
1. Open and close the four (4) door windows. Do any of the door outer belt moulding(s) exhibit a squeak/squeal noise?
a. Yes Squeak/squeal heard from the door outer belt moulding(s), proceed to Step 2.
b. No - This procedure does not apply, follow Workshop Manual (WSM), Section 501-00 for normal diagnostics.
2. Replace the belt moulding only on the door(s) exhibiting the squeak/squeal noise.
a. The outer belt moulding can be removed by gently lifting up from the outer door panel. Refer to Workshop Manual, Section 501-08 (exploded view).

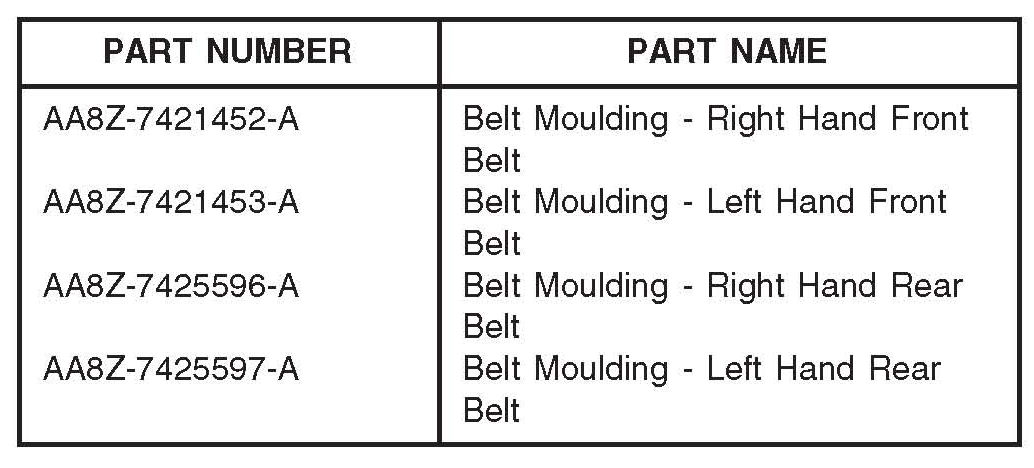

Parts Block
WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage IMPORTANT: Warranty/ESP coverage limits/policies are not altered by a TSB, Warranty/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.
OPERATION DESCRIPTION TIME
111129A 2011-2012 Flex: Diagnose, 0.2 Hr.
And Replace One (1) Or
Two (2) Outer Belt
Moulding(s) (Do Not Use
With Any Other Labor
Operations)
111129B 2011-2012 Flex: Diagnose, 0.3 Hr.
And Replace Three (3) Or
Four (4) Outer Belt
Moulding(s) (Do Not Use
With Any Other Labor
Operations)
DEALER CODING
CONDITION
BASIC PART NO. CODE
7421453 41
