Air Duct: Service and Repair

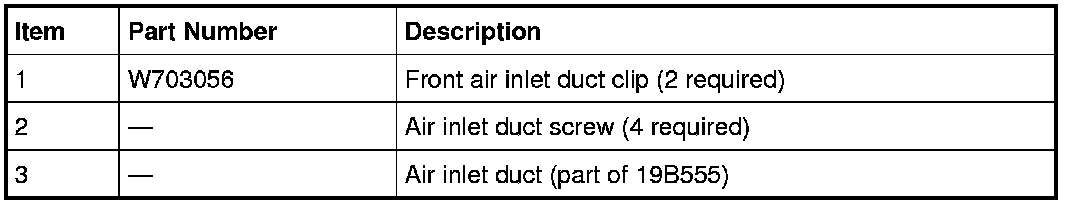

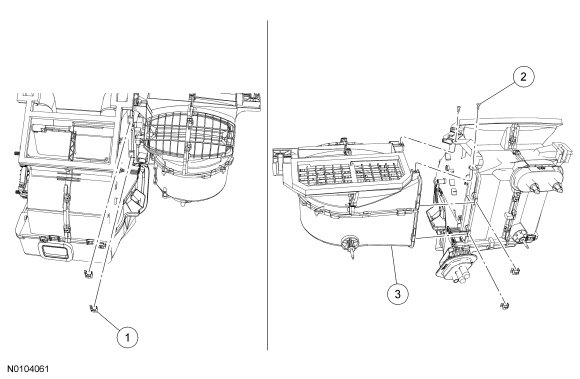

Air Inlet Duct









Removal and Installation

1. Remove the heater core and evaporator core housing. For additional information, refer to Heater Core And Evaporator Core Housing .

2. Remove the floor duct screw and the floor duct.





3. Remove the 2 air inlet duct screws.

4. Remove the 4 air inlet duct clips.

5. Detach and remove the air inlet duct.

6. To install, reverse the removal procedure.
