Locations
>>
Connectors
Connectors
C100-C184:
C184-C290A:

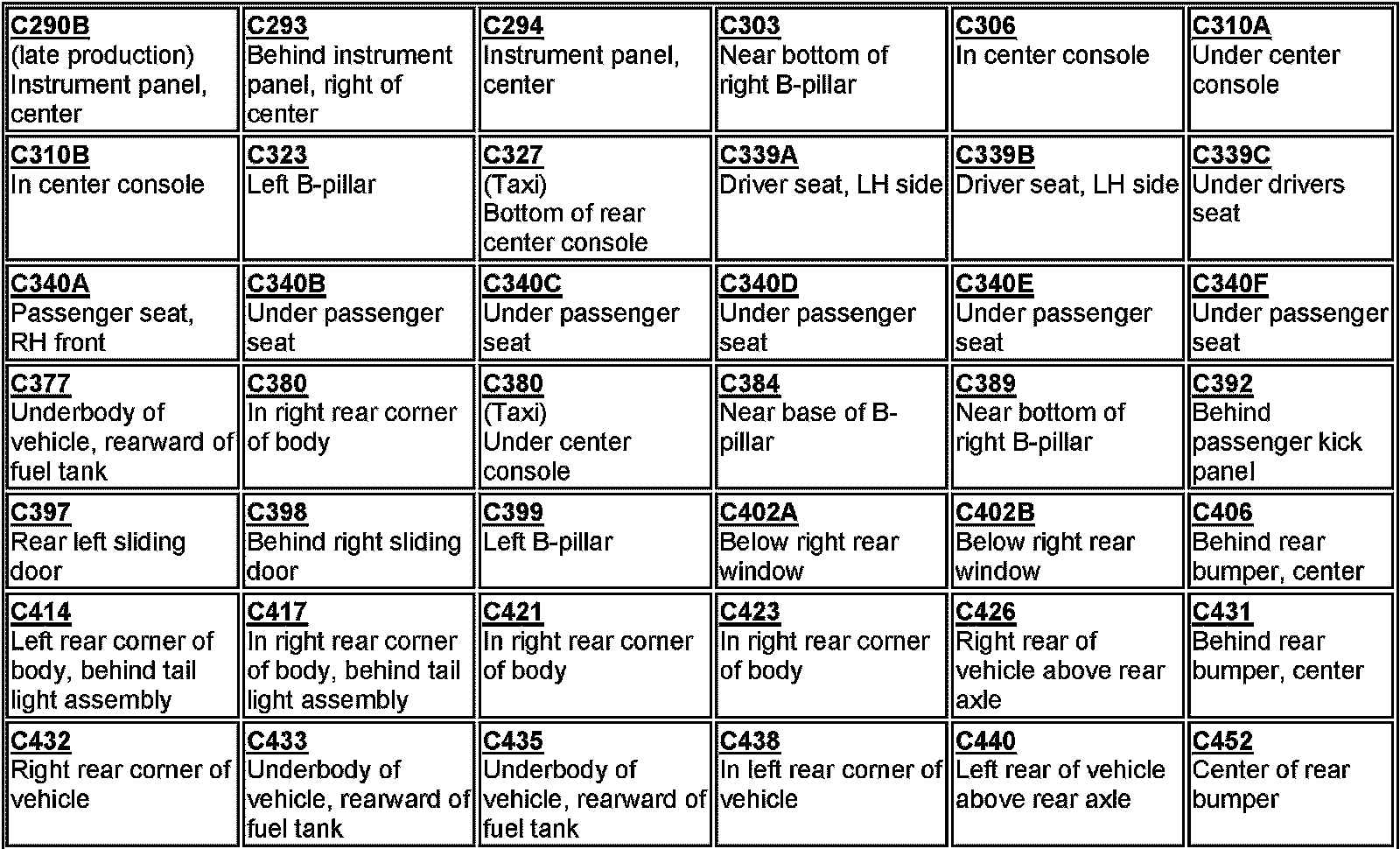

C290B-C452:

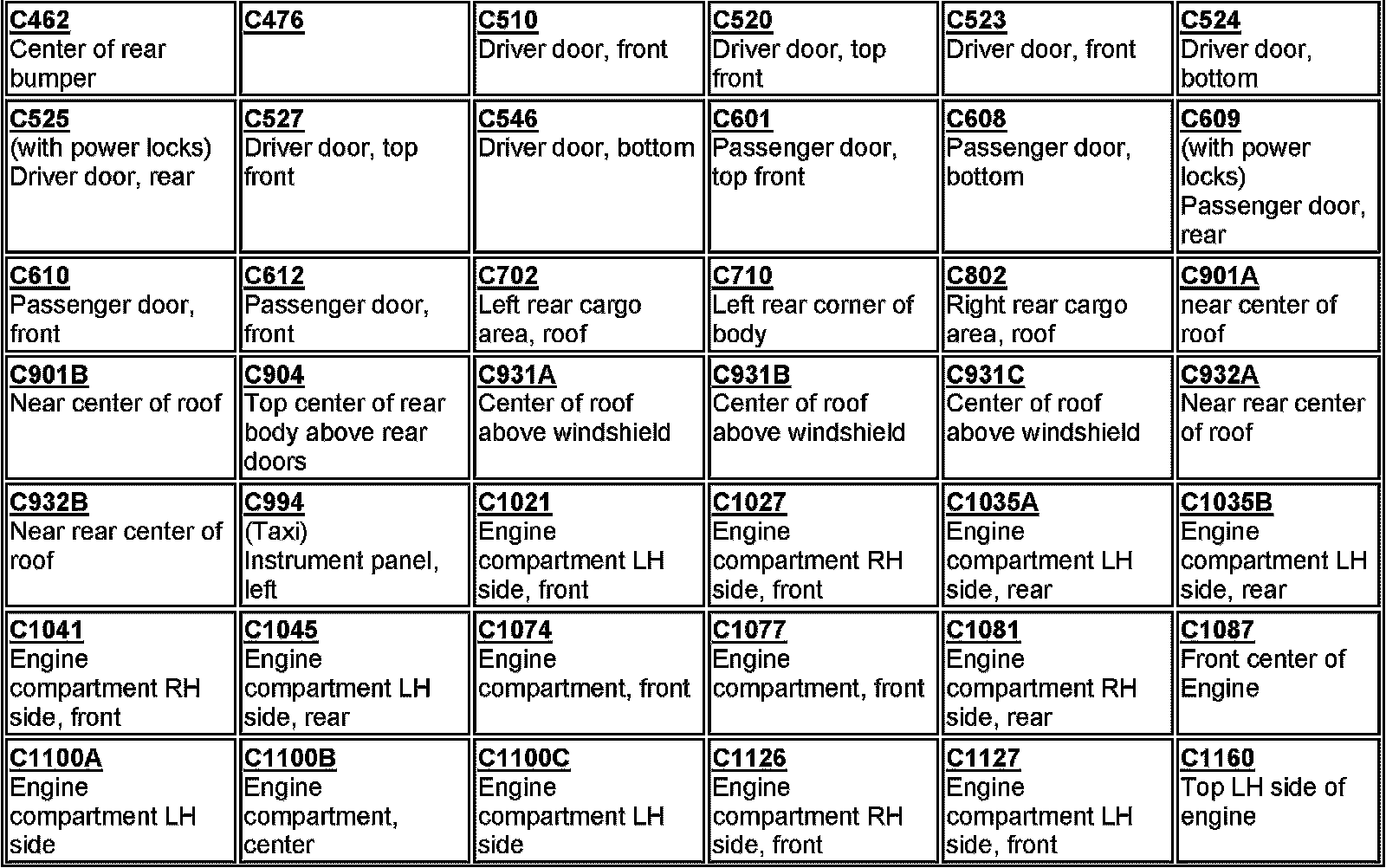

C462-C1160:

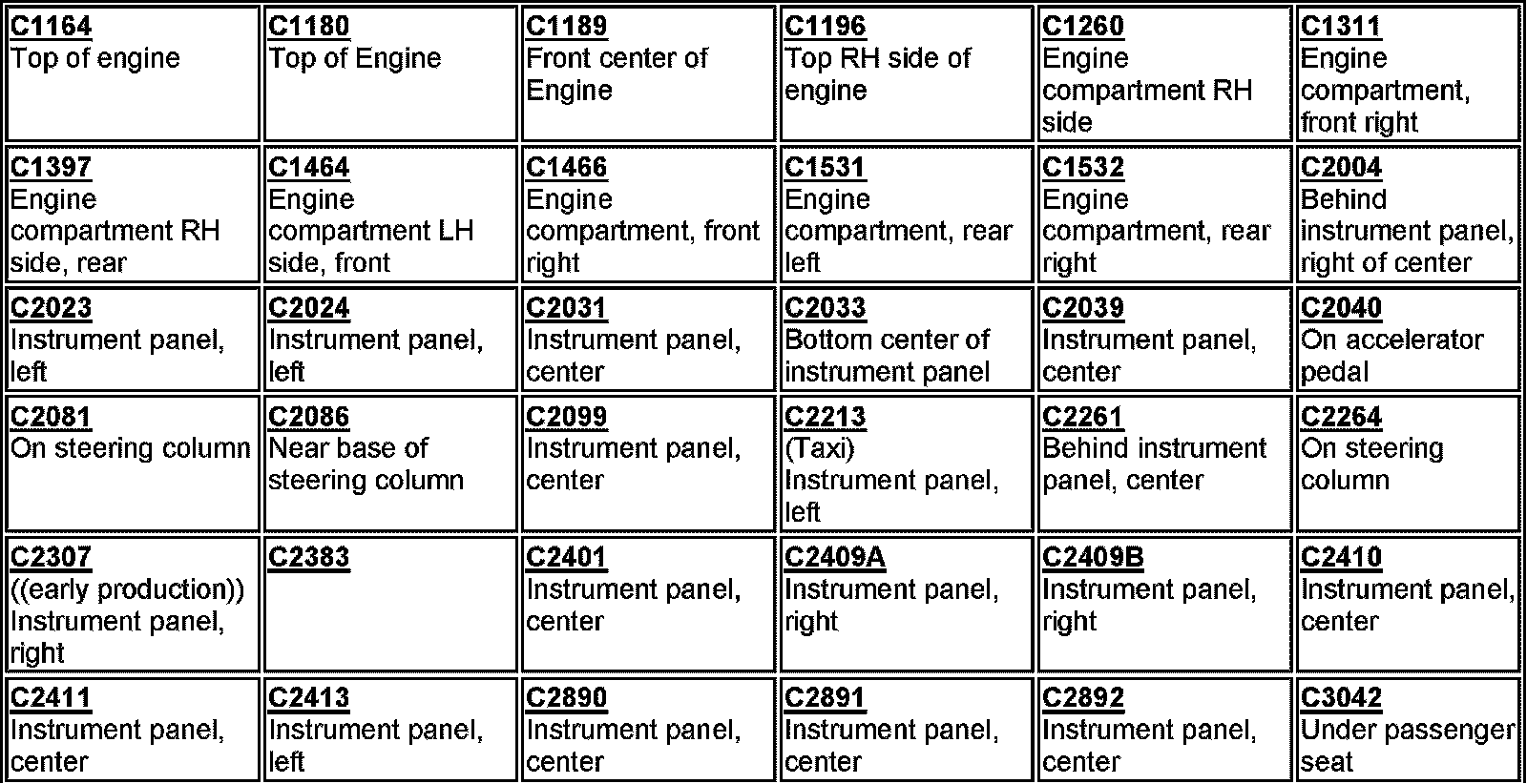

C1164-C3042:
C3073-C9221:
