Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Passenger Compartment Fuse Panel

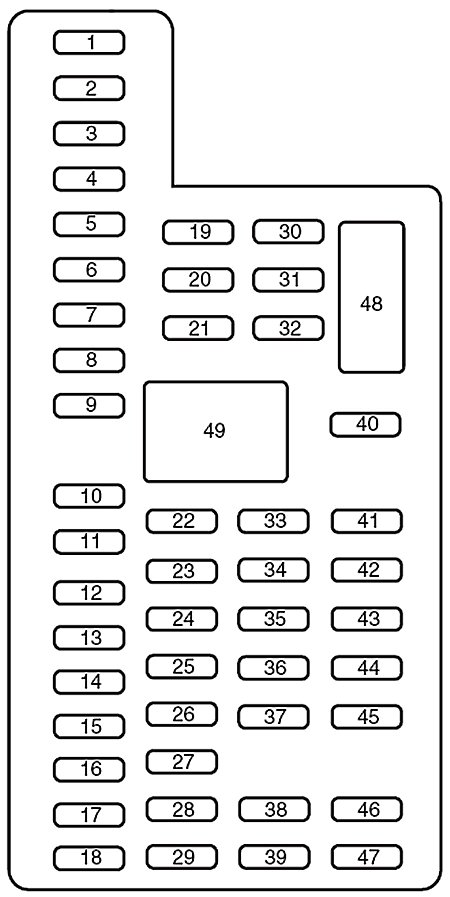

Passenger Compartment Fuse Panel
Passenger Compartment Fuse Panel
is located below and to the left of the steering wheel by the brake pedal.
