Power Distribution Box




Power Distribution Box is located in the engine compartment.

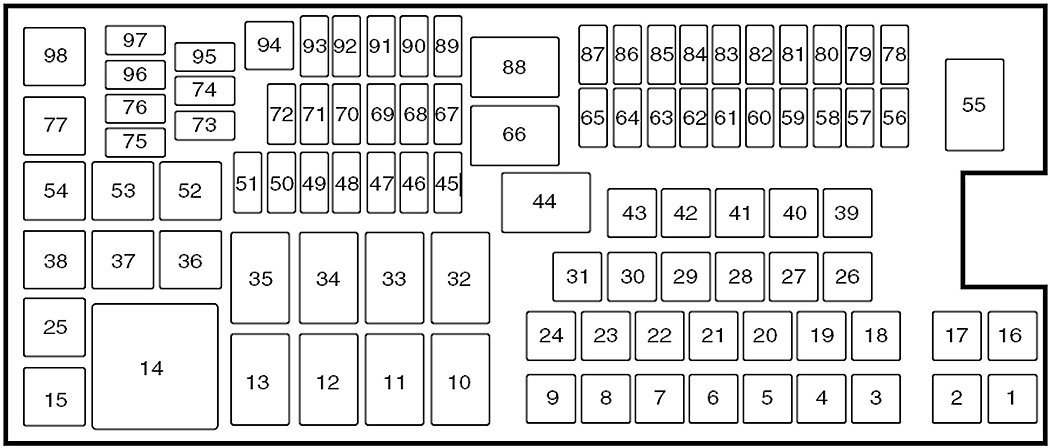

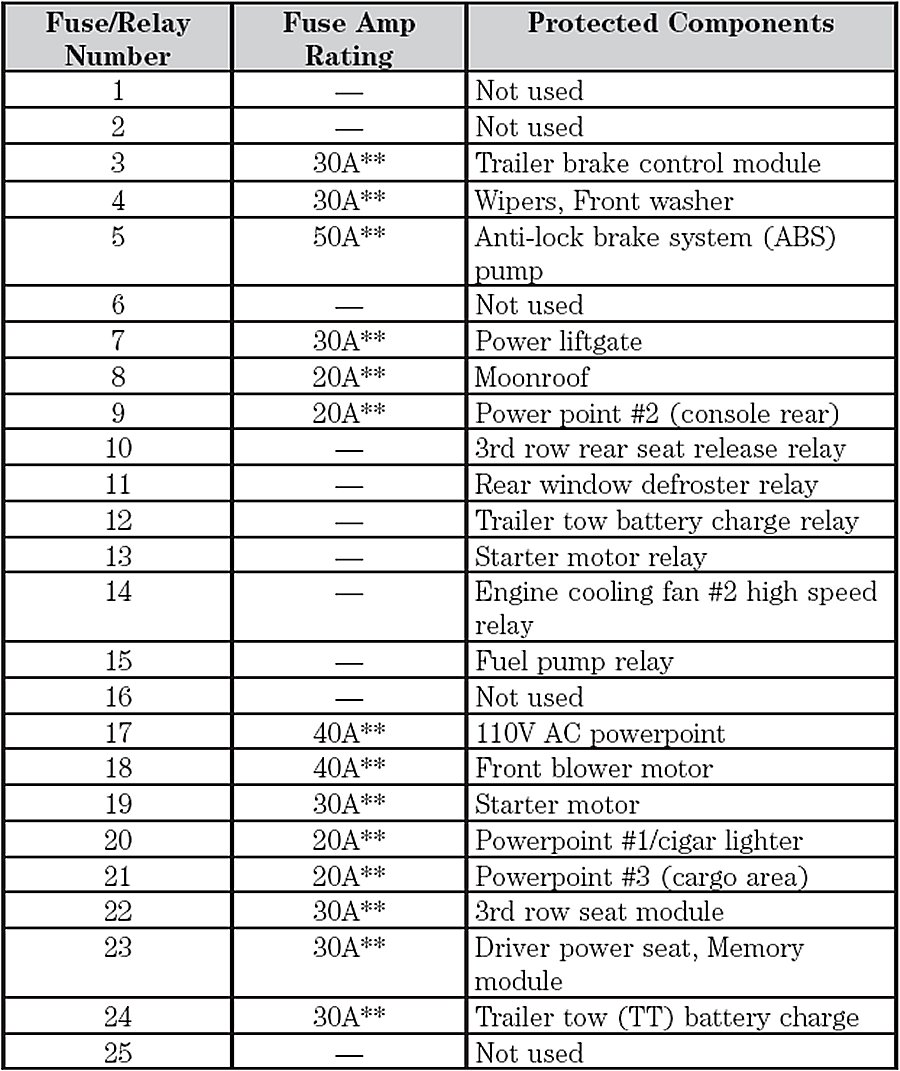

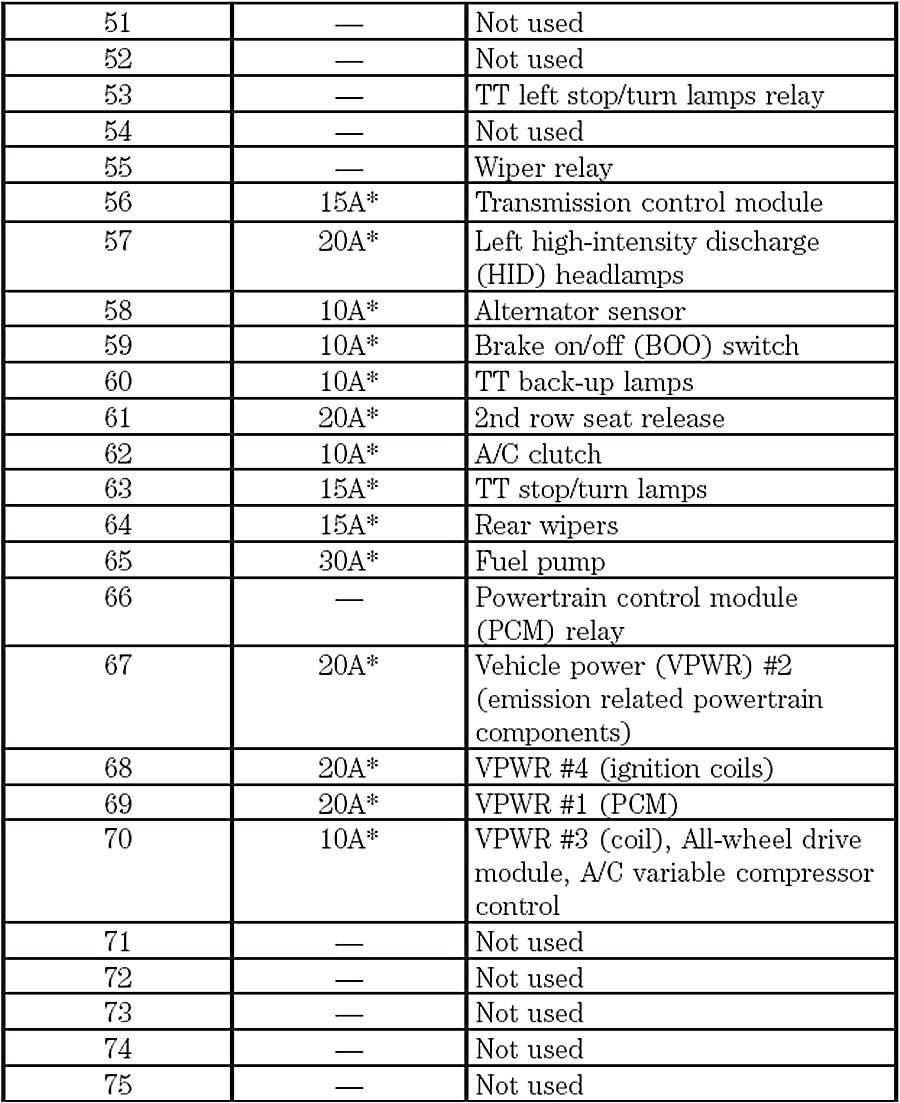

Power Distribution Box:
