Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1982
>>
Mustang V8-302 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Ignition System
Ignition System

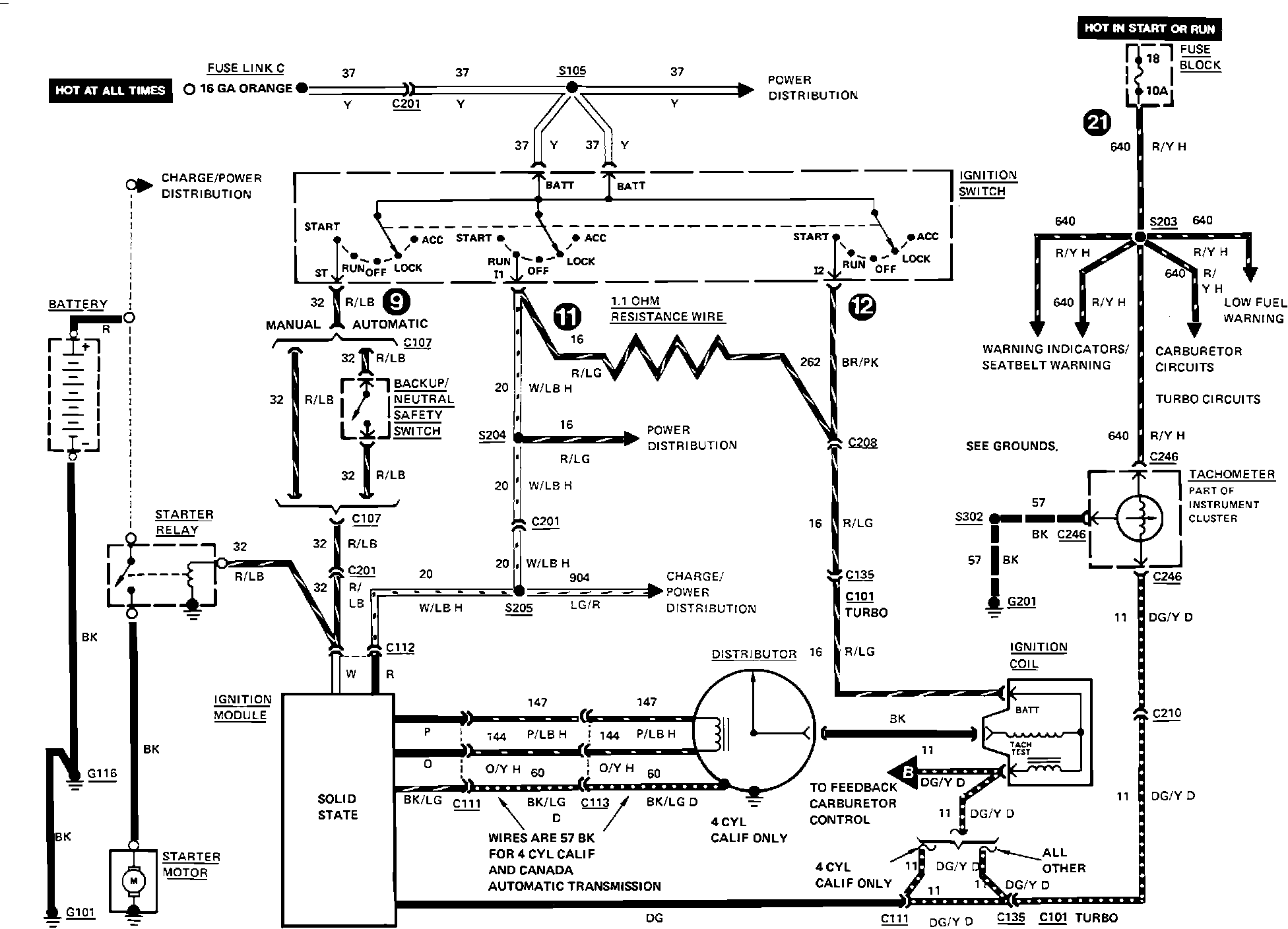

Wiring Diagram - Start/Ignition:
