Ignition System

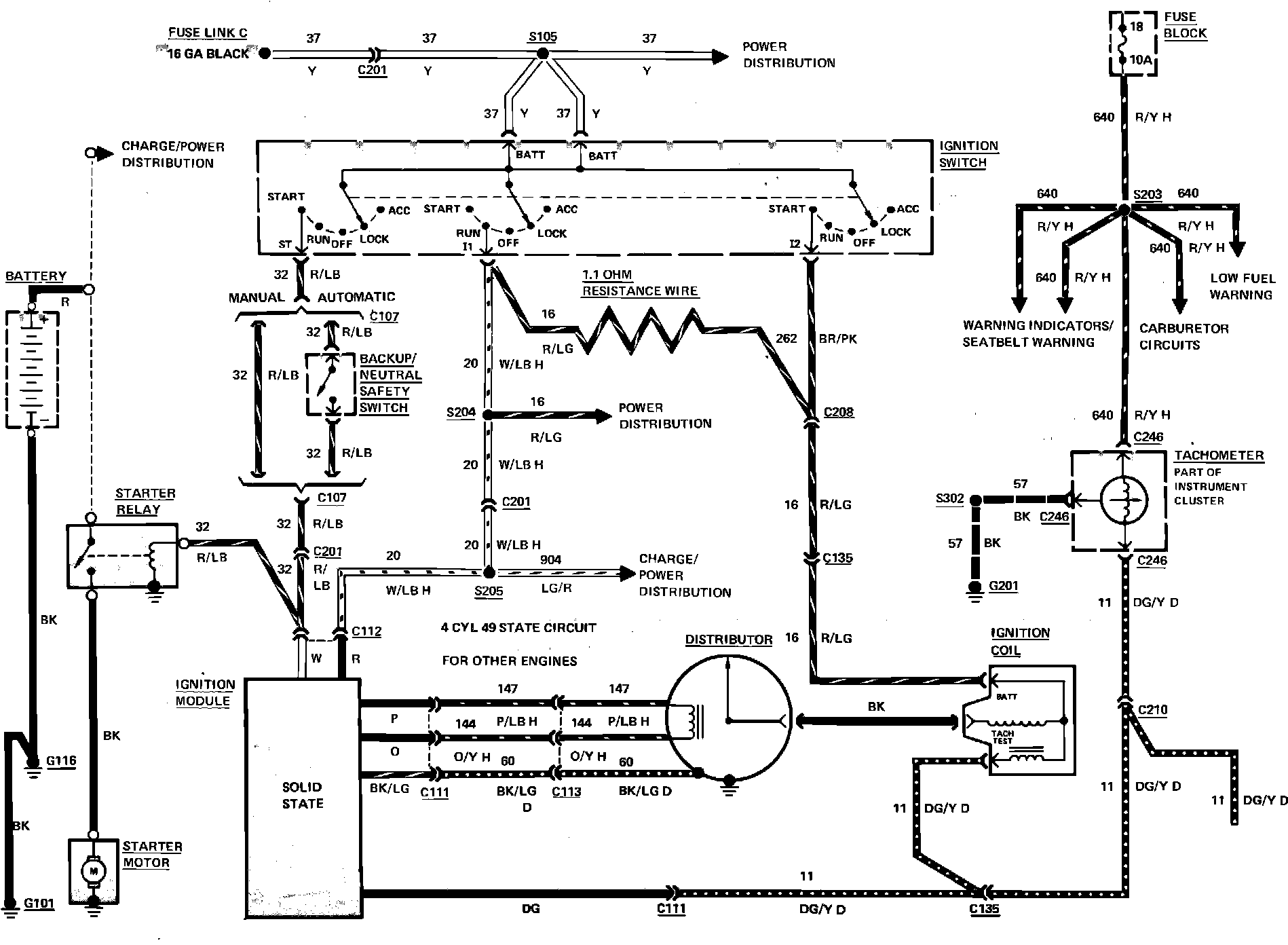

Fig. 44 Ignition, starting system & tachometer wiring circuit (Part 1 of 2). 1983 Capri & Mustang with 8 cyl engine:



Fig. 44 Ignition, starting system & tachometer wiring circuit (Part 2 of 2). 1983 Capri & Mustang with 8 cyl engine:
