Convertible Top - Hydraulic/Wiring Schematics

83ford11 Article No. 83-15-1


CONVERTIBLE - HYDRAULIC SYSTEM AND WIRING SCHEMATICS


FORD 1983 MUSTANG

Figure 1:

FIGURE 2:

Figure 3:

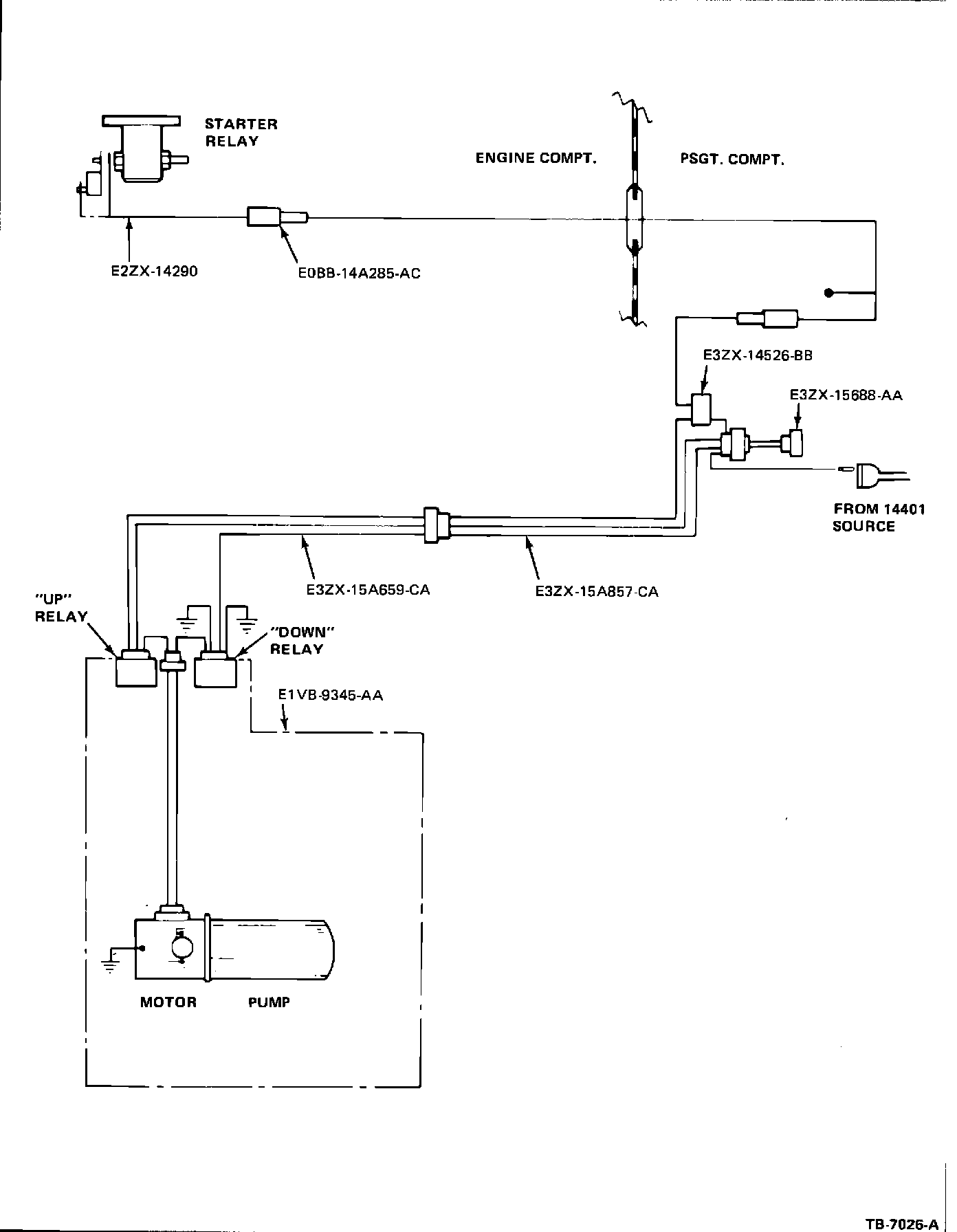

To assist in servicing concerns related to the power top operating system, the following information on the hydraulic and electrical systems is being published. The hydraulic pump and motor assembly is located under the top well sling behind the rear seat back on the right side. See Figure 1 for the hydraulic system and Figures 2 and 3 for the electrical system.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
