Manual Transmission/Transaxle
Manual Transmission/Transaxle

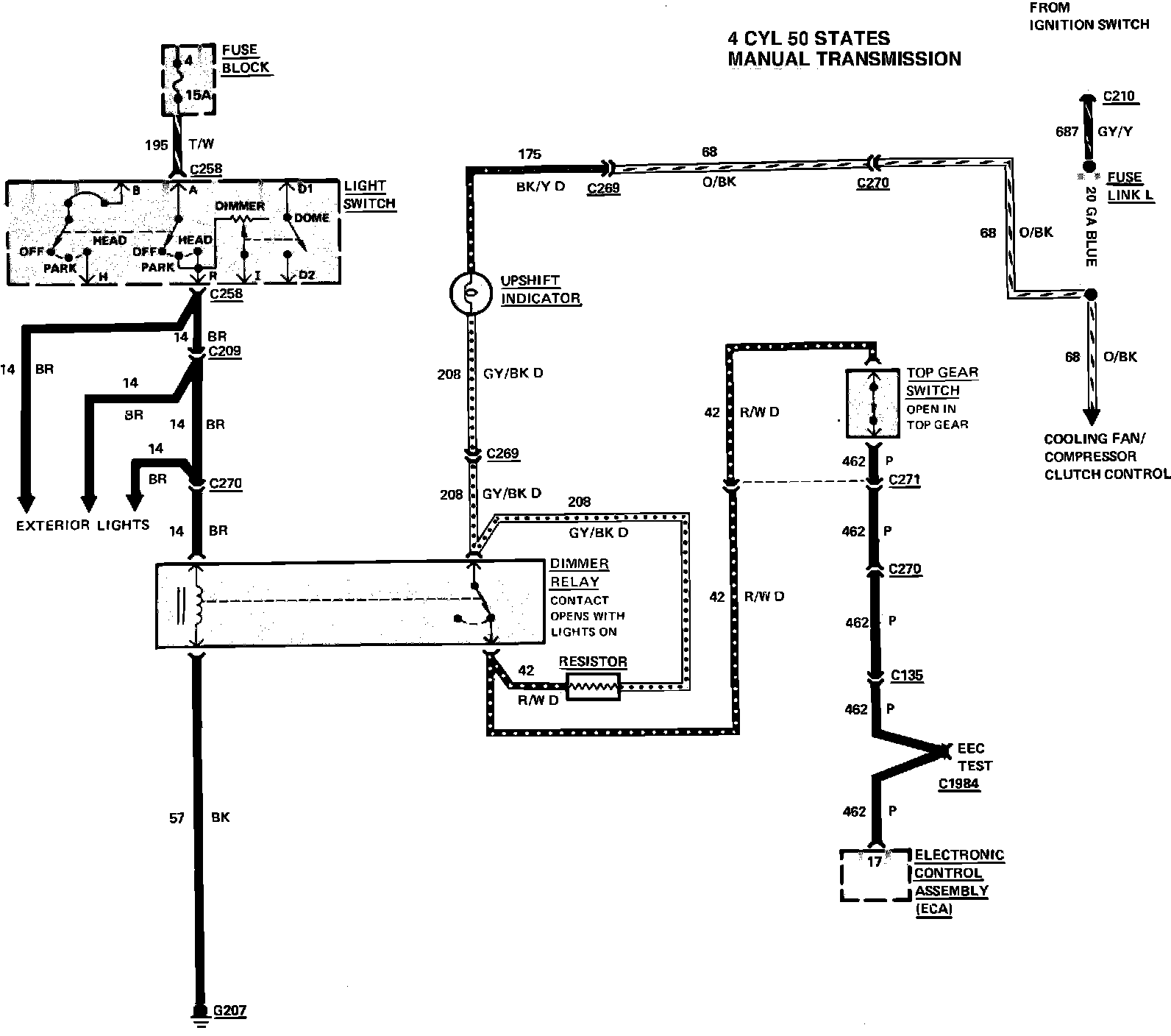

Fig. 69 Shift indicator wiring circuit. 1984 Capri & Mustang:
