Ash Tray Lamp/Cigar Lighter - Inoperative
Article No. 86-22-9CIGAR LIGHTER - INOPERATIVE - WIRE HARNESS CUT
LAMP - ASH TRAY INOPERATIVE - WIRE HARNESS CUT
FORD 1986-87 TAURUS
An inoperative cigar lighter or ash tray lamp may be caused by the 14401 wire harness being damaged by a flange located behind the ash tray. Use the following procedure to repair any damaged wires and cover the harness with a section of heater hose to prevent future damage.
1. Remove the radio and ash tray.
2. Repair the shorted wires as required.

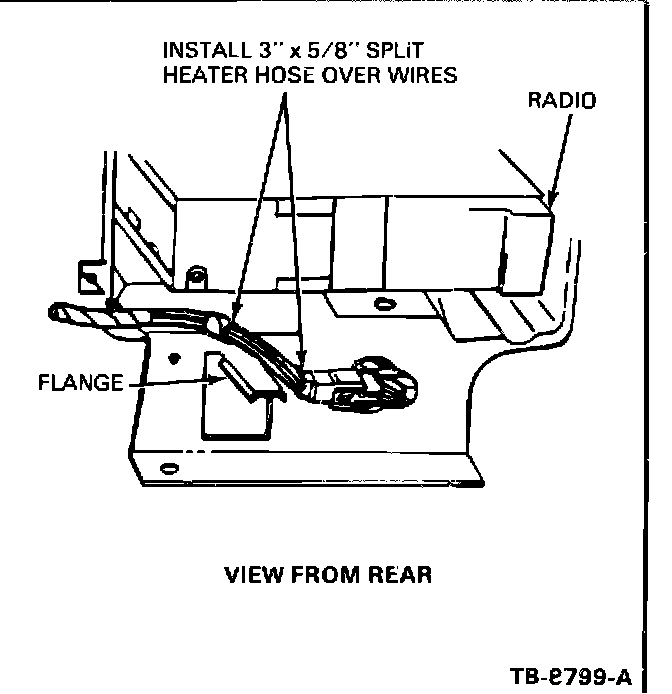

Figure 10:
3. Split a 3" x 5/8" I.D. heater hose and slip it over the wire harness as shown in Figure 10. Tape the heater hose into place with electrical tape.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: Reimbursable within the provisions of the Warranty and Policy Manual.
OPERATION: SP14401D86
TIME: 0.5 Hr. DLR. CODING: Basic Part No. 14401 - Code: 46
