Door Moulding - Peeling Away From Doors

Article No. 86-13-1


EXTERIOR TRIM - MOULDING - BODY SIDE PROTECTION - CURLS AWAY FROM DOORS


FORD 1986 TAURUS

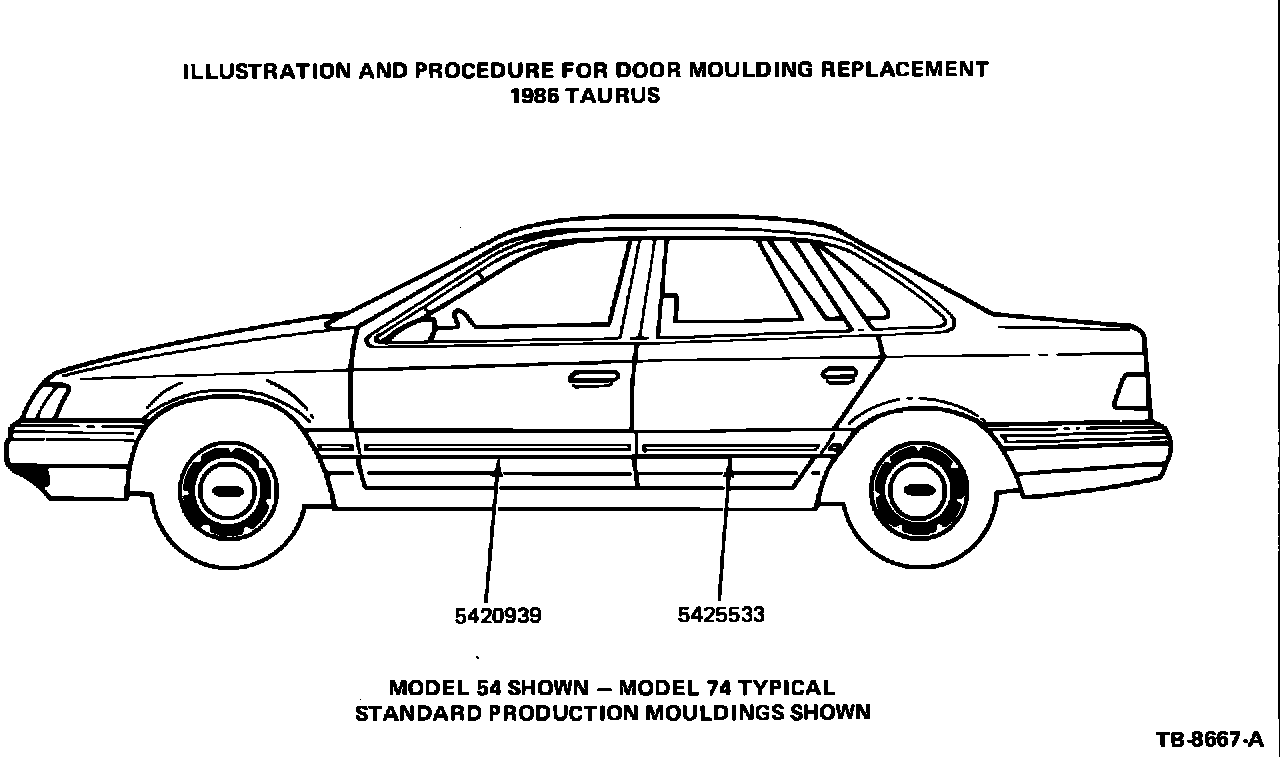

Figure 1:

Mouldings curl away and/or loose from the front or rear doors is caused by inadequate adhesive or moulding that is too long (3 mm) interfering with adjacent panels or other mouldings. To correct this condition, remove damaged moulding(s) and replace with new design level moulding(s), as shown in Figure 1.

1. Remove damaged moulding(s) and discard.

2. Clean excess adhesive or dirt (around moulding area) with isopropyl alcohol.

NOTE: Make sure the surface(s) is clean and dry. Work in a well ventilated area away from sparks or flame.

3. Remove protective backing from the new moulding(s) and heat the moulding(s) to 70~ +/- 10~ F. Heat the sheet metal where moulding is to be applied (door(s)) to 110~ +/- 10~F.

4. Align the moulding(s) to the door and press the moulding(s) firmly to the door, making sure there are no air pockets between the moulding(s) and the door(s) surface.

PART NUMBER PART NAME CLASS

E6DZ-5420938-CA Moulding Body Side B
Protection - Front Door (R.H.)
E6DZ-5425532-CA Moulding Body Side B
Protection - Rear Door (R.H.)
E6DZ-5420939-CA Moulding Body Side B
Protection - Front Door (L.H.)
E6DZ-5425533-CA Moulding Body Side B
Protection - Rear Door (L.H.)
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: Reimbursable within the provisions of the Warranty and Policy Manual.
OPERATION: SP20780A86 - One moulding
TIME: 0.4 Hr.
OPERATION: SP20780B86 - Two mouldings
TIME: 0.6 Hr.
OPERATION: SP20780C86 - Three mouldings
TIME: 0.8 Hr.
OPERATION: SP20780D86 - Four mouldings
TIME: 1.0 Hr. DLR. CODING: Basic Part No. 7020938 - Code: 03, 89
