Fuel Delivery System Diagnosis Test - Revised

90ford32

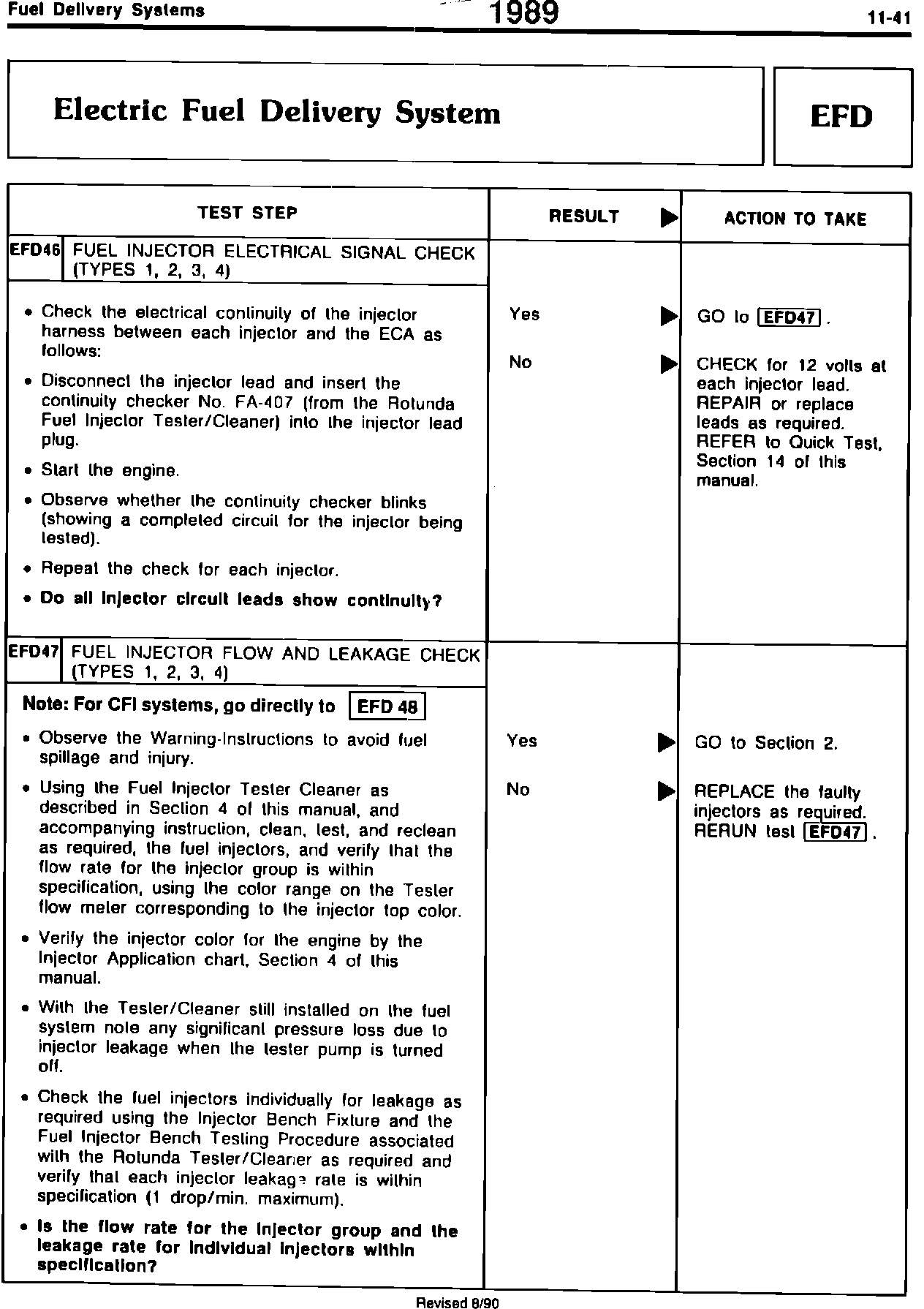

^ ENGINE/EMISSIONS DIAGNOSIS SHOP MANUAL - 1989 - PAGE 11-41 - FUEL DELIVERY SYSTEM DIAGNOSIS TEST REVISED

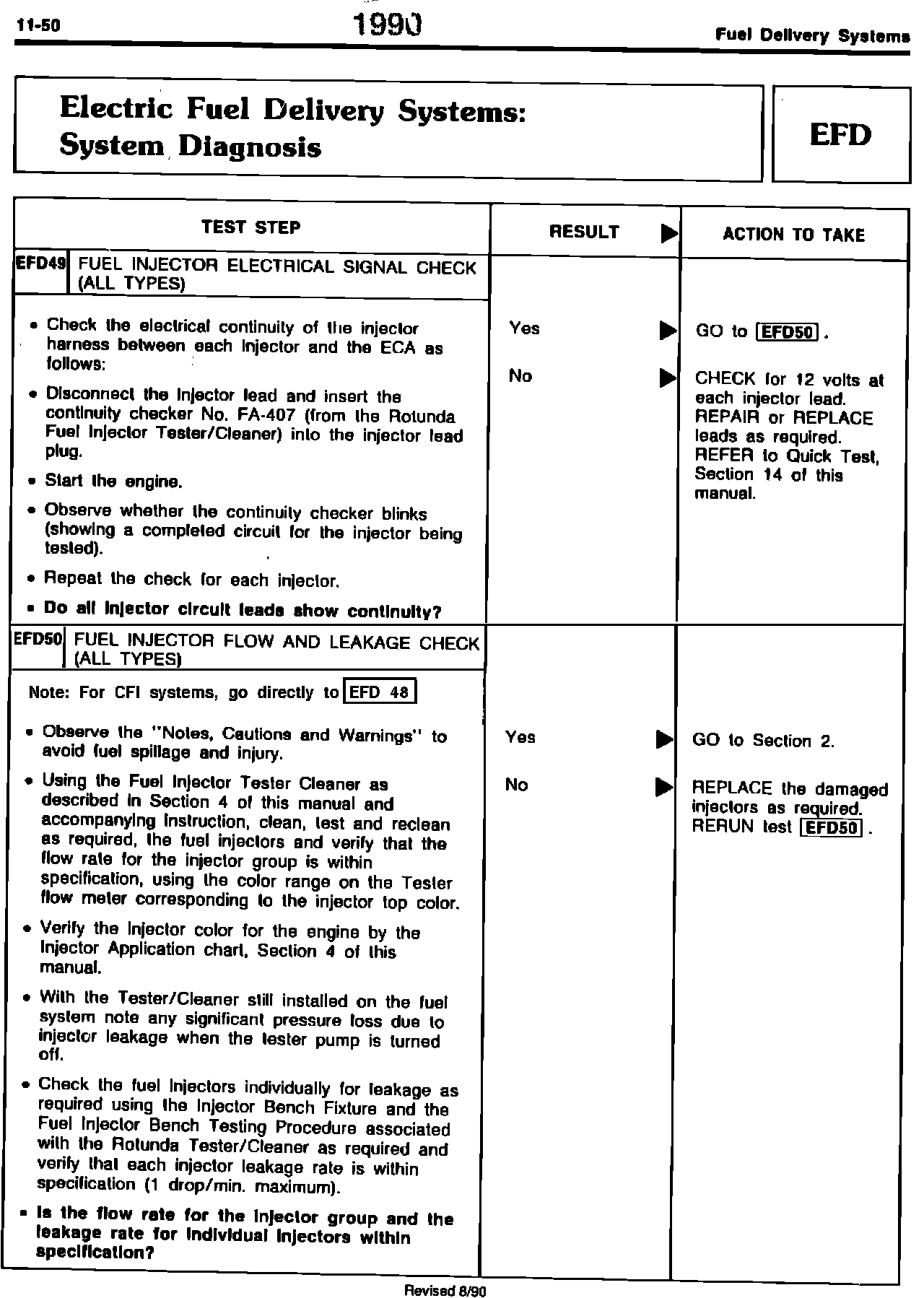

^ ENGINE/EMISSIONS DIAGNOSIS SHOP MANUAL - 1990 - PAGE 11-50 - FUEL DELIVERY SYSTEM DIAGNOSIS TEST REVISED
Article No. 90-18B-20












FORD: 1989-90 ESCORT, TAURUS


ISSUE: The Electric Fuel Delivery System diagnostics in the 1989 and 1990 Engine/Emissions Diagnosis Shop Manual have been revised for CFI systems.

ACTION: Refer to the pages following this TSB article for the revised information.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 490000
