Home
>>
Ford
>>
1989
>>
Tempo AWD L4-140 2.3L HSC (VIN X)
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
Emission Control Systems

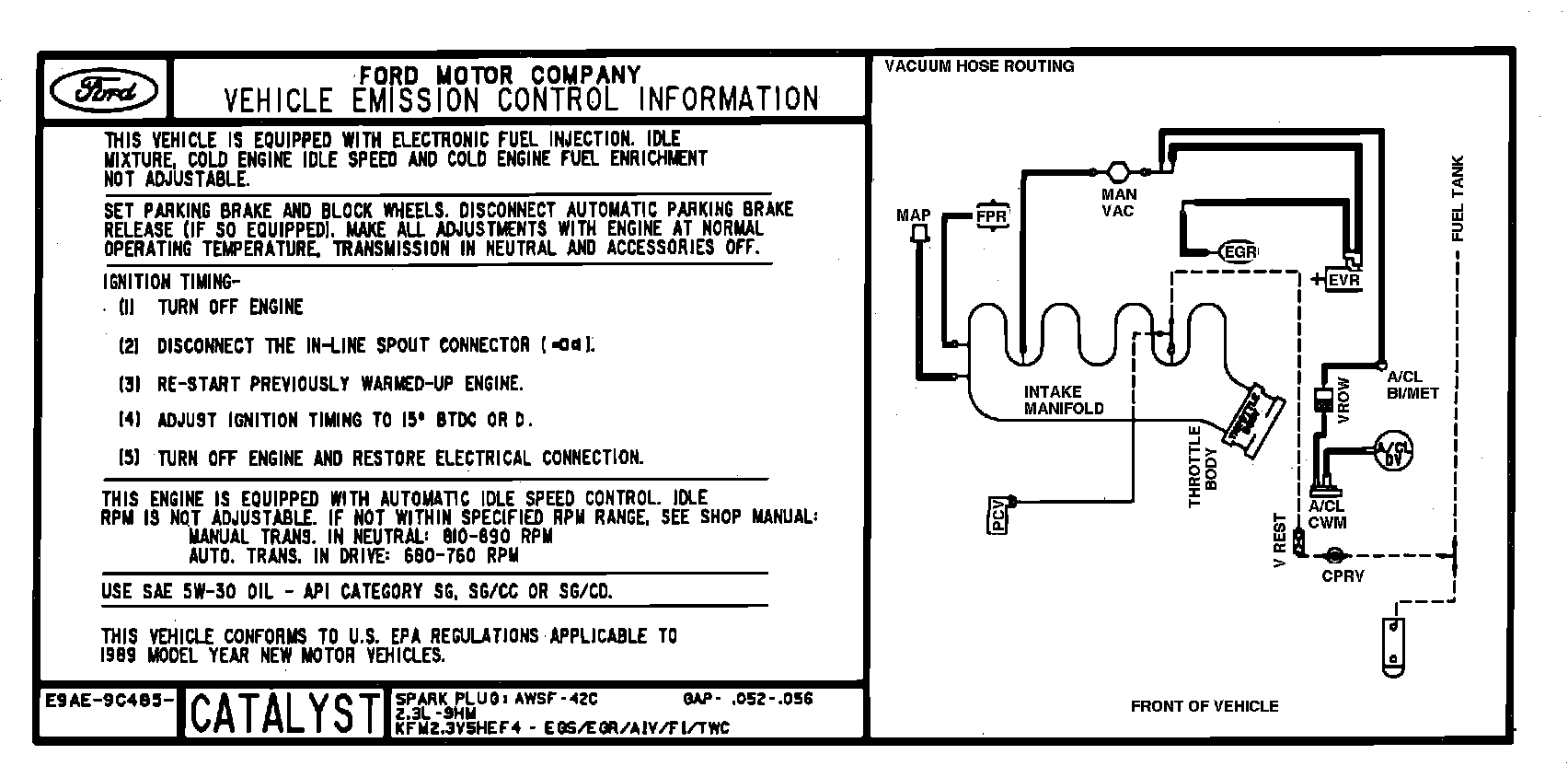

Fig. 6 Calib. Codes 8-25C-R00, 8-25F-R00, 8-26D-R10, 8-26E-R00 & 8-26T-R10:
