Home >> Ford >> 1989 >> Tempo AWD L4-140 2.3L HSC (VIN X) >> Repair and Diagnosis >> Power and Ground Distribution >> Electronic Noise Suppressor >> Locations

Electronic Noise Suppressor: Locations

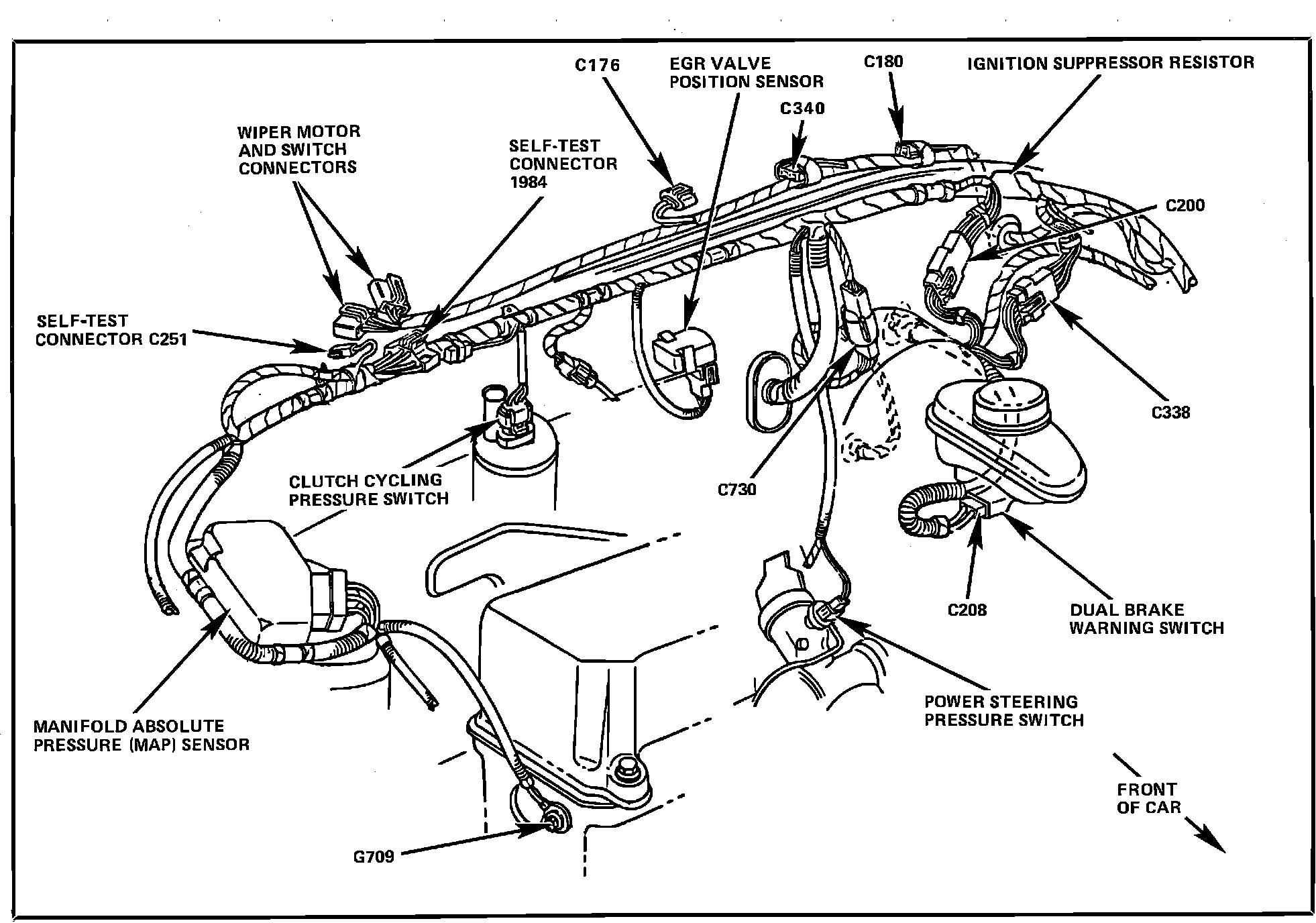

Component Locations - Rear Of Engine Compartment:
