Wipers Inoperative or Erratic
Wipers Inoperative or Erratic

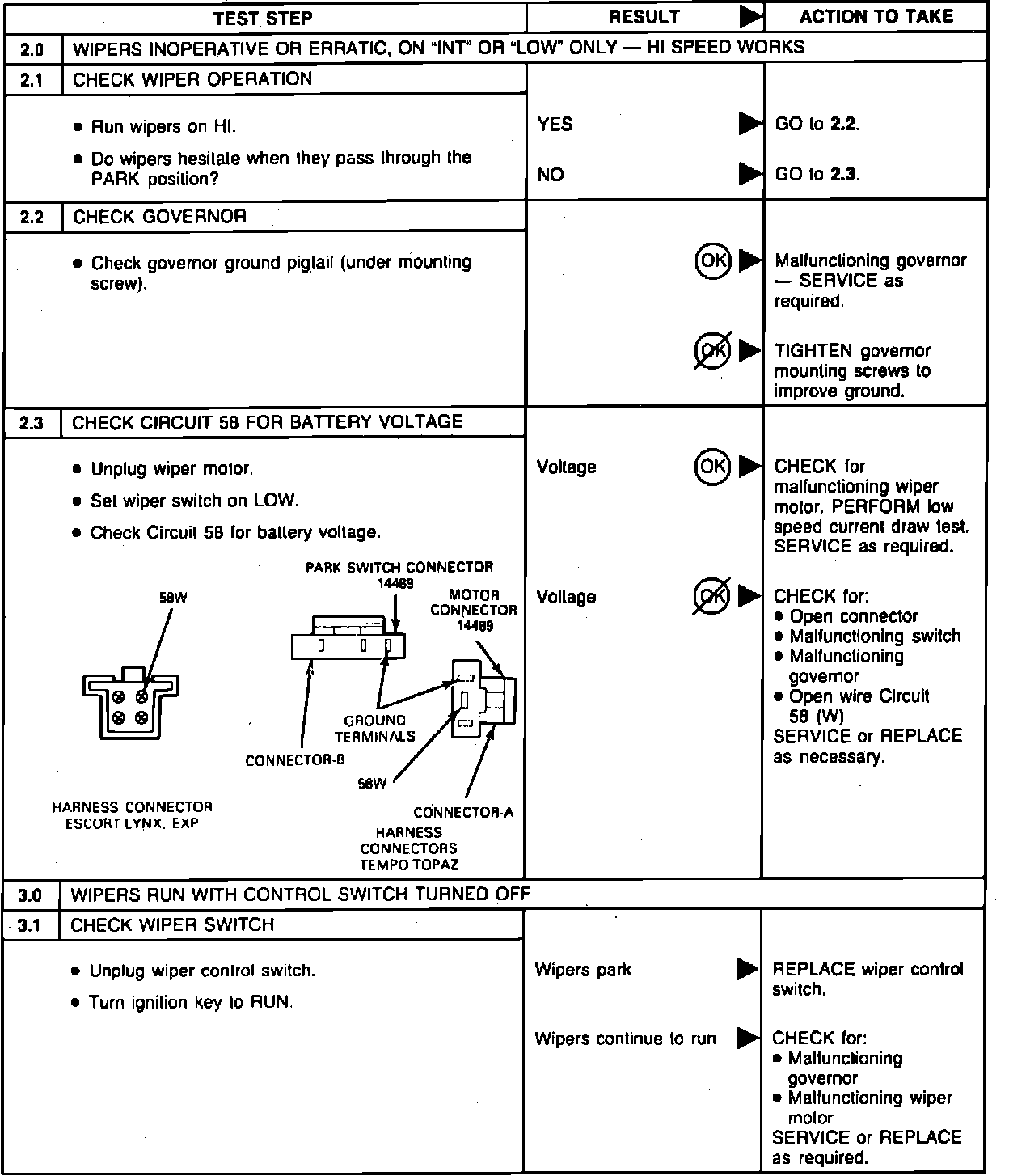

Fig. 4 Wiper System Diagnosis (Part 2 Of 3):
