Blower Motor: Service and Repair

1. Disconnect battery ground cable.
2. Squeeze sides of glove compartment together to disengage tabs and pivot glove compartment down.
3. Remove blower motor cooling hose.

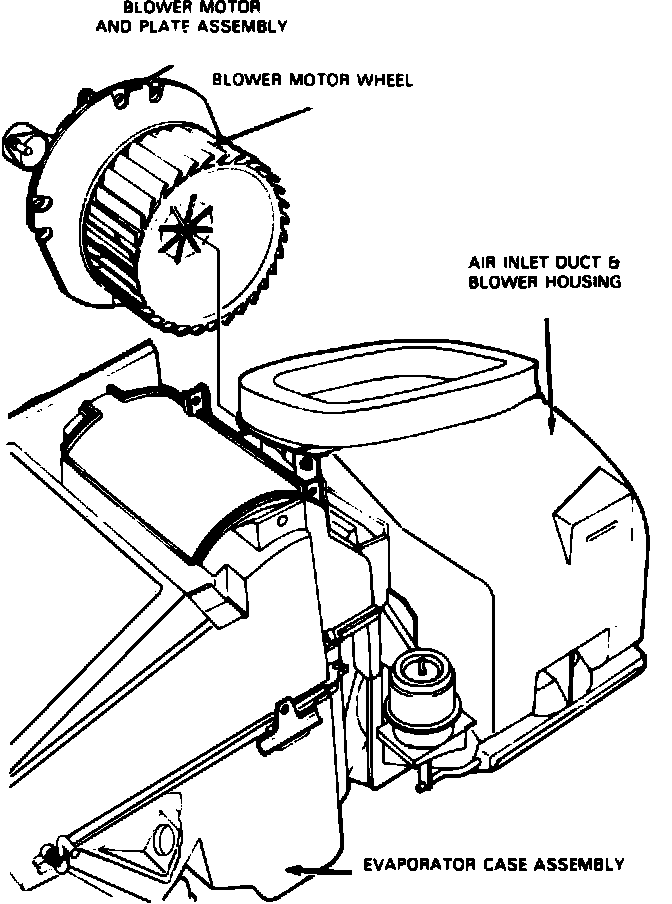

Fig. 32 Blower motor & wheel assembly removal:

4. Disconnect blower motor electrical connector, then remove blower motor attaching screws and the motor, Fig. 32.
5. Reverse procedure to install.
