Clutch Switches/Locations - Manual Update
>>

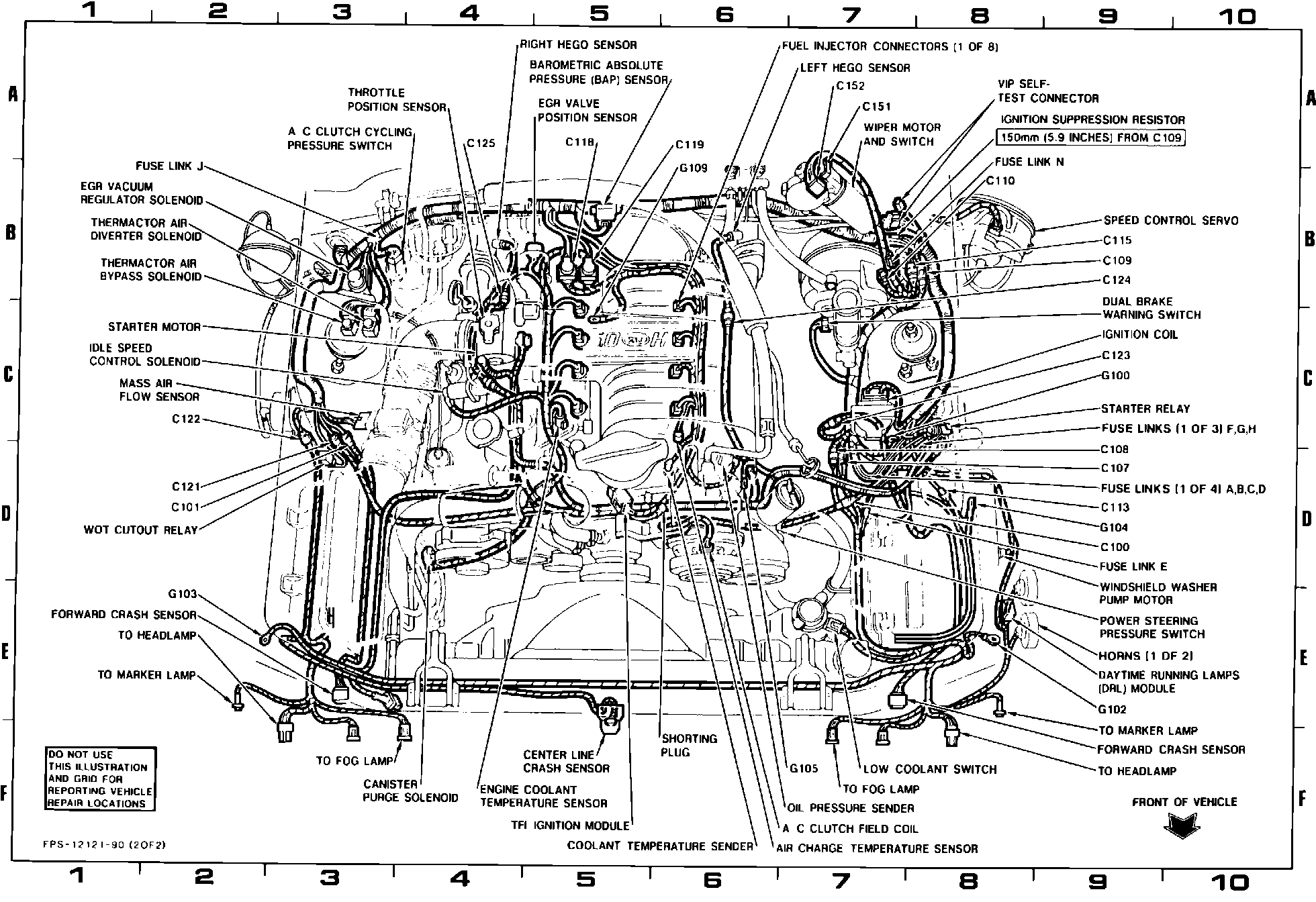

Component Location Views 5.0L Engine
Component Location Views 5.0L Engine
5.0L Engine:
1990 COMPONENT LOCATION VIEWS
