CC15: Check CCPS Operation
CC15: Check CCPS Operation

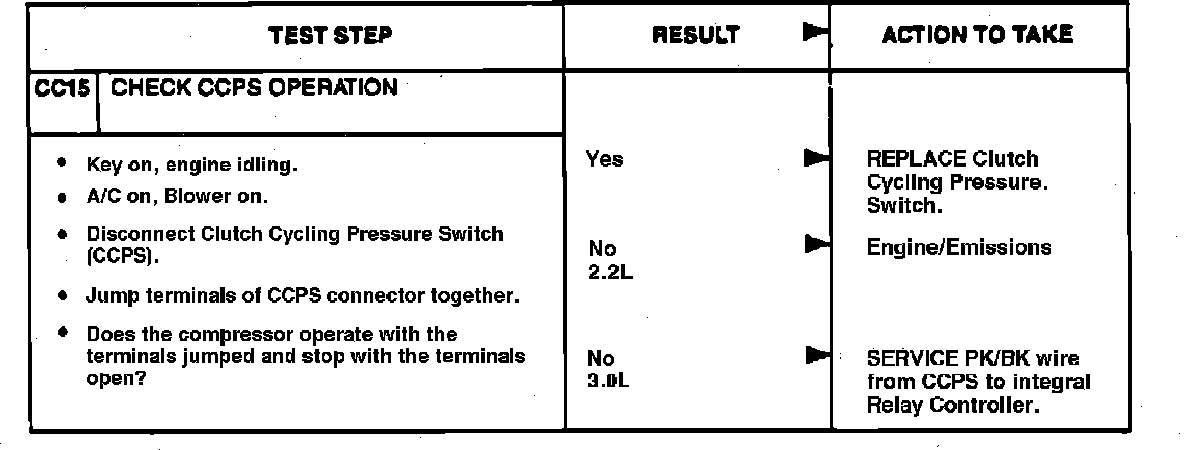

Fig. 59 Compressor clutch diagnosis (Tests CC15):
