Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1990
>>
Probe V6-182 3.0L
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Wiper and Washer Systems
>>
Wiper Switch
>>
Diagrams
>>
Electrical Diagrams
>>
Rear
Rear

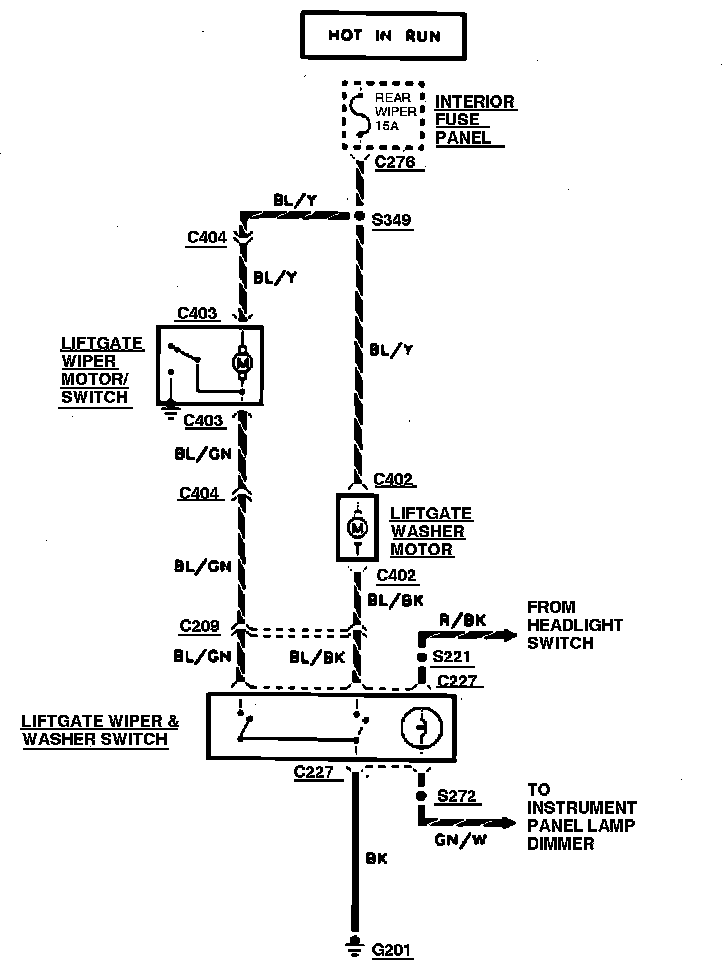

Wiper & Washer - Rear:
