Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G100 >> GT Models >> Part 2 of 2

Part 2 of 2

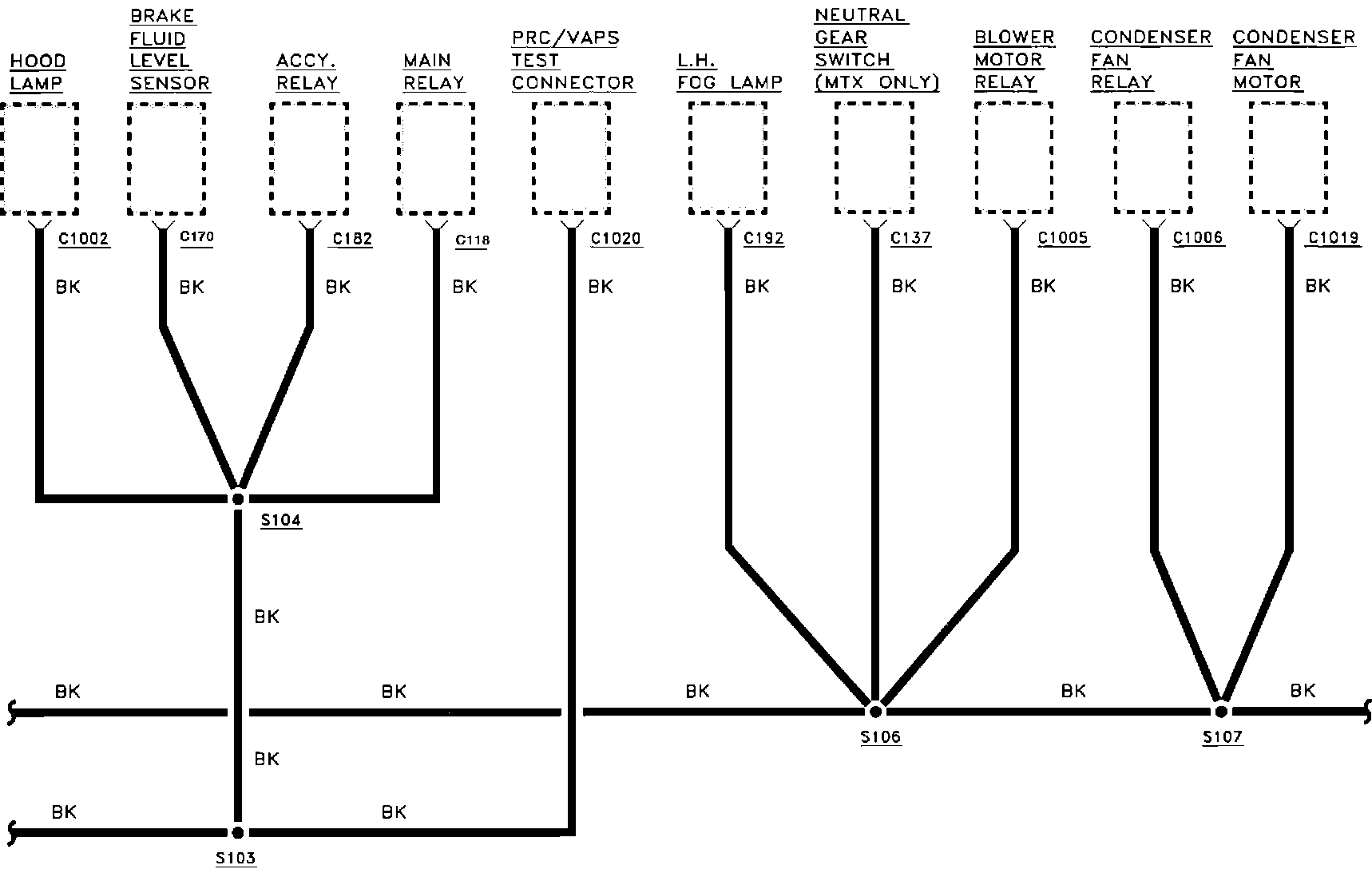

G100 - GT Models:
