Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G102 & G103 - GL Models

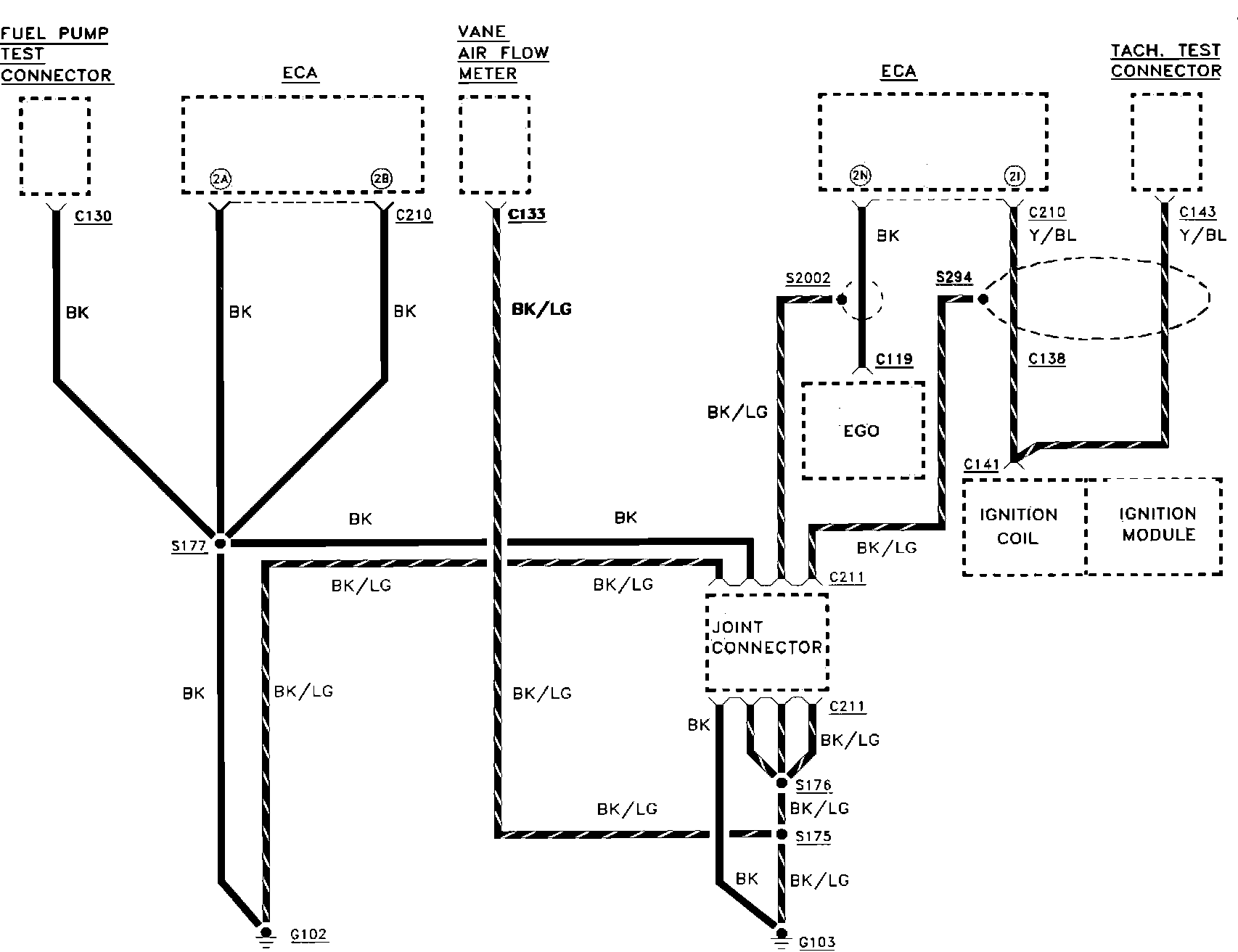

G102 & G103 - GL Models

G102 & G103 - GL Models:
