Home >> Ford >> 1990 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G201 >> LX Models >> Part 2 of 3 - Analog

Part 2 of 3 - Analog

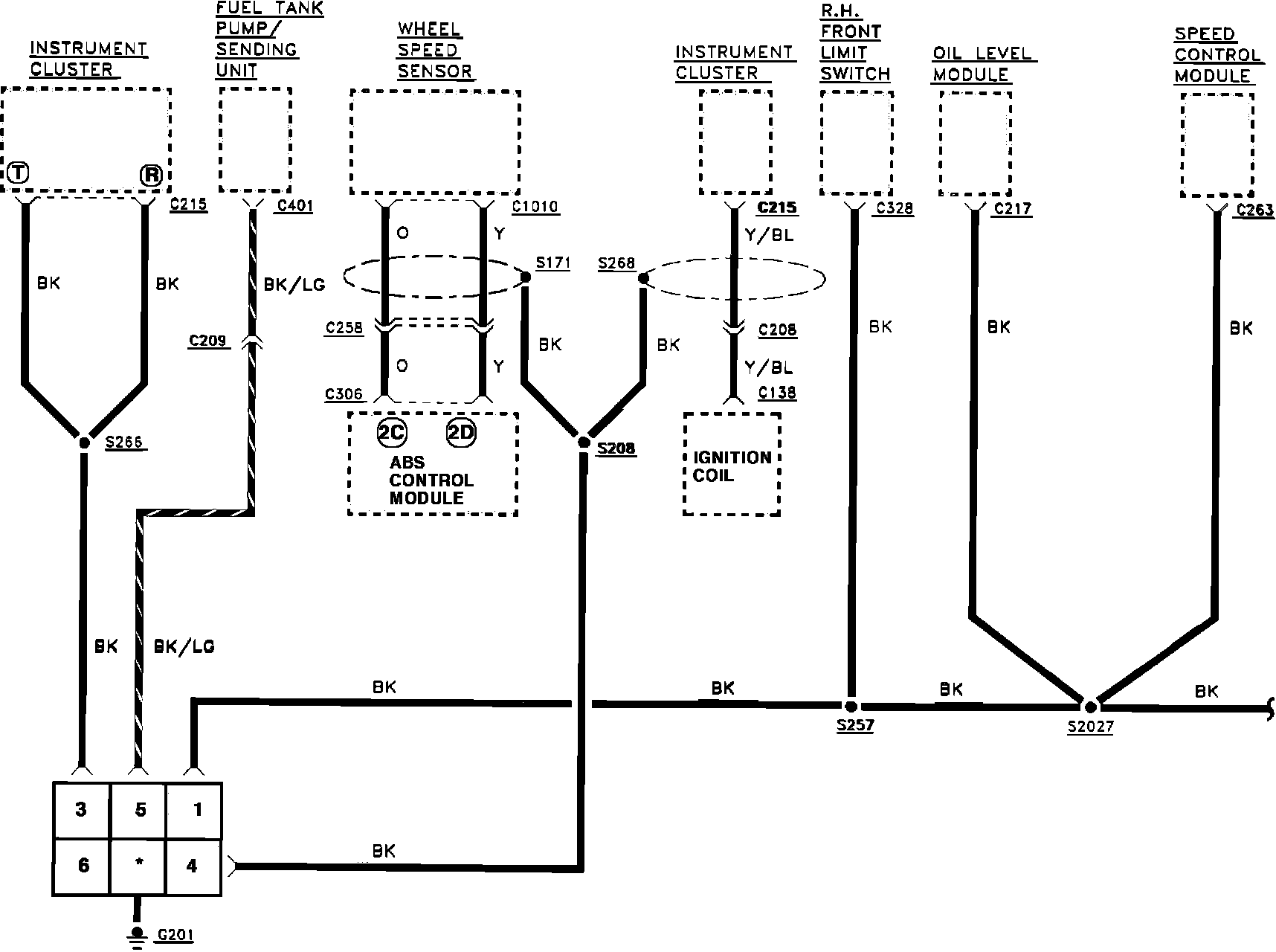

G201 - LX Models:
