Home
>>
Ford
>>
1990
>>
Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Temperature Sensor (Gauge)
>>
Locations

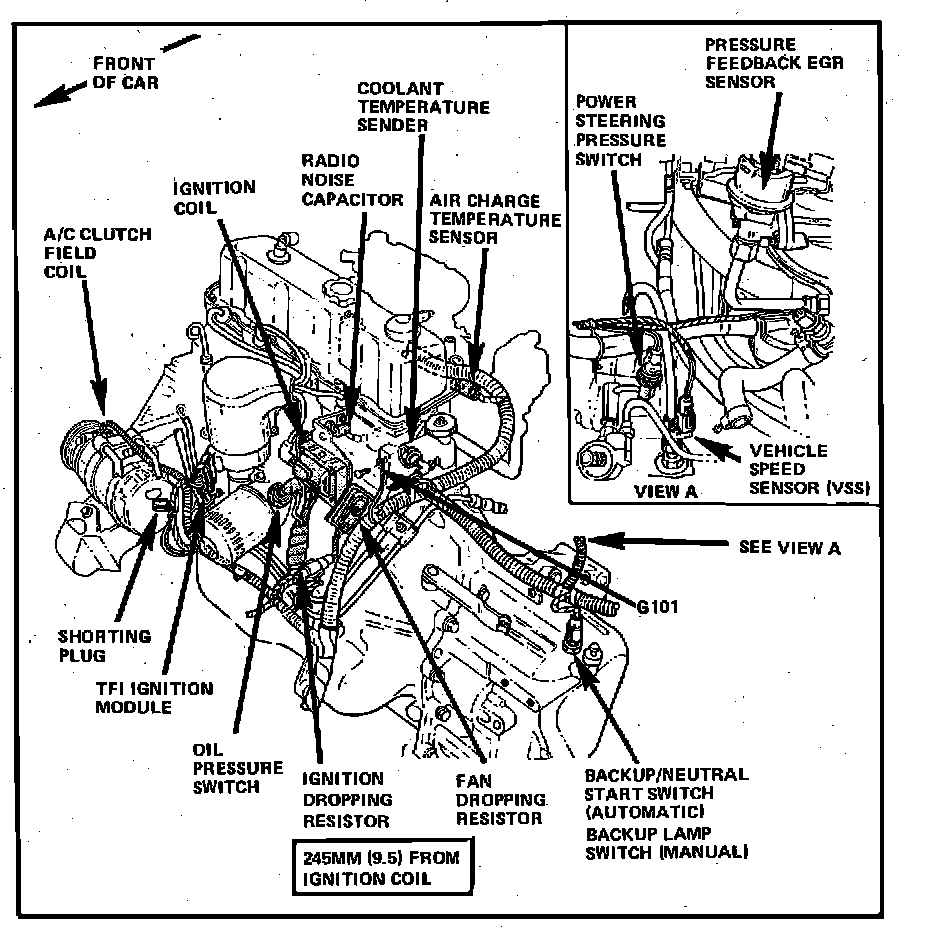

Temperature Sensor (Gauge): Locations
LH Side Of Engine Compartment.:
Top LH Side Of Engine
Applicable to: 4-153/2.5L
