Fuel Pressure - Specifications Revision

Article No.
91-11B-27

06/14/91

^ ENGINE/EMISSIONS DIAGNOSIS MANUAL - 1989 - PAGES 11-14 AND 17-185 - FUEL PRESSURE SPECIFICATIONS REVISED

^ ENGINE/EMISSIONS DIAGNOSIS MANUAL - 1990 - PAGES 11-22 AND 17-204 - FUEL PRESSURE SPECIFICATIONS REVISED



FORD:
1989-90 TAURUS

Pinpoint Test H:

ISSUE:

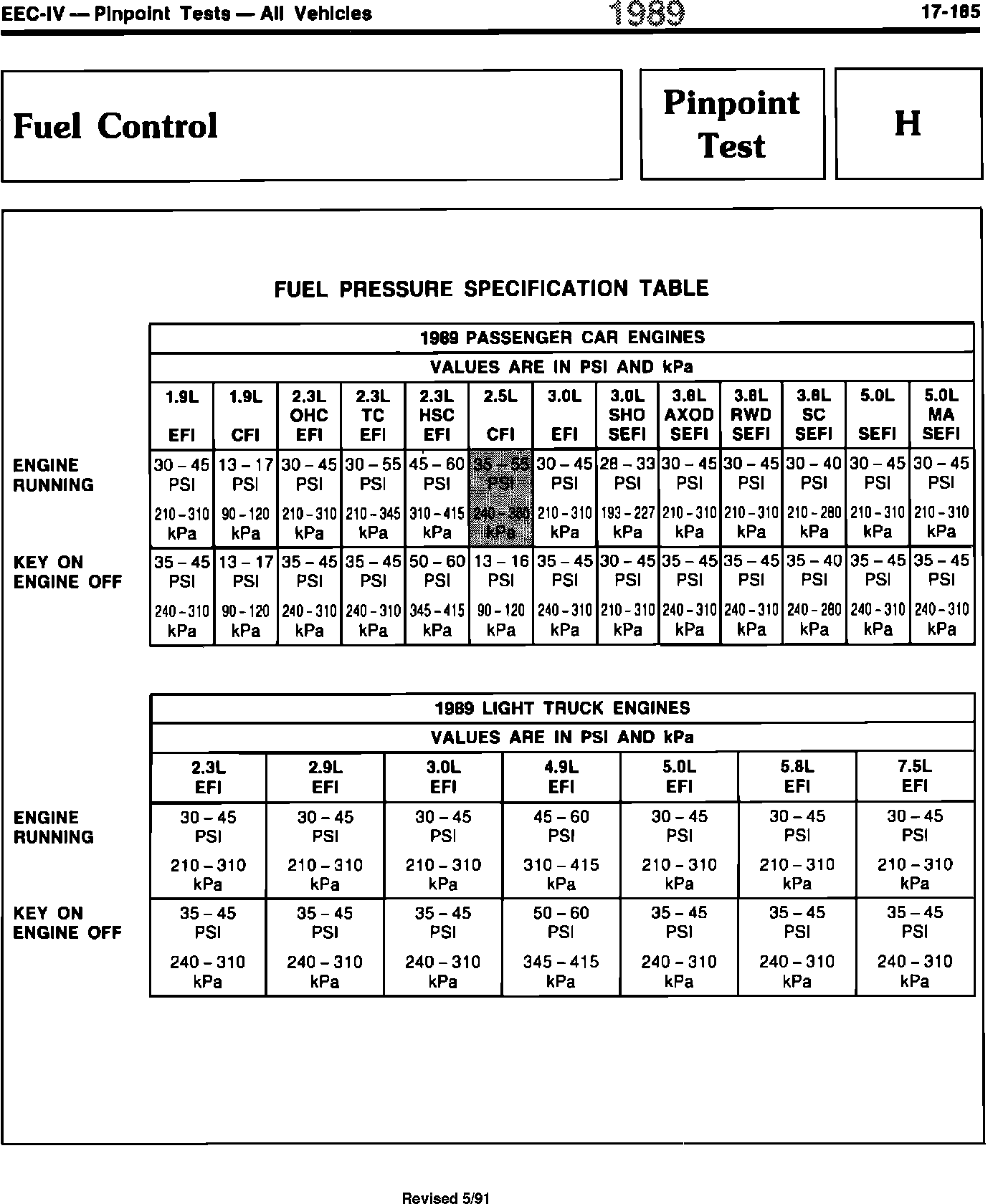

Fuel Pressure Specifications for 2.5L CFI Engines have been revised in the 1989 Engine/Emissions Diagngsis Manual, Pages 11-14 and 17-186, and the 1990 Engine/Emissions Diagnosis Manual, Pages 11-22 and 17-204.

ACTION:
Refer to the pages in this TSB article for the revised specifications.



OTHER APPLICABLE ARTICLES:
NONE

WARRANTY STATUS:
INFORMATION ONLY

OASIS CODES:
690000
