VECI Label - Incorrect Spark Plug Information

90ford08

Article No. 90-8-10

^ EMISSION - VEHICLE EMISSION CONTROL INFORMATION (VECI) DECAL - 3.0L SHO - INCORRECT SPARK PLUG INFORMATION - VEHICLES BUILT BEFORE
1/25/90

^ SPARK PLUG - INCORRECT INFORMATION ON VEHICLE EMISSION CONTROL INFORMATION (VECI) DECAL - 3.0L SHO - VEHICLES BUILT BEFORE 1/25/90

FORD: 1990 TAURUS SHO


CALIBRATION: 9-09C-R10, 9-00P-R10

WARNING: THIS MODIFICATION IS AUTHORIZED ONLY FOR THE LISTED ENGINE. PERFORMING THIS MODIFICATION ON OTHER ENGINE CALIBRATIONS IS UNAUTHORIZED AND COULD CREATE LIABILITY UNDER APPLICABLE FEDERAL OR LOCAL LAWS.

ISSUE: The Vehicle Emission Control Information (VECI) decals list the incorrect spark plug information. The affected VECI decals are:

^ FOAE-9C485-DJV

^ FOAE-9C485-DGL

^ FOAE-9C485-DLH

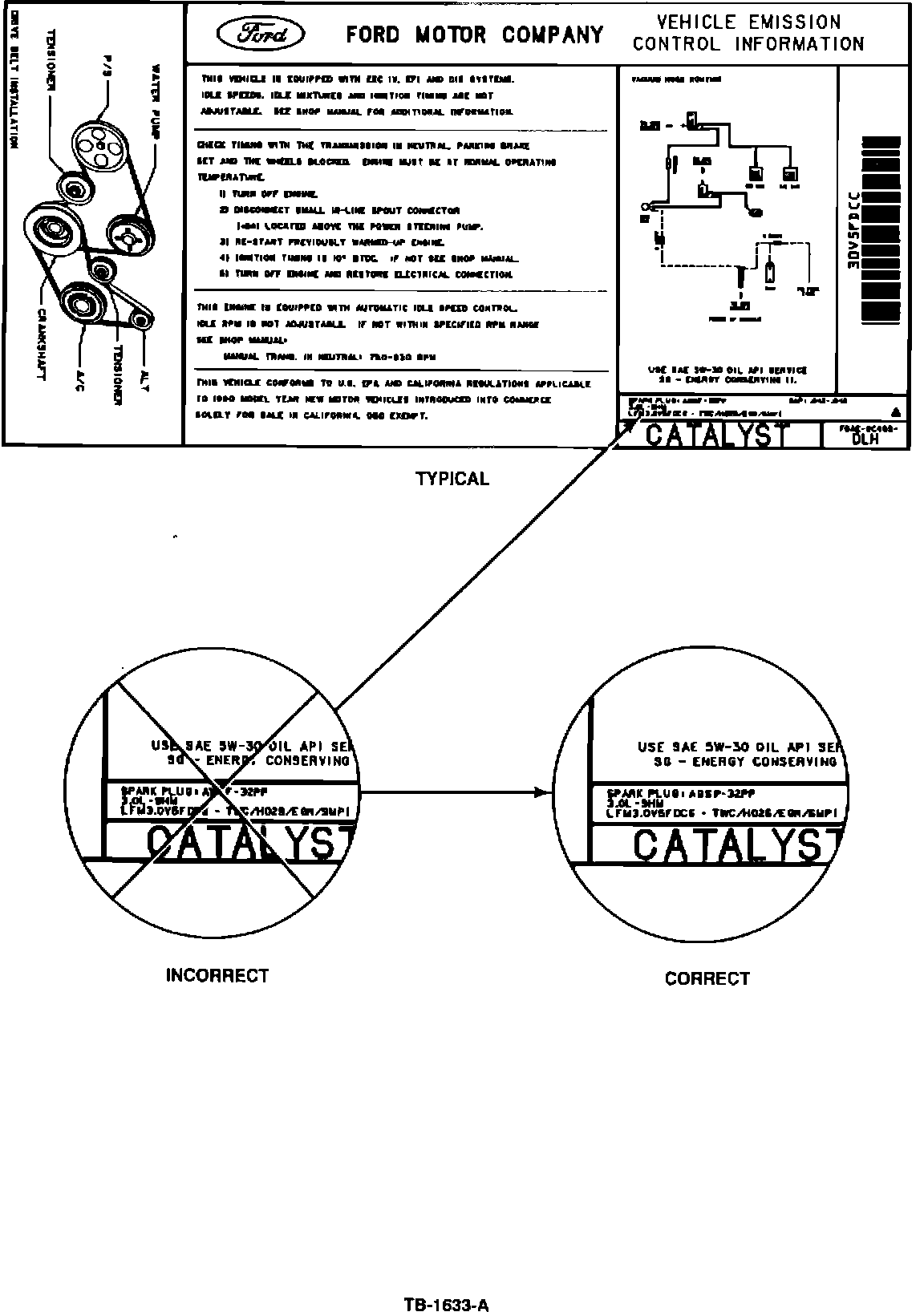

Figure 1:

ACTION: If the VECI decal incorrectly lists spark plug AWSF-32PP, modify the VECI decal with a sharpie pen to indicate AGSP-32PP spark plugs, Figure 1.

NOTE: THE CORRECT SPARK PLUG INFORMATION IS PUBLISHED IN THE OWNER GUIDE, SHOP MANUAL, SERVICE PARTS LIST, ETC. THE CORRECT SPARK PLUGS WERE INSTALLED AT THE TIME OF ASSEMBLY.

Although the specified AWSF-32PP spark plugs do not exist, installation of AWSF type spark plugs could retard real engine timing.

PART NUMBER PART NAME CLASS

AGSP-32PP Spark Plugs B

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: Eligible Under Basic Warranty Coverage
OPERATION DESCRIPTION TIME
900810A Modify VECI Decal 0.2 Hr.
DEALER CODING
BASIC PART NO. CONDITION CODE
6EO72 59
OASIS CODES: 4700, 4800
