Brakes - Vibration/Pulsation During Brake Application

Article No.
94-13-3

06/29/94

^ BRAKES - VIBRATION DURING BRAKE APPLICATION - "SHO" AND POLICE MODELS ONLY

^ VIBRATION - DURING BRAKE APPLICATION - "SHO" AND POLICE MODELS ONLY

FORD:
1989-93 TAURUS SHO

ISSUE:
Brake roughness, pulsation and steering wheel shudder may occur during brake application. This may be due to disc brake rotor thickness variation or to lining material transfer (the non-uniform trace transfer of lining material to the rotor, producing a slip/stick condition).

ACTION:
Use Rotunda on-vehicle brake lathes to service vehicles with brake roughness, per TSB 93-13-3. This repair method is more effective than "off-car" brake rotor turning because it allows the steering knuckle to serve as a pilot for the rotor, resulting in improved runout.

If on-vehicle brake rotor turning equipment is not available, replace the front brake rotors. Replace the front brake lining with an improved lining kit. Refer to the appropriate 1989-93 Taurus/Sable Service Manual for removal and installation procedures.

NOTE:
AFTER REPLACING THE ROTORS AND LININGS, IT IS VERY IMPORTANT THAT THE CUSTOMER LIMITS BRAKING TO MEDIUM-TO-LIGHT STOPS FOR THE FIRST 200 MILES AS DESCRIBED IN THE OWNER MANUAL. THIS WILL GREATLY REDUCE THE OPPORTUNITY FOR LINING TRANSFER.

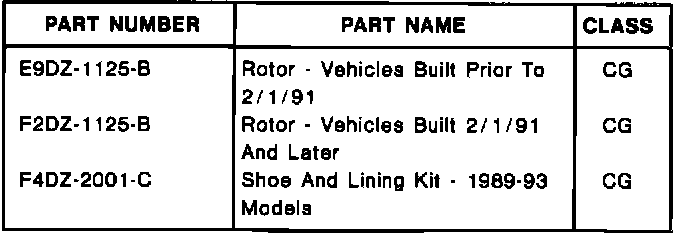

Parts Block

OTHER APPLICABLE ARTICLES: 93-13-3
WARRANTY STATUS:
Eligible Under The Provisions Of Bumper To Bumper Warranty Coverage For 1992/93 Vehicles, Basic Warranty Coverage For All Other Models

OPERATION DESCRIPTION TIME
941303A Replace Front Brake Pads 1.4 Hrs.
And Rotors

DEALER CODING
BASIC PART NO. CONDITION CODE
1125 13

OASIS CODES: 301000, 702100, 703400
