Washer Fluid Level Indicator
Washer Fluid Level Indicator

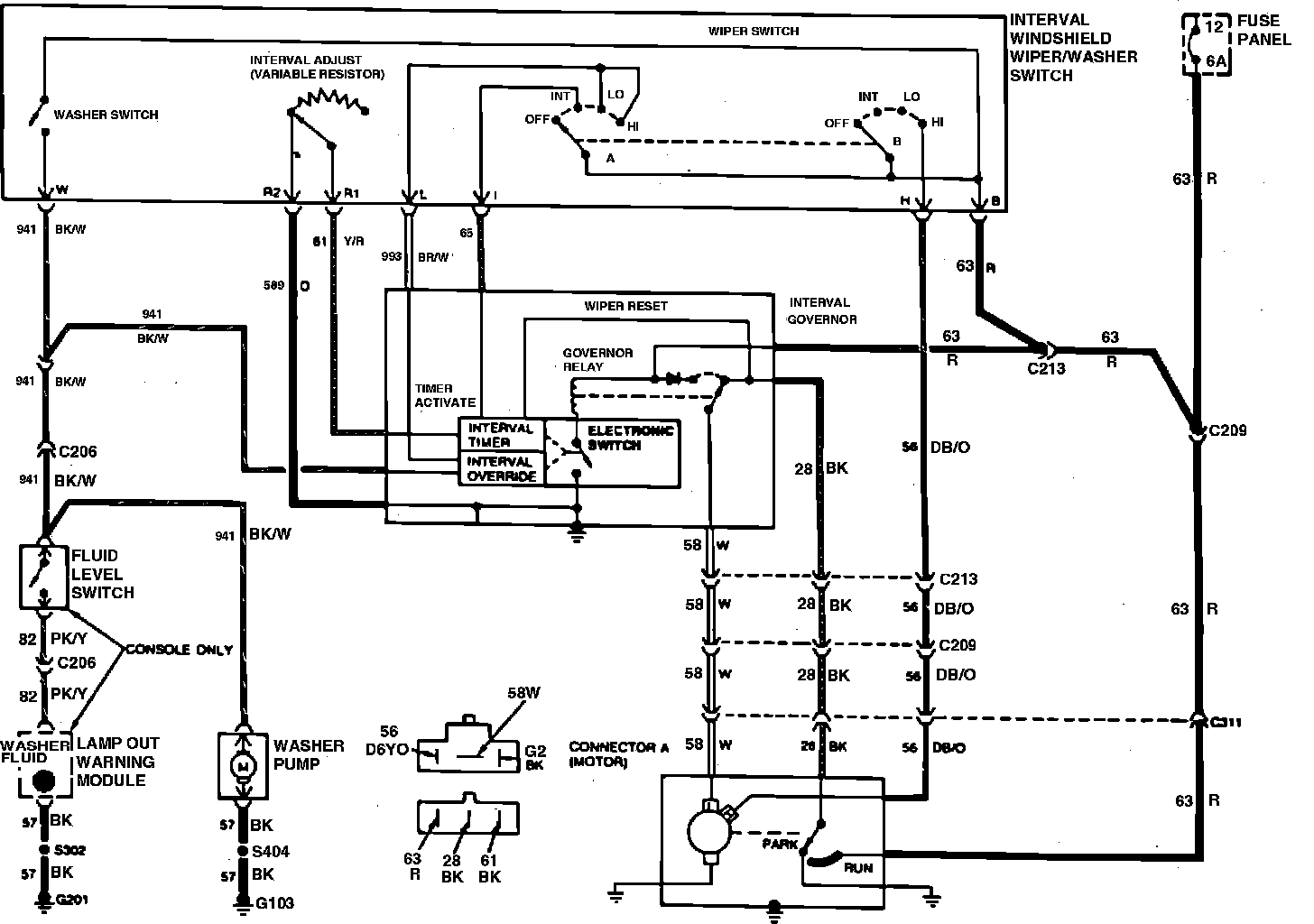

Fig. 8 Wiper System Wiring Schematic (Intermittent):
