Computers and Control Systems: Locations

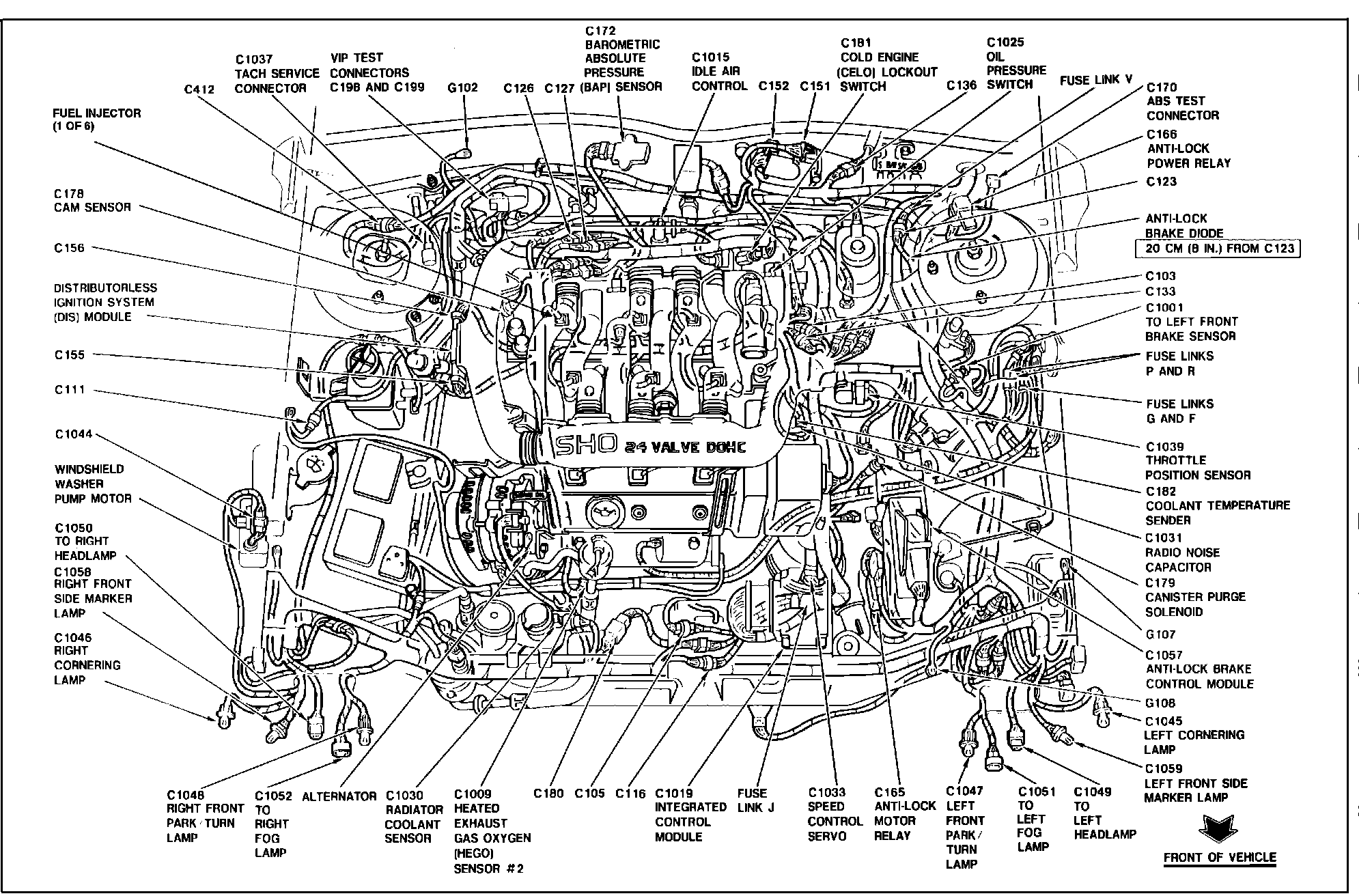

Engine Compartment View:

ABS TEST CONNECTOR
ANTI-LOCK BRAKE CONTROL MODULE
ANTI-LOCK BRAKE DIODE
ANTI-LOCK MOTOR RELAY
ANTI-LOCK POWER RELAY
BAROMETRIC ABSOLUTE PRESSURE (BAP) SENSOR
CAM SENSOR
CANISTER PURGE SOLENOID
COLD ENGINE LOCKOUT (CELO) SWITCH
COOLANT TEMPERATURE SENDER
DISTRIBUTORLESS IGNITION SYSTEM (DIS) MODULE
FUEL INJECTORS
HEATED EXHAUST GAS OXYGEN (HEGO) SENSOR
IDLE AIR CONTROL
INTEGRATED RELAY CONTROL MODULE
OIL PRESSURE SWITCH
RADIATOR COOLANT SENSOR
RADIO NOISE CAPACITOR
TACH SERVICE CONNECTOR
THROTTLE POSITION SENSOR
VIP (DIAGNOSTIC) CONNECTOR

Engine Compartment View:

A/C CLUTCH CYCLING SWITCH
AIR BAG REAR SENSOR
AIR CHARGE TEMPERATURE (ACT) SENSOR
AMBIENT TEMPERATURE SENSOR
BACKUP LIGHT SWITCH
BRAKE FLUID LEVEL SENSOR
CENTER LINE FORWARD CRASH SENSOR
DAYTIME RUNNING LAMPS (DRL) MODULE
EGR VACUUM REGULATOR (EVR) SOLENOID
ELECTRONIC ENGINE CONTROL MODULE (ECA)
IDLE SPEED CONTROL SOLENOID
IGNITION COIL
KNOCK SENSOR
LEFT FORWARD CRASH SENSOR
LOW OIL LEVEL SWITCH
MASS AIR FLOW (MAF) SENSOR
POWER STEERING PRESSURE SWITCH
PRESSURE FEEDBACK EGR SENSOR
RIGHT FORWARD CRASH SENSOR
SPOUT CHECK CONNECTOR #2
VEHICLE SPEED SENSOR
