DL - PFE/DPFE Sensor; EVR Solenoid Testing
>>
DL27 - Check PFE and SIG RTN Harness Circuit Continuity
DL27 - Check PFE and SIG RTN Harness Circuit Continuity

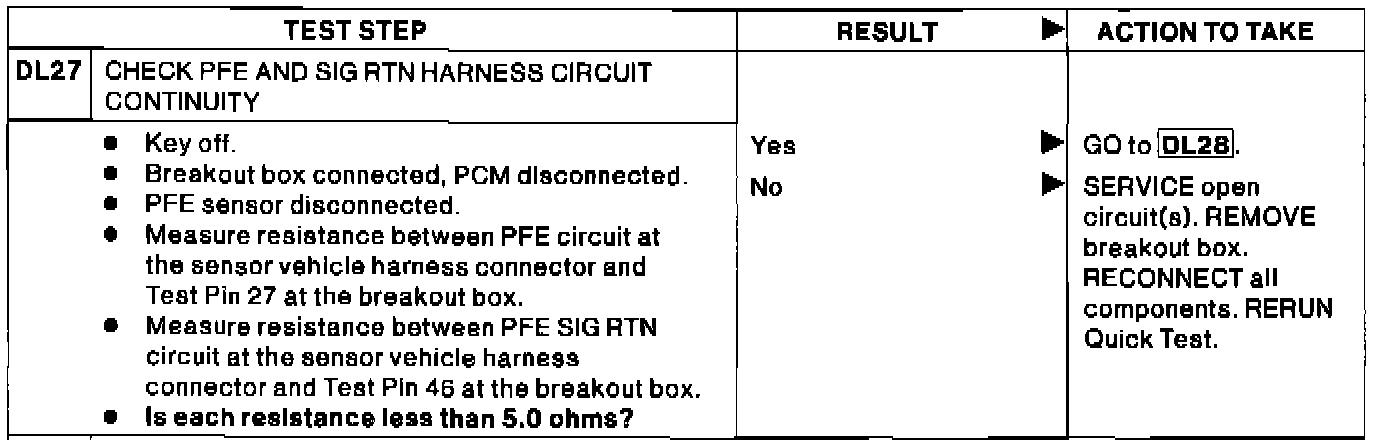

Pinpoint Test DL27:
