HB - Flexible Fuel (FF) Control
>>
HB23 - Check Continuous Monitor Diagnostic Test Mode (DTM)
HB23 - Check Continuous Monitor Diagnostic Test Mode (DTM)

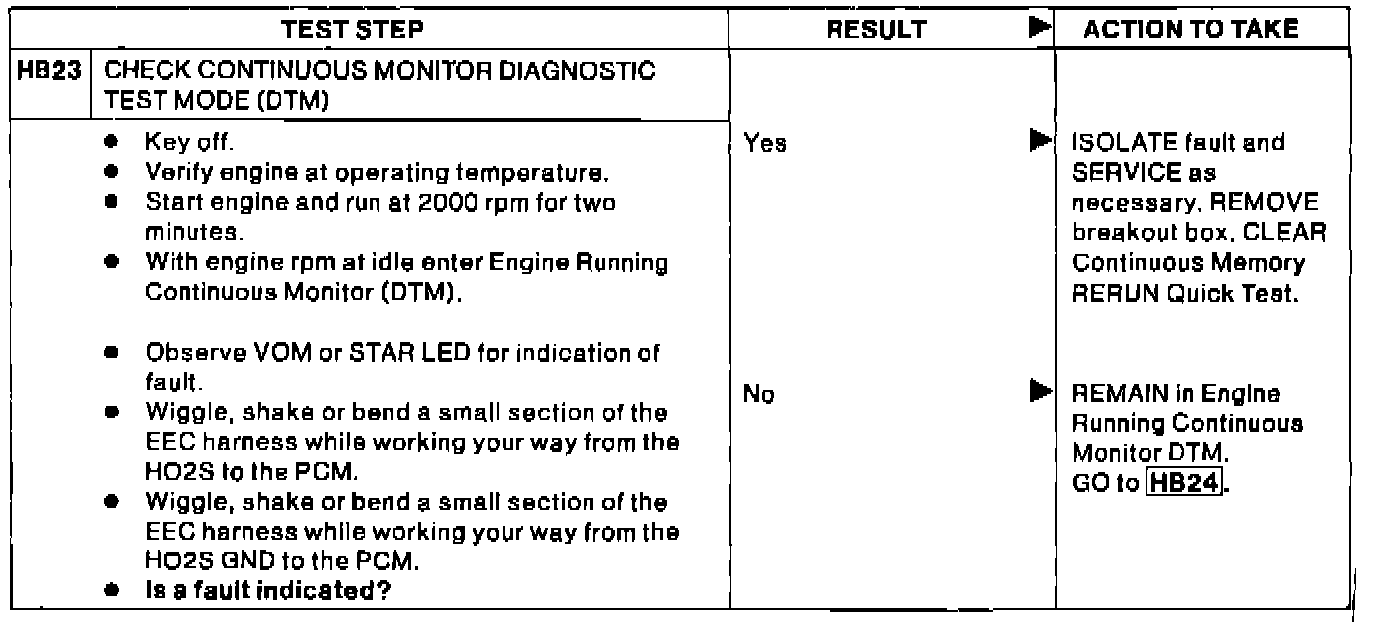

Pinpoint Test HB23:
