Home
>>
Ford
>>
1993
>>
Taurus V6-182 3.0L VIN 1 FI Flex Fuel
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
X - Constant Control Relay Module (CCRM)
>>

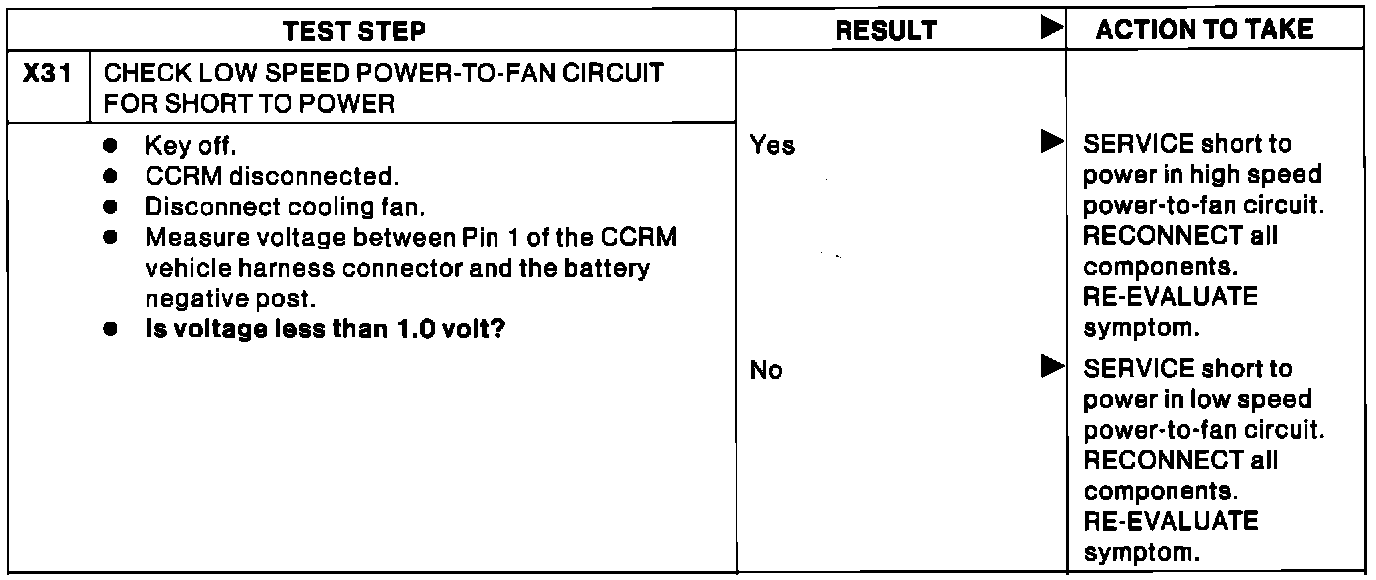

X31 - Check Low Speed Power to Fan Circuit For Short to Power
X31 - Check Low Speed Power to Fan Circuit For Short to Power
Pinpoint Test X31:
