Accessories Mounting Inspection

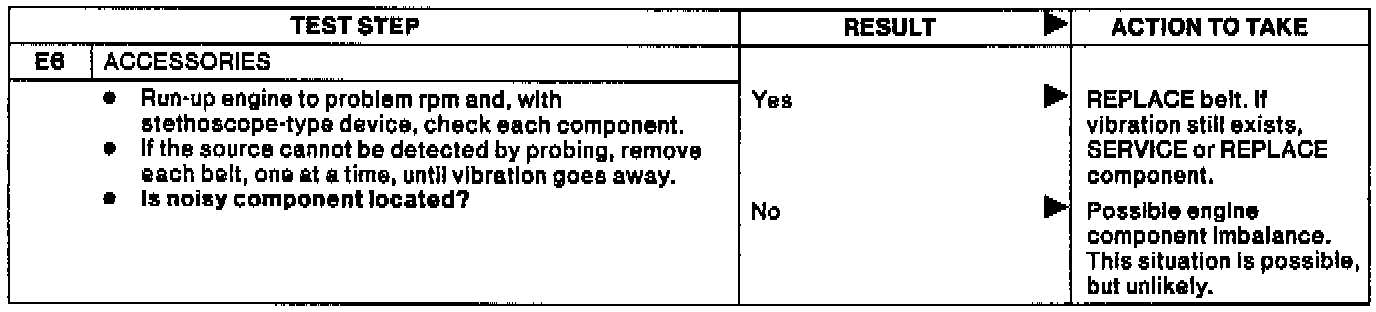

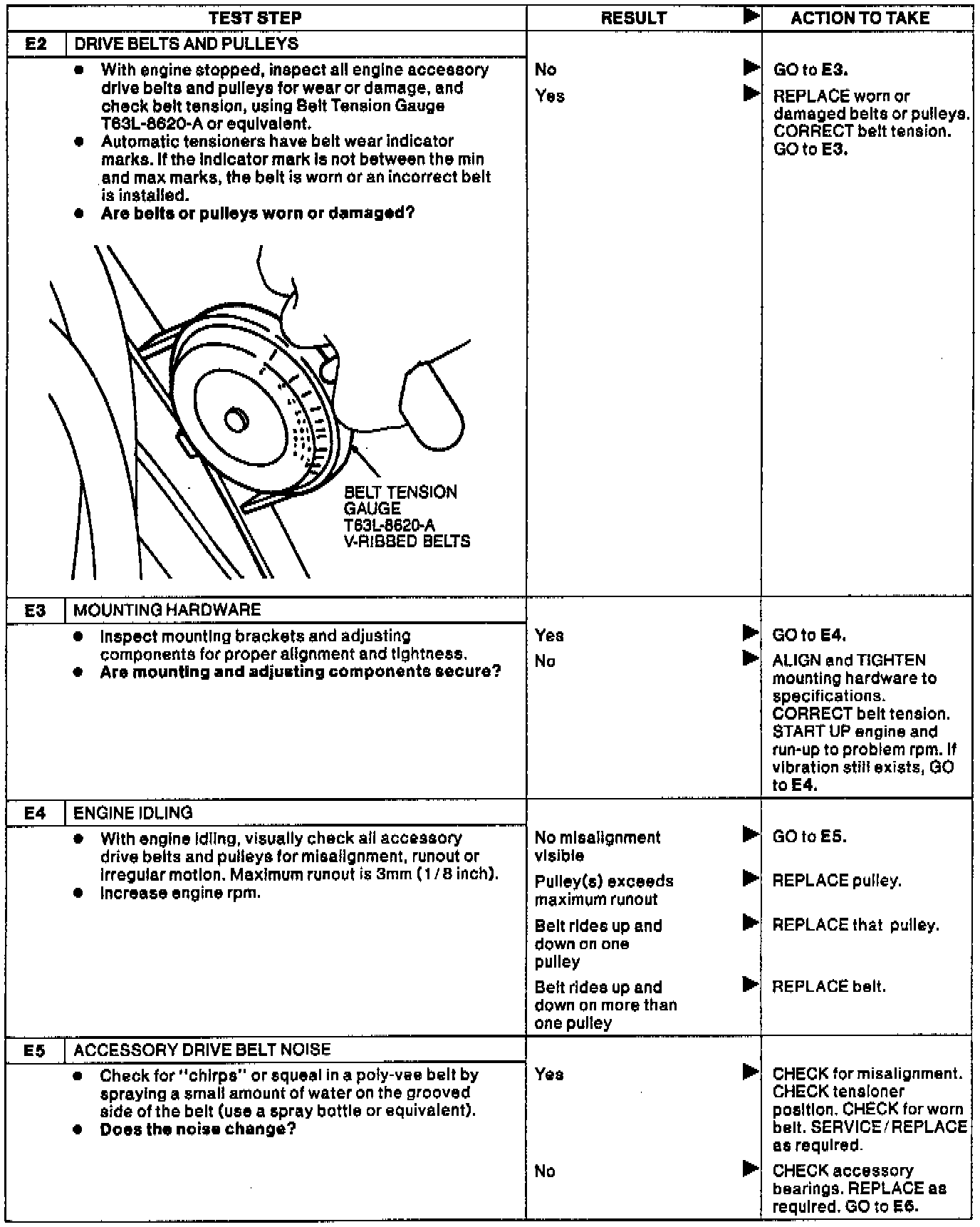

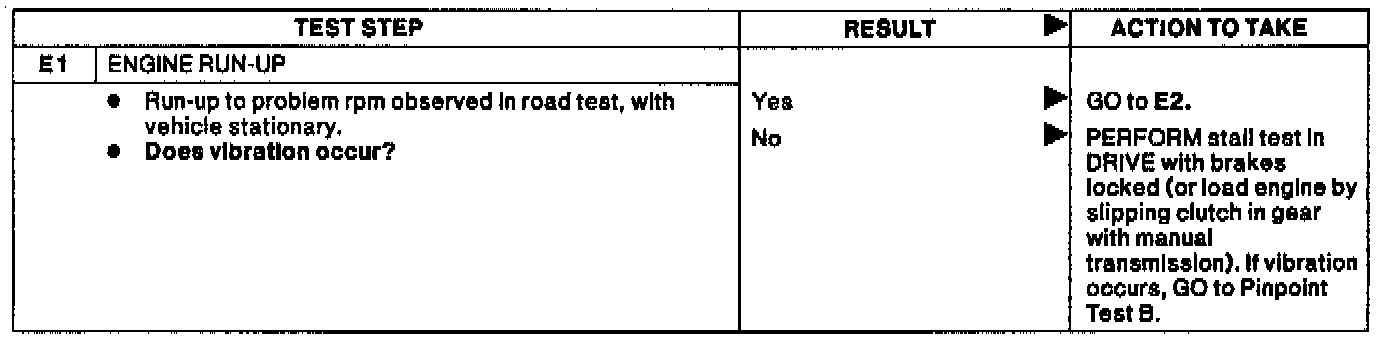

Engine Accessory Vibration Diagnosis:



Engine Accessory Vibration Diagnosis:



Engine Accessory Vibration Diagnosis:
