Home >> Ford >> 1993 >> Taurus V6-183 3.0L VIN U FI >> Repair and Diagnosis >> Cruise Control >> Diagrams >> Electrical Diagrams >> Part 1 of 2

Part 1 of 2

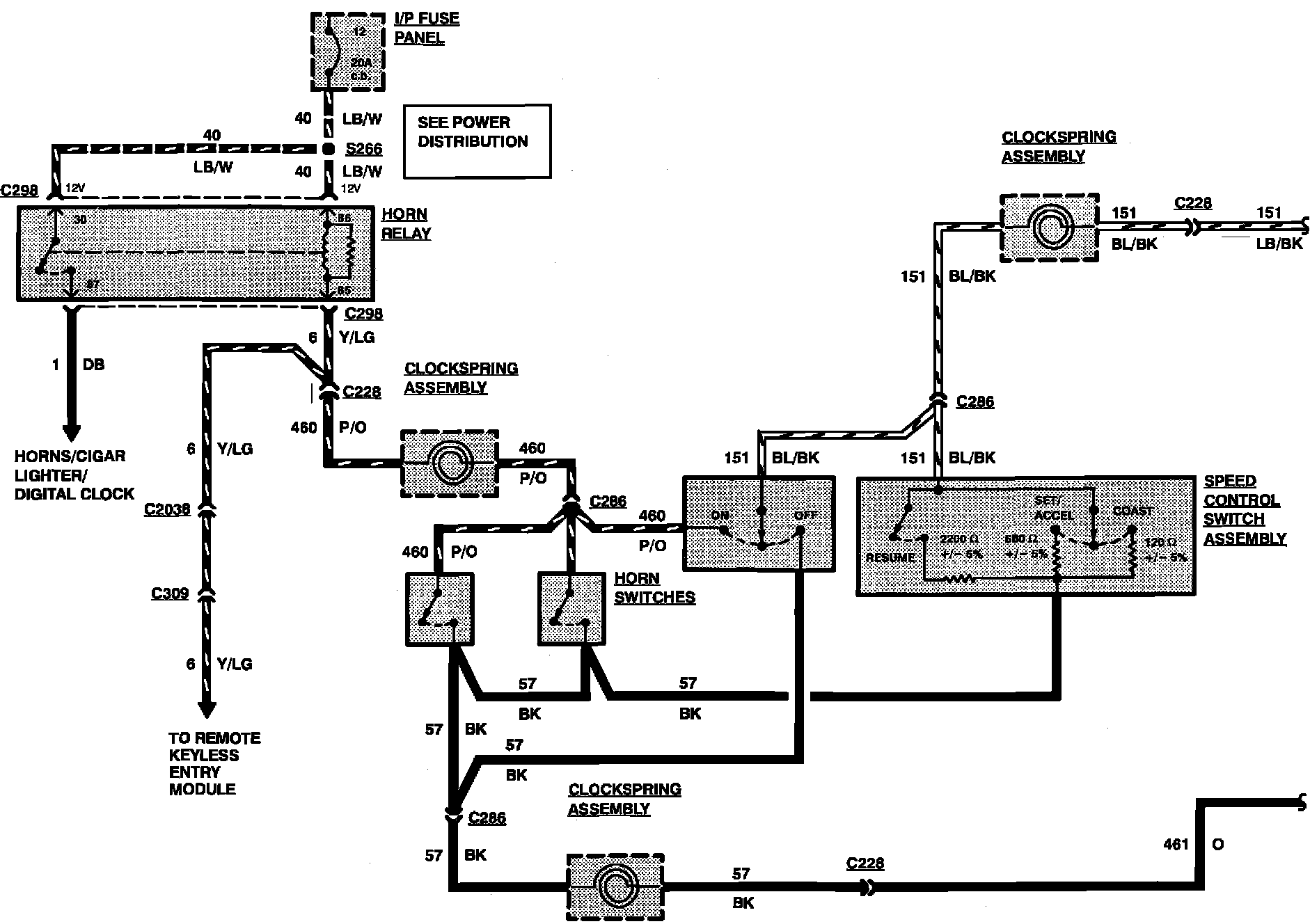

Speed Control:
