Automatic Transmission/Transaxle
>>
System Diagram
System Diagram
Manual Lever Position (MLP) Sensor:

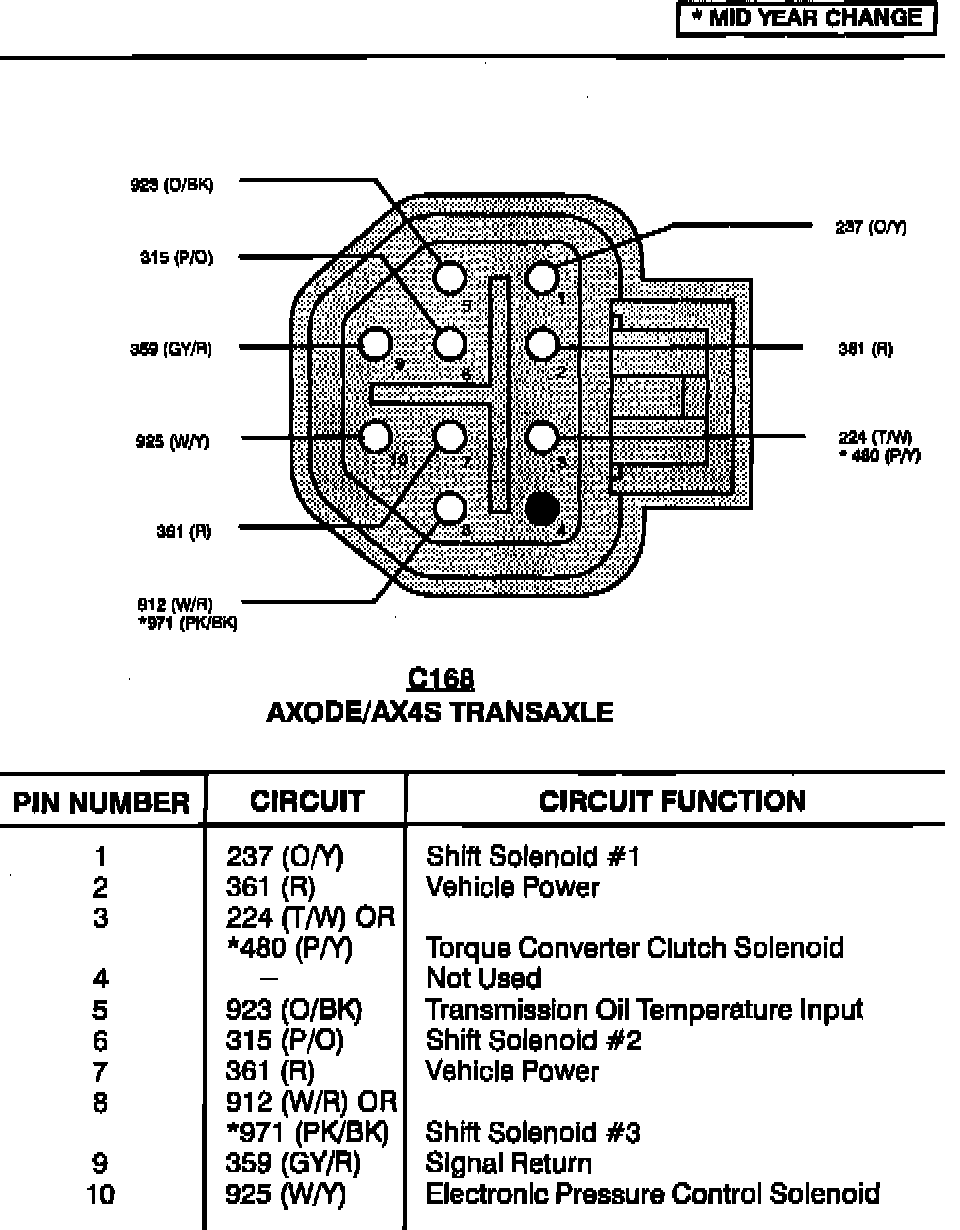

AXODE/AX4S Transaxle:
