Non-Variable Assist Power Steering
Non-Variable Assist Power Steering

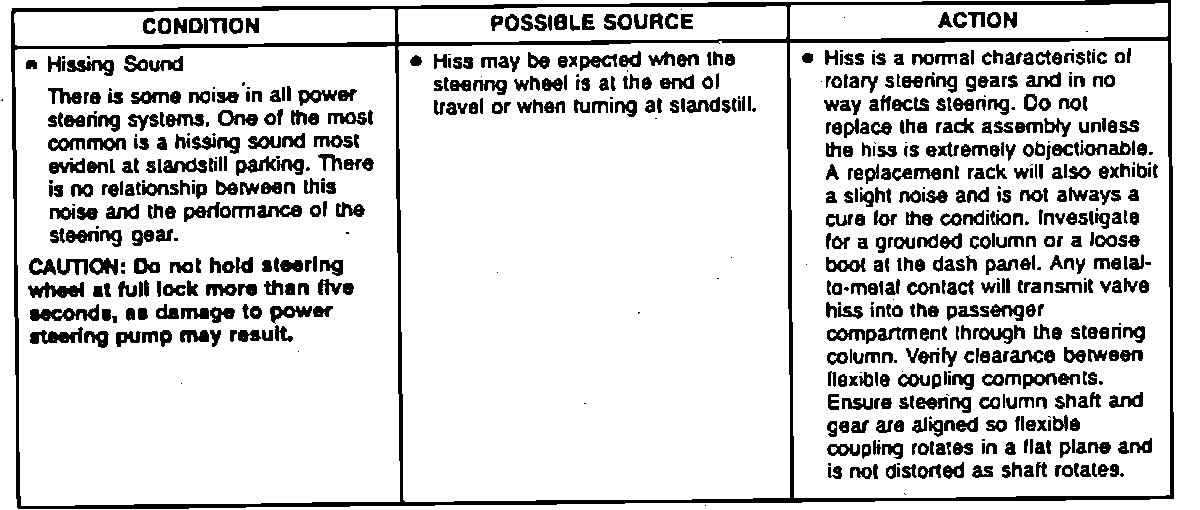

Fig. 5 Troubleshooting (Part 1 Of 3):

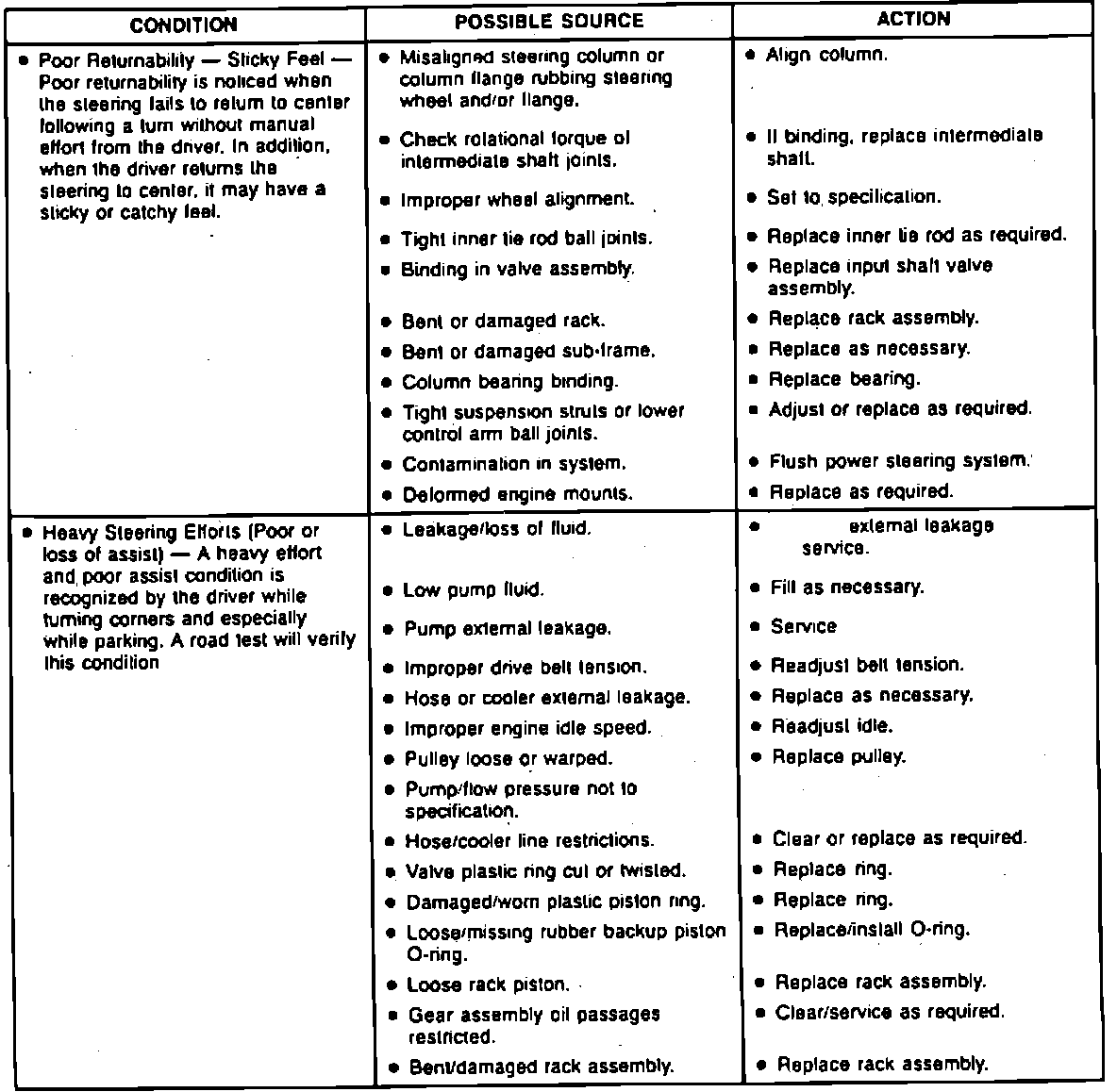

Fig. 5 Troubleshooting (Part 2 Of 3):

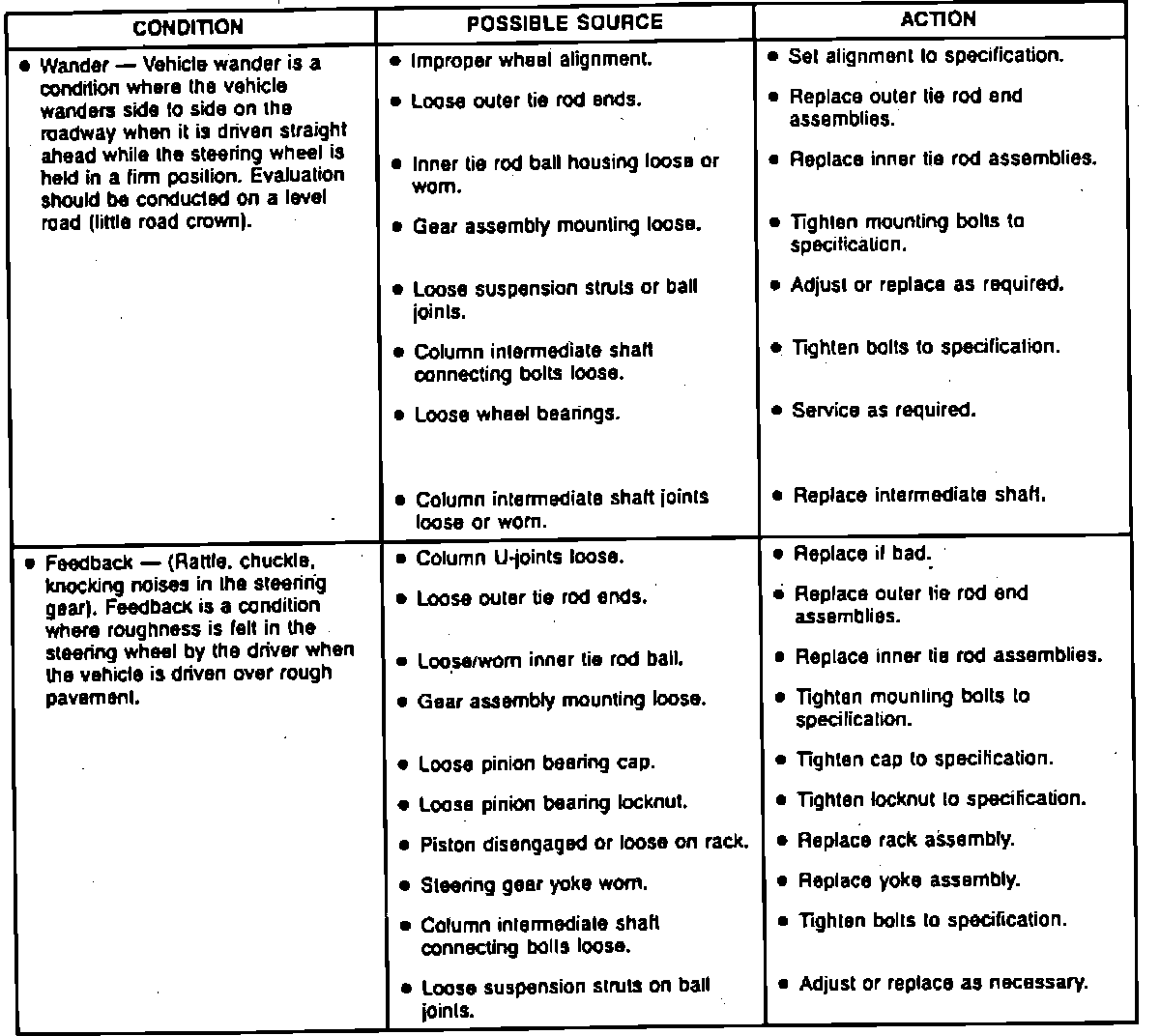

Fig. 5 Troubleshooting (Part 3 Of 3):
