Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1993
>>
Taurus V6-183 3.0L VIN U FI
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
>>

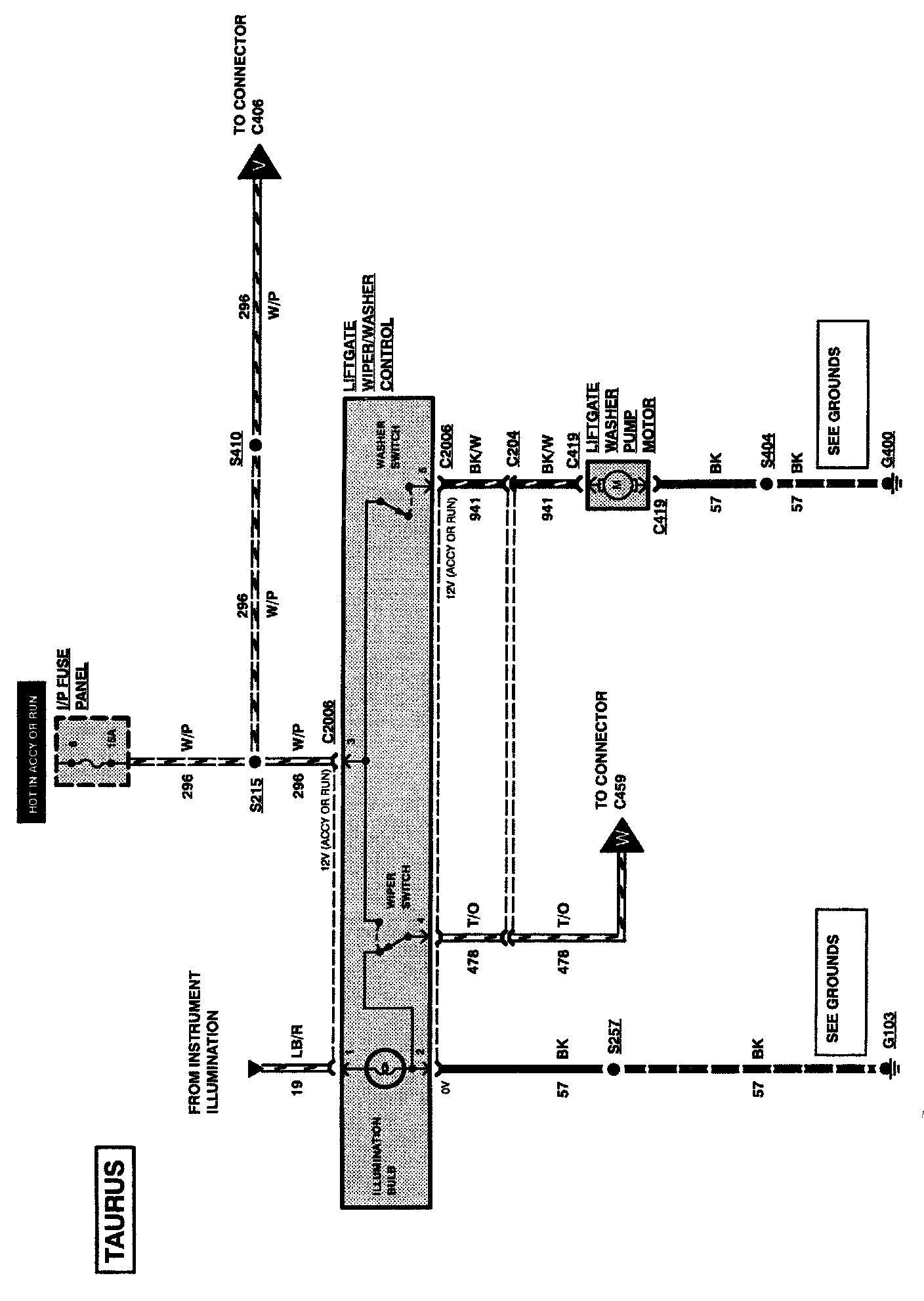

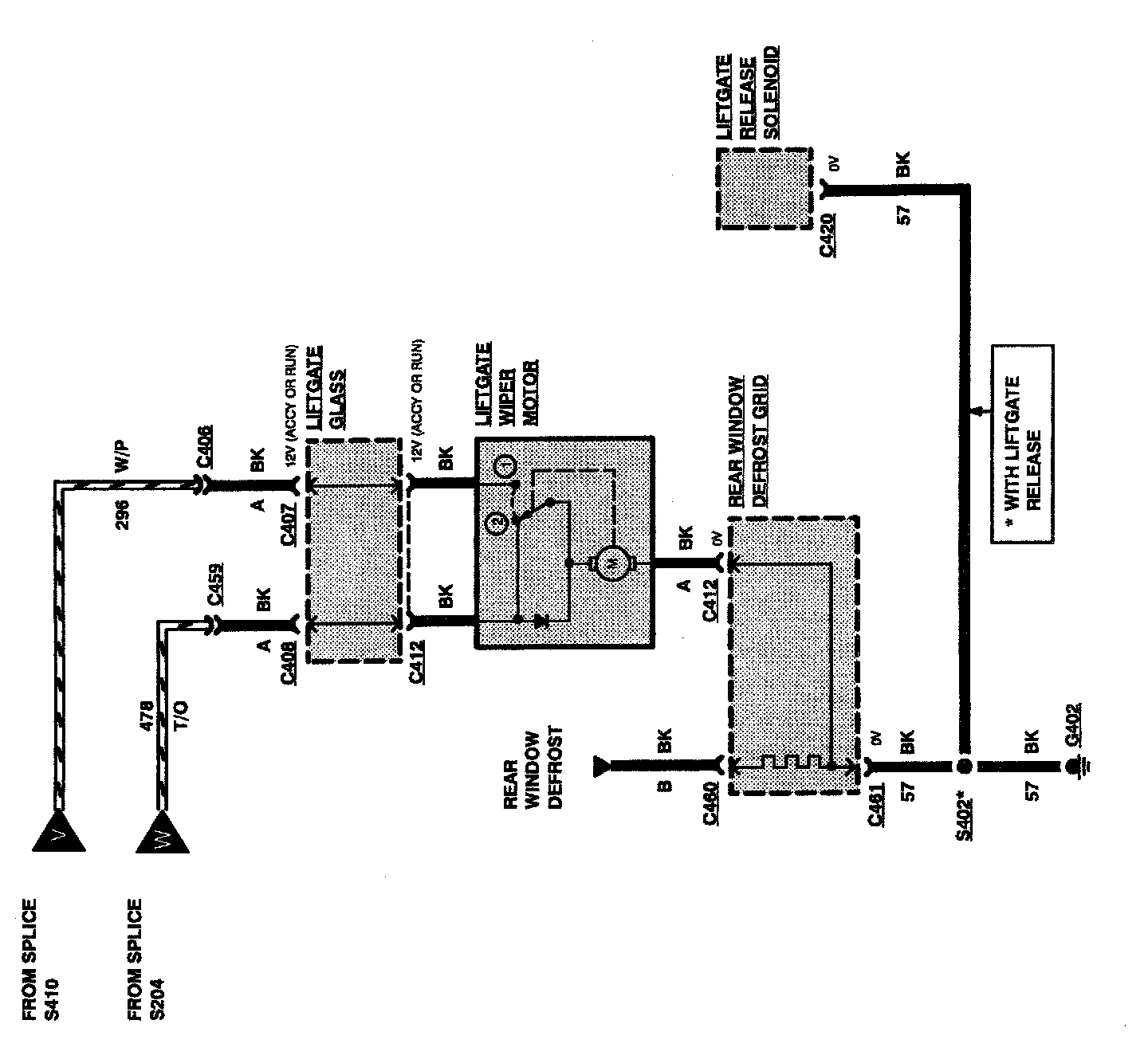

Liftgate Wiper/Washer/Rear Window Defrost/Lift Gate Release
Liftgate Wiper/Washer/Rear Window Defrost/Lift Gate Release
