Amplifier, Sound System
>>

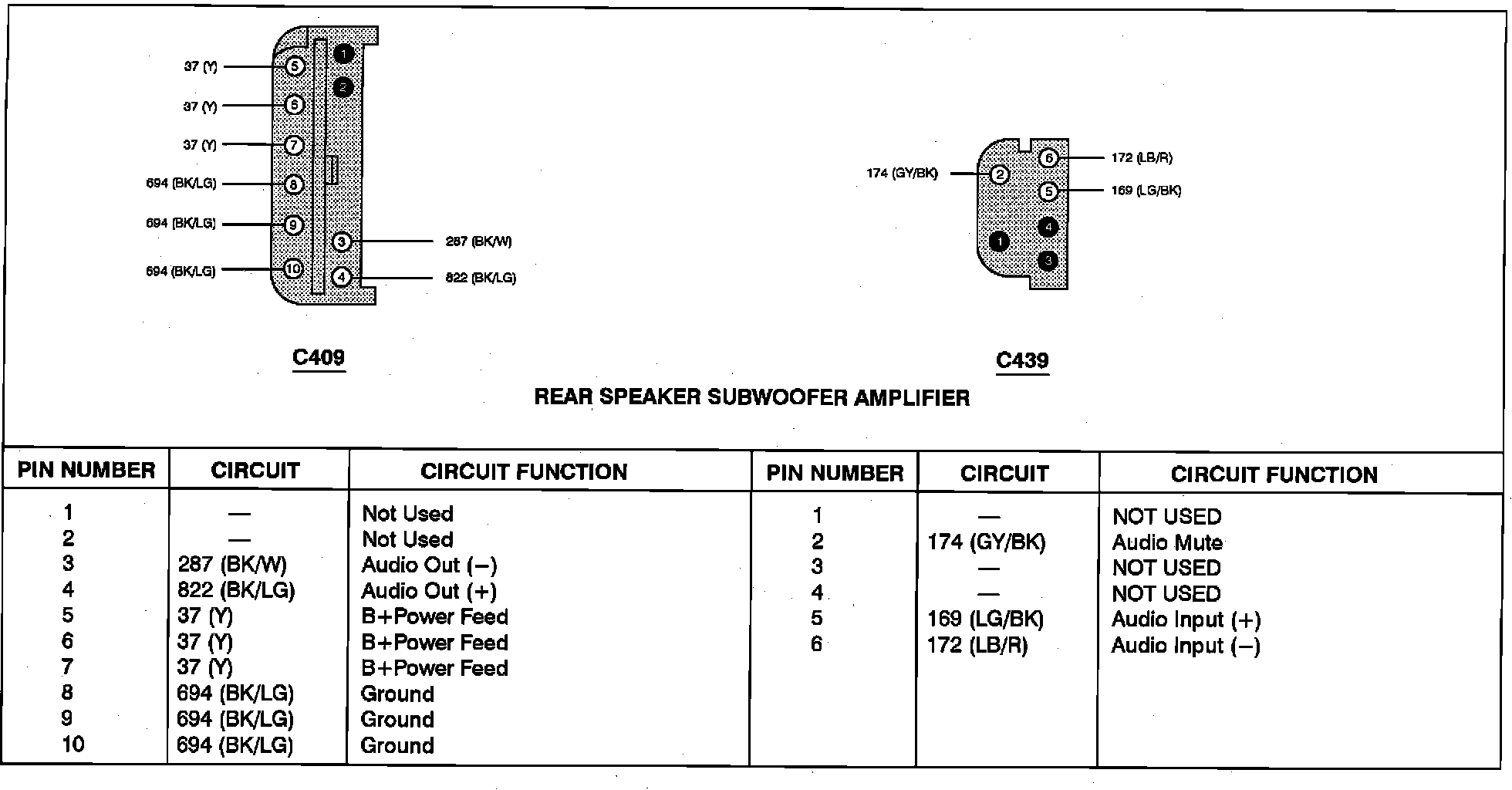

Rear Speaker Subwoofer Amplifier
Rear Speaker Subwoofer Amplifier
Rear Speaker Subwoofer Amplifier:
