Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1994
>>
Mustang V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C140
C140

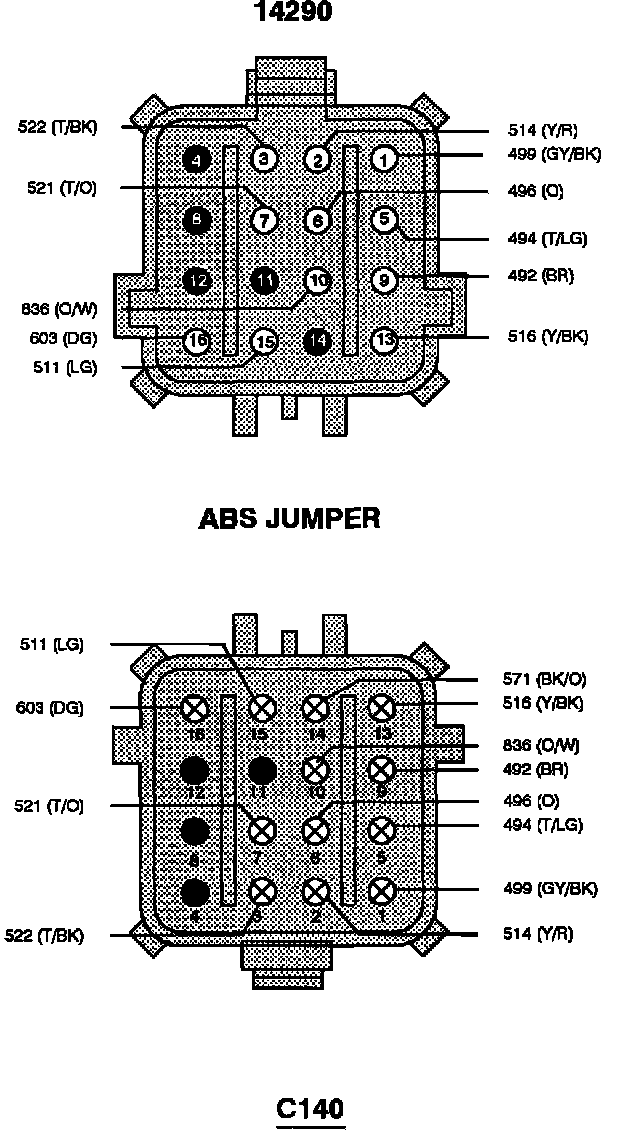

Connector Face Identification:
