Mustang V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

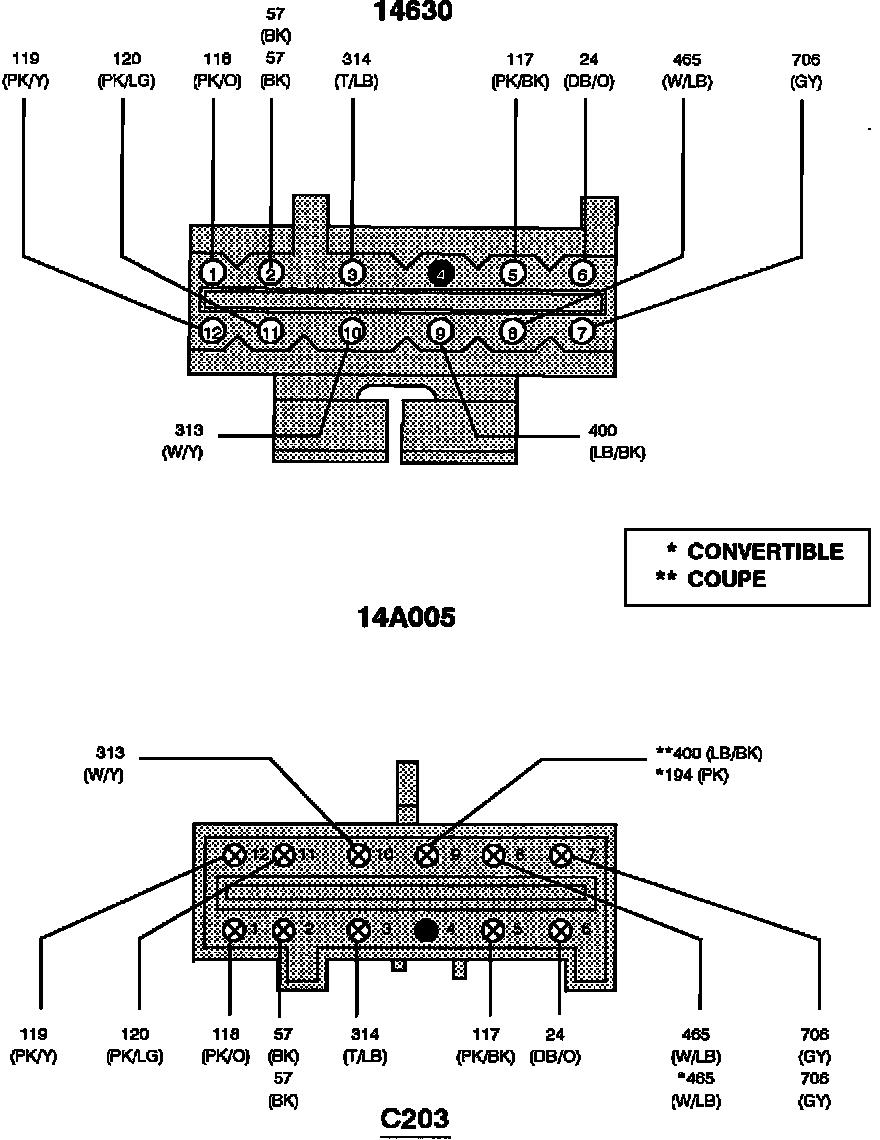

Multiple Junction Connector
>>
C203
C203
Connector Face Identification:
