Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1994
>>
Mustang V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

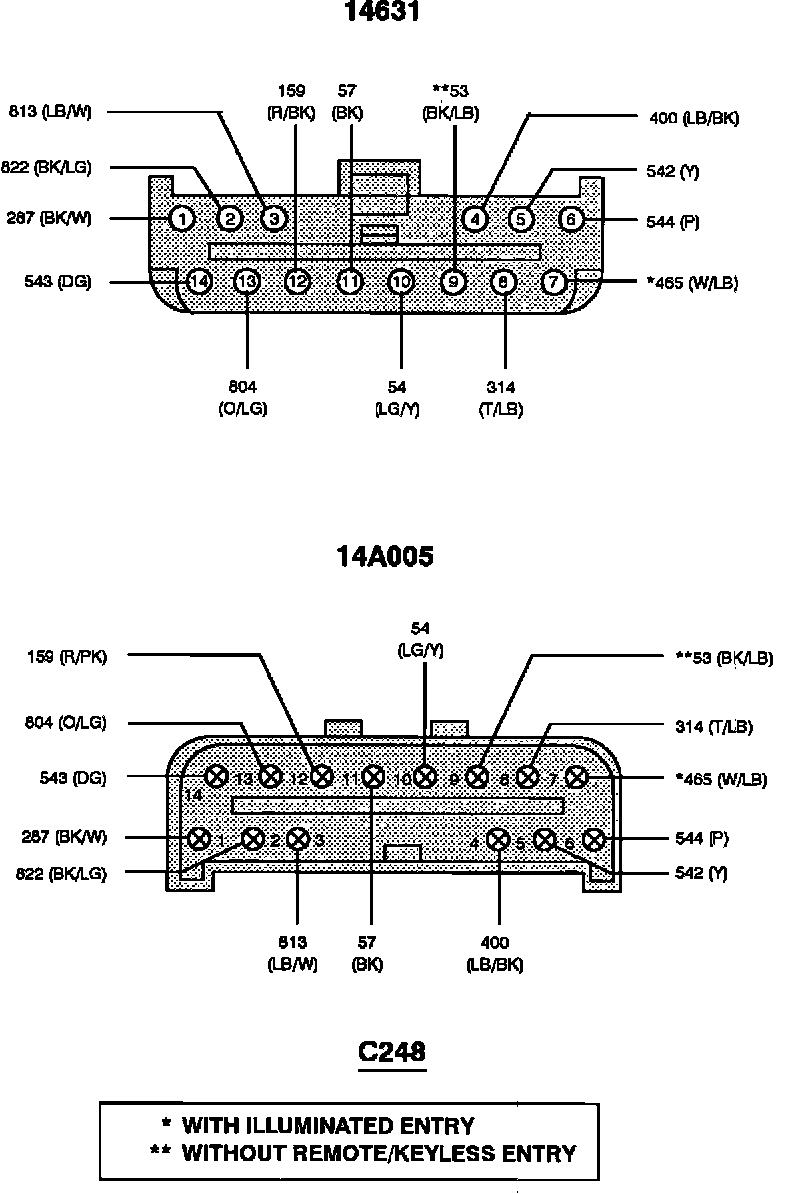

Multiple Junction Connector
>>
C248
C248
Connector Face Identification:
