System Diagram

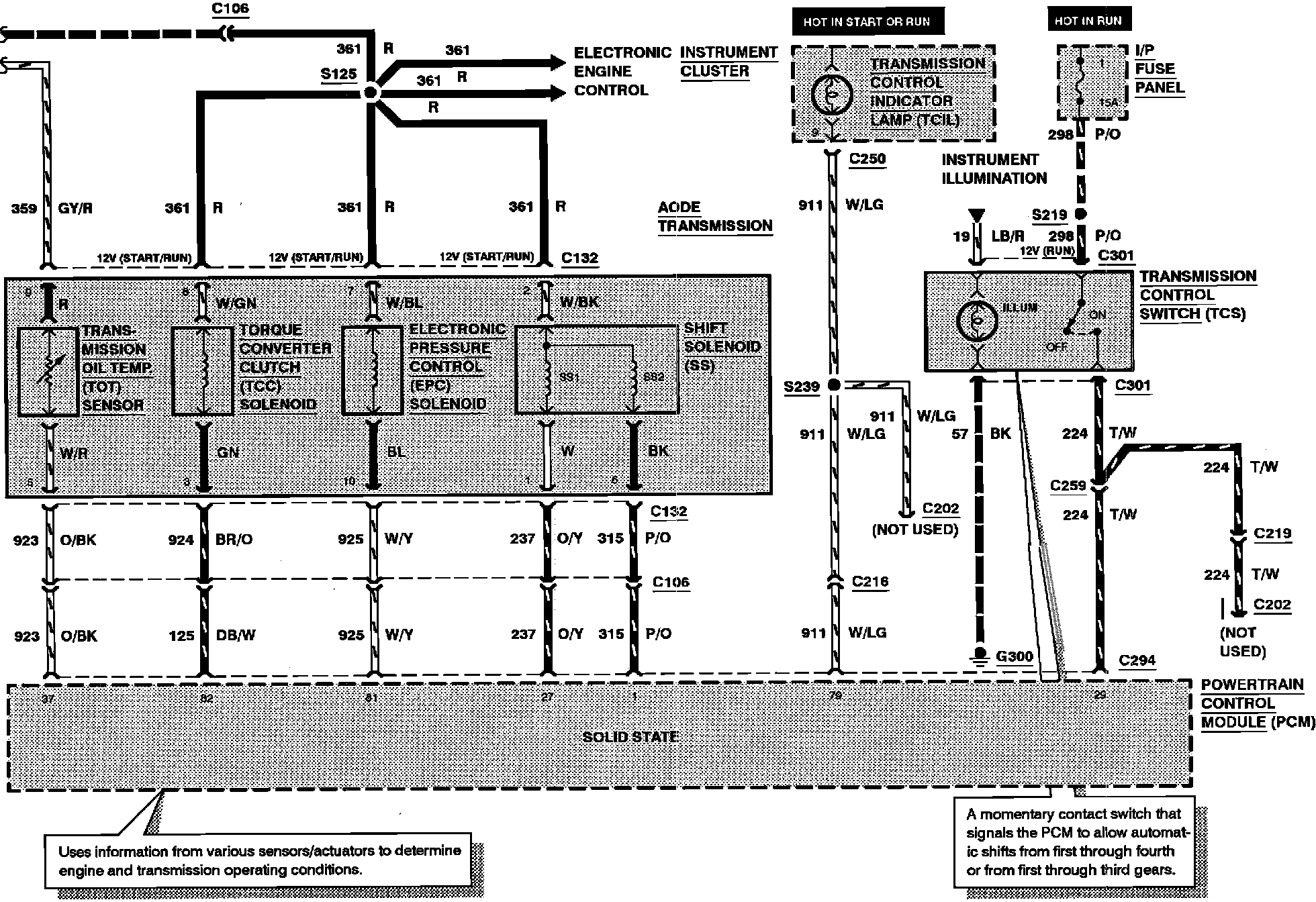

Electronic Automatic (AODE) Transmission:



Electronic Automatic (AODE) Transmission:
