Compressor Clutch Relay

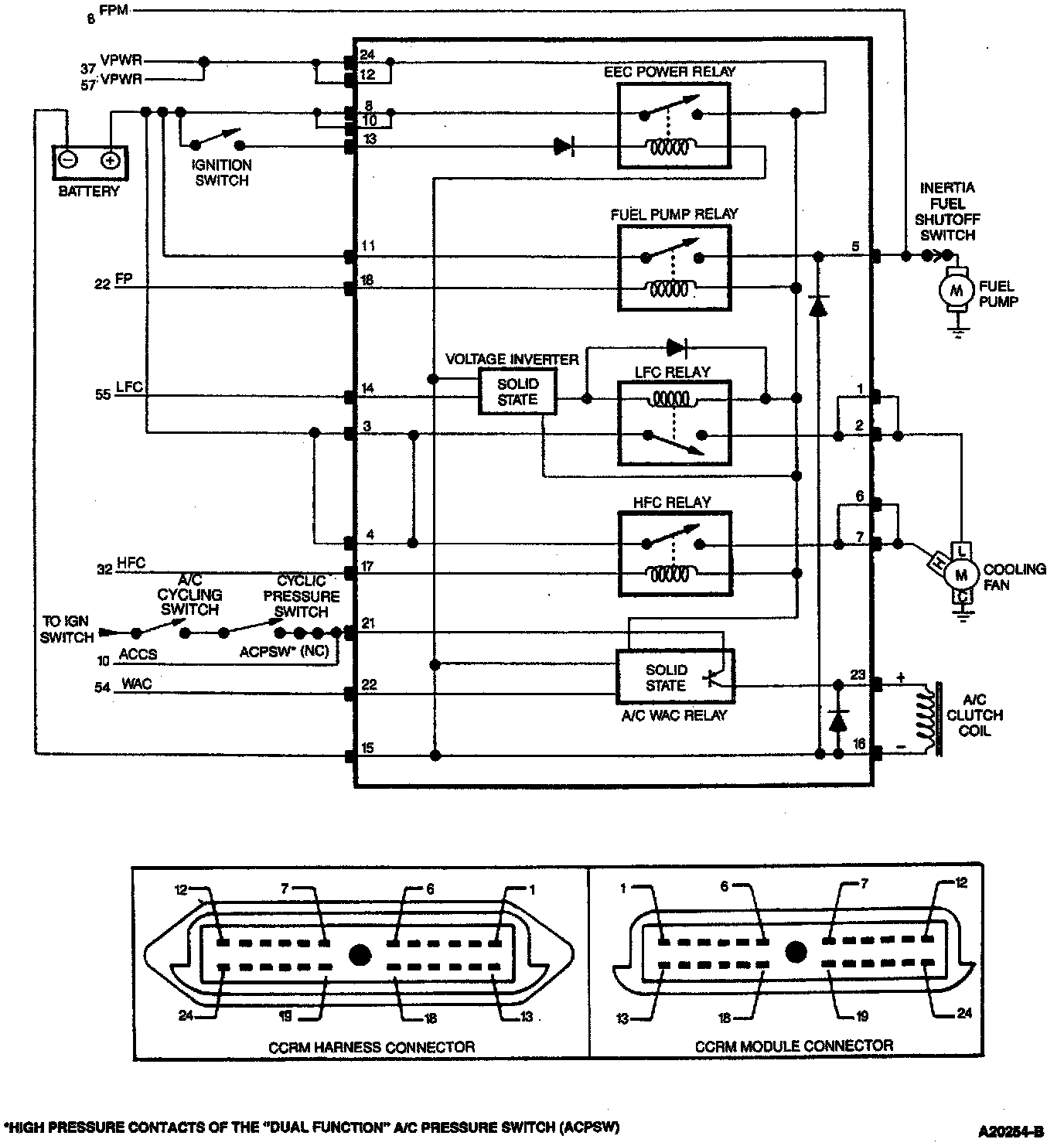

Schematic:






ELECTRICAL DIAGRAM

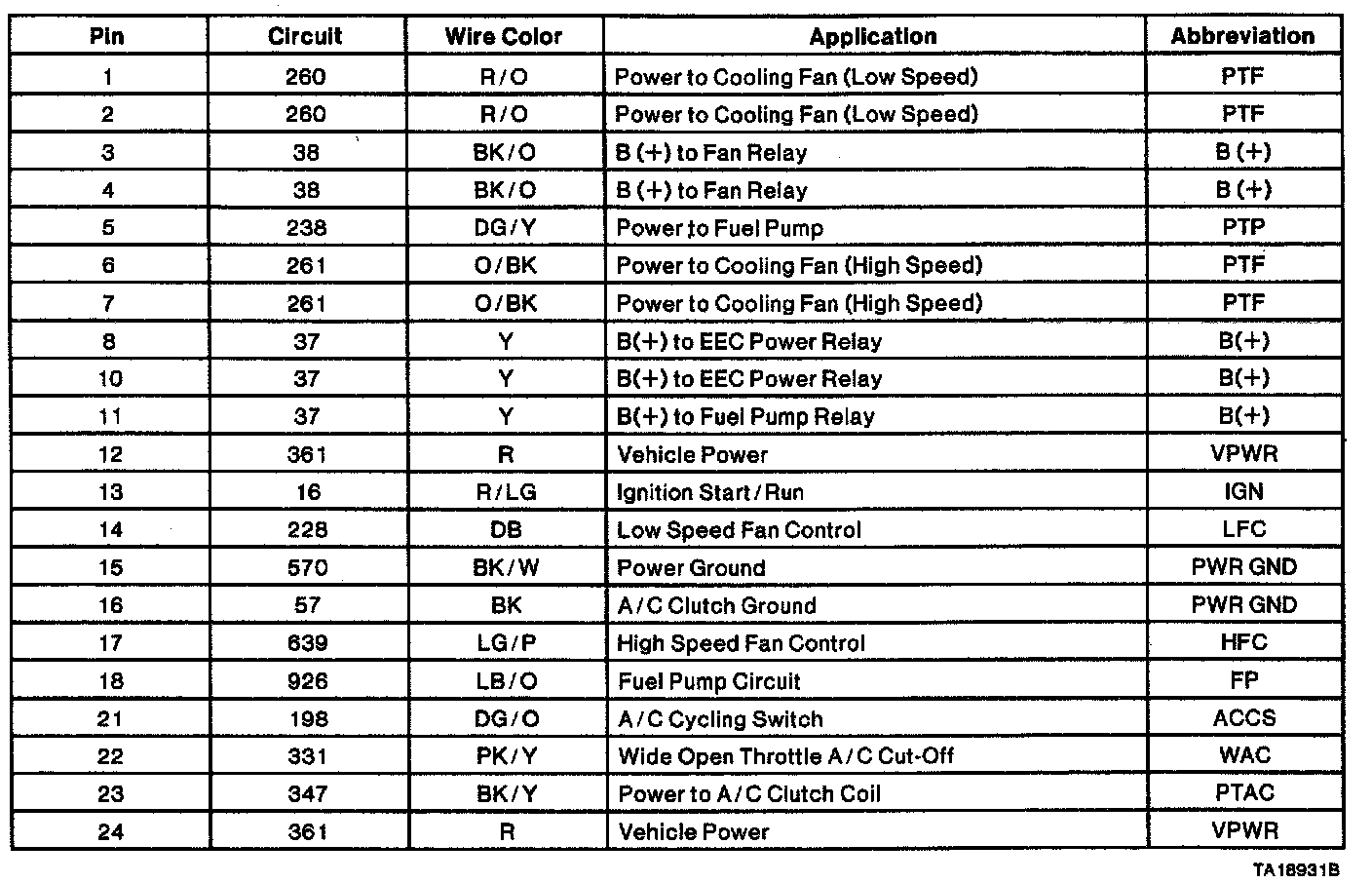

CCRM Pin Usage:






PINOUT IDENTIFICATION
