Engine Compartment Views

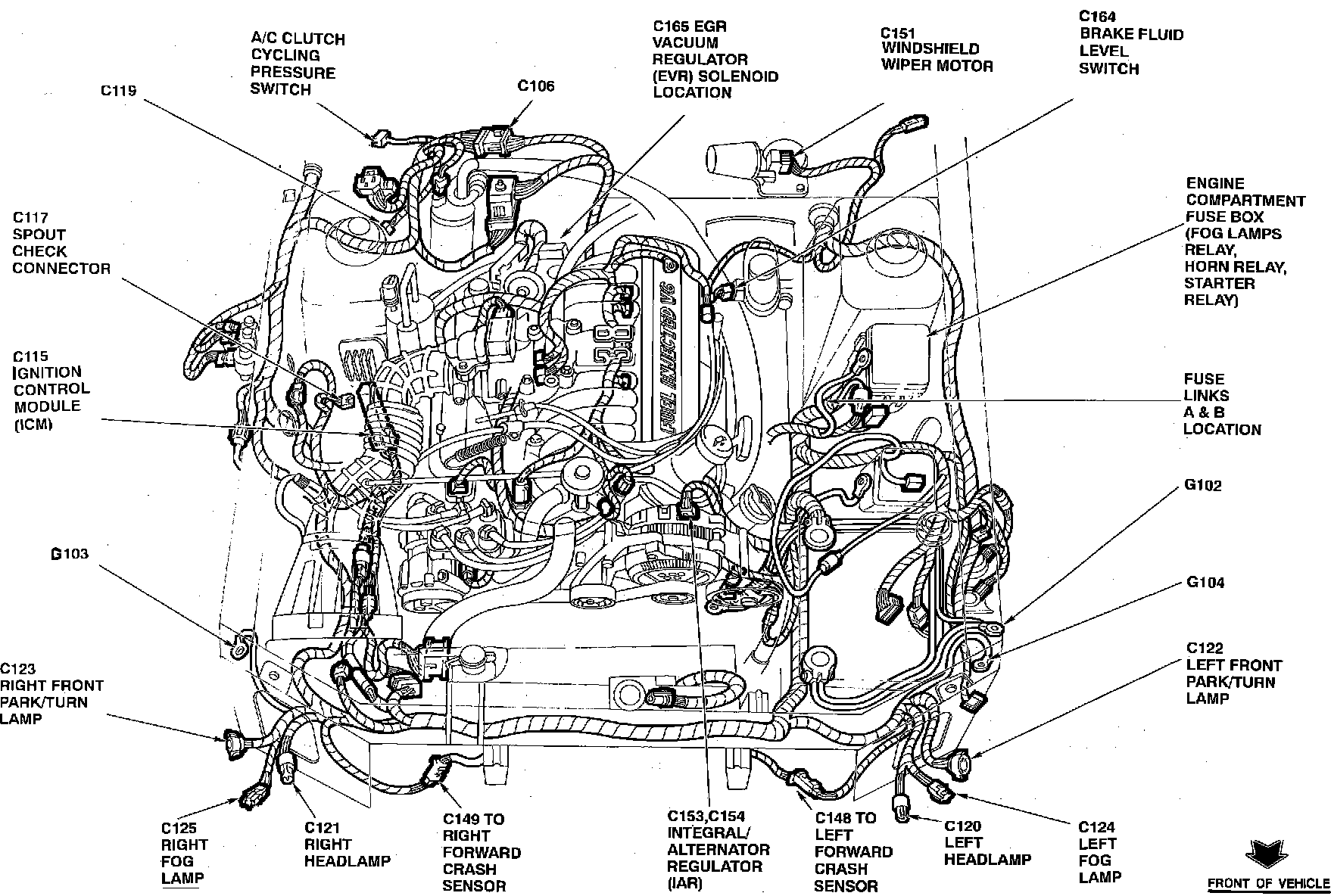

Component Locations:

A/C CLUTCH CYCLING PRESSURE SWITCH
BRAKE FLUID LEVEL SWITCH
EGR VACUUM REGULATOR SOLENOID
ENGINE COMPARTMENT FUSE BOX
FUSE LINKS A & B
IGNITION CONTROL MODULE
INTEGRAL ALTERNATOR REGULATOR
LEFT FOG LAMP
LEFT FORWARD CRASH SENSOR
LEFT FRONT PARK/TURN LAMP
LEFT HEADLAMP
RIGHT FOG LAMP
RIGHT FORWARD CRASH SENSOR
RIGHT FRONT PARK/TURN LAMP
RIGHT HEADLAMP
SPOUT CHECK CONNECTOR
WINDSHIELD WIPER MOTOR

Component Locations:

ABS DIAGNOSTIC CONNECTOR
A/C HIGH PRESSURE CUTOUT/FAN SWITCH
CONSTANT CONTROL RELAY MODULE
DATA LINK CONNECTORS
ELECTRIC COOLING FAN MOTOR
FUEL INJECTORS
HIGH PITCH HORN
INTAKE AIR TEMPERATURE SENSOR
LEFT FRONT BRAKE SENSOR
LOW PITCH HORN
MASS AIR FLOW SENSOR
RIGHT FRONT BRAKE SENSOR
SPEED CONTROL SERVO
WASHER PUMP MOTOR
WASHER PUMP MOTOR TEST CONNECTOR

Component Locations:

A/C CLUTCH FIELD COIL
ANTI-LOCK BRAKE CONTROL MODULE
CAMSHAFT POSITION SENSOR
CANISTER PURGE
CRANKSHAFT POSITION SENSOR
DIFFERENTIAL PRESSURE FEEDBACK SENSOR
DAYTIME RUNNING LAMPS (DRL) MODULE
ENGINE COMPARTMENT LAMP
ENGINE COOLANT TEMPERATURE SENDER
ENGINE COOLANT TEMPERATURE (ECT) SENSOR
ENGINE OIL PRESSURE SWITCH
IDLE AIR CONTROL VALVE
IGNITION COIL
LEFT FRONT HEATED OXYGEN SENSOR
RADIO INTERFERENCE CAPACITOR
RIGHT FRONT HEATED OXYGEN SENSOR
STARTER/MOTOR SOLENOID
THROTTLE POSITION SENSOR (TPS)
