Fuel Gauge: Testing and Inspection

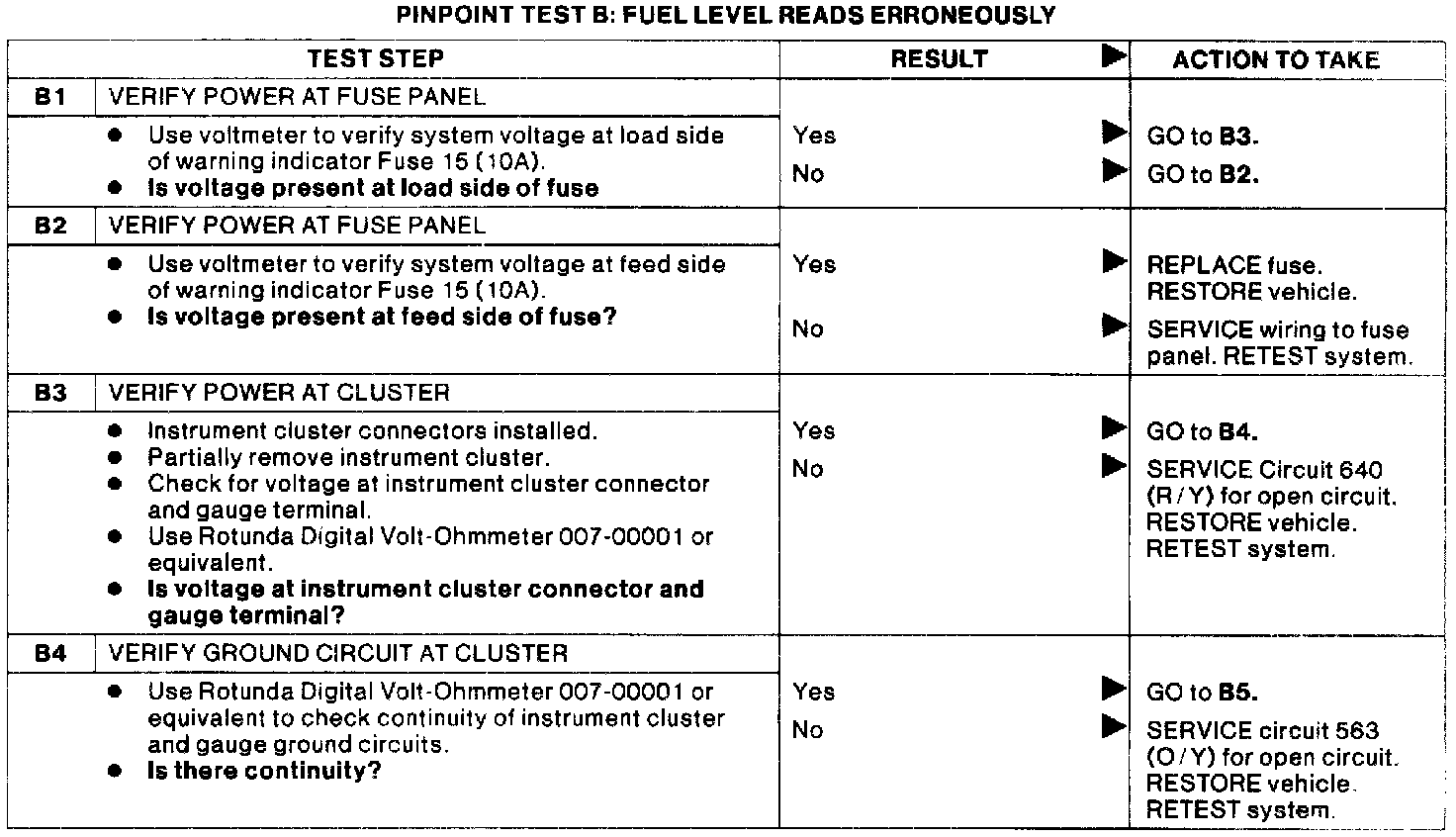

Test B: Fuel Level Reads Inaccurately.:





Test B1-B4

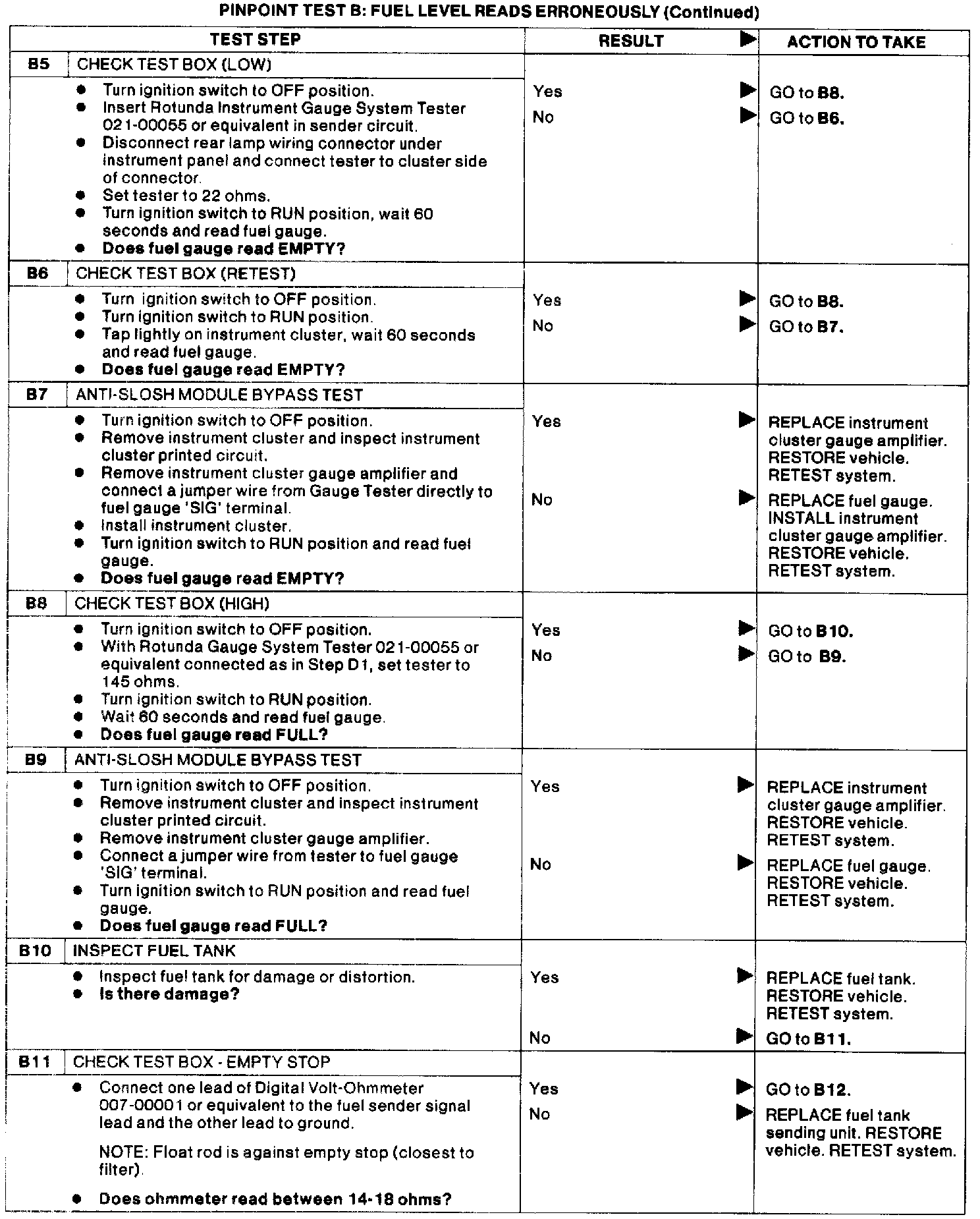

Test B: Fuel Level Reads Inaccurately.:





Test B5-B11

Test B: Fuel Level Reads Inaccurately.:





Test B12-B17
