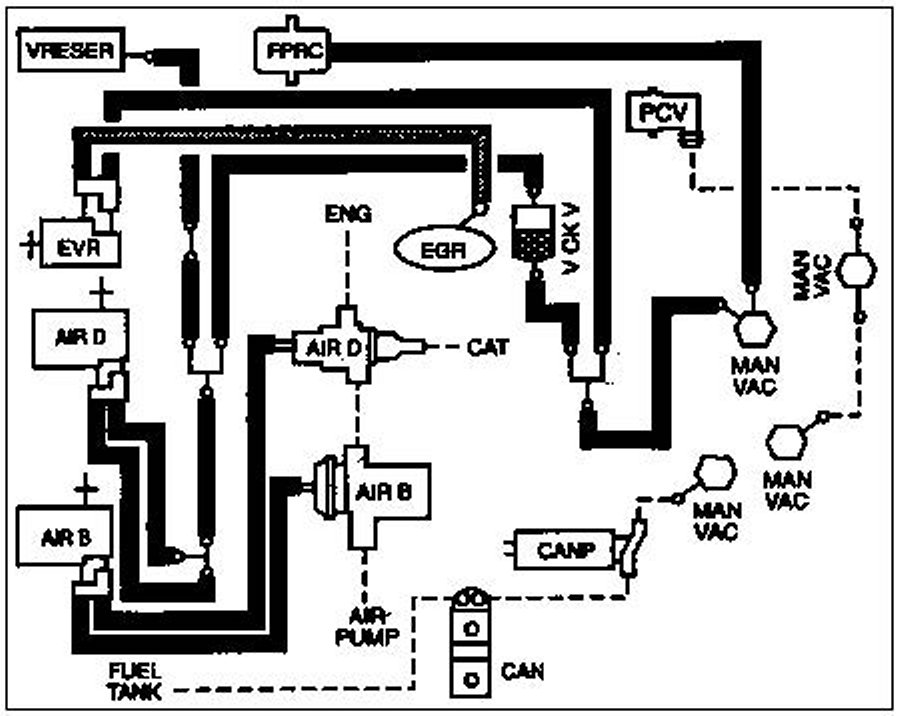

Vacuum and Vapor Hose Diagrams

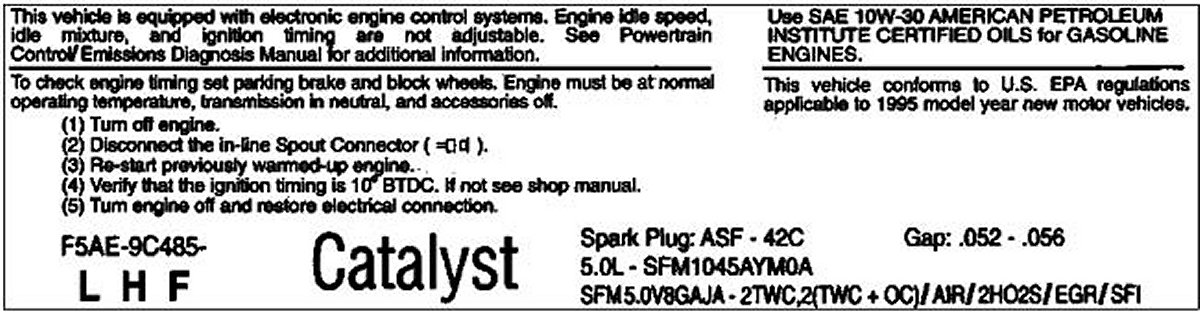

LHF (49 States) DECAL

LHF (1 Of 3):

LHF (2 Of 3):

LHF (3 Of 3):

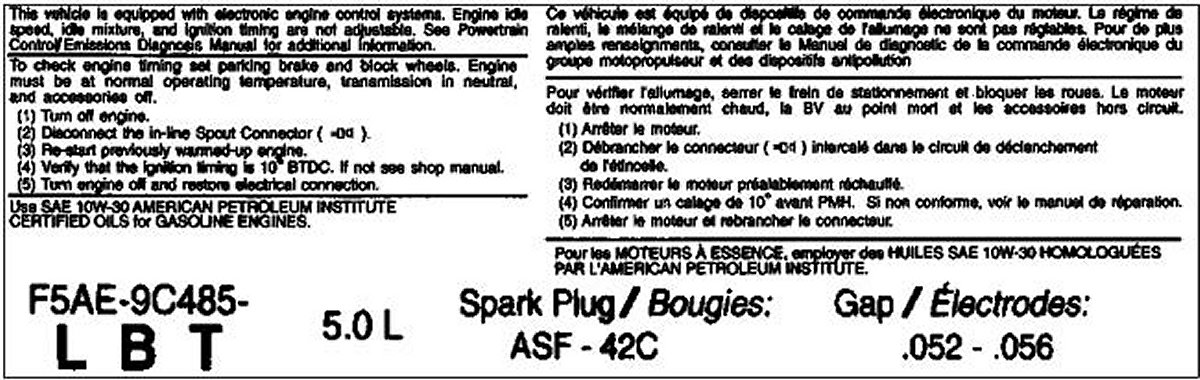

LBT (Canada) DECAL

LBT (1 Of 3):

LBT (2 Of 3):

LBT (3 Of 3):

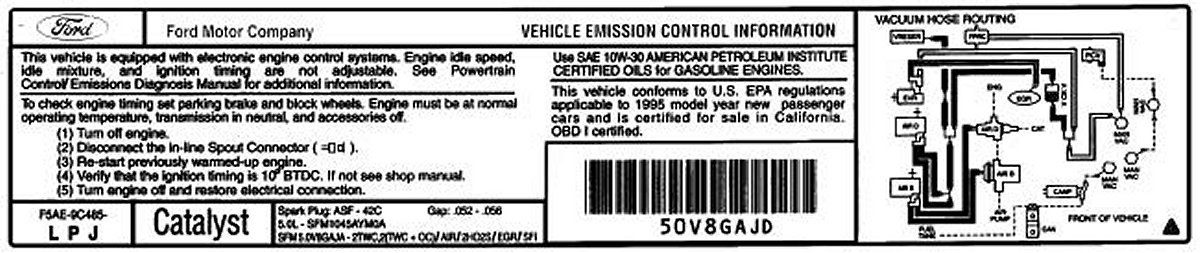

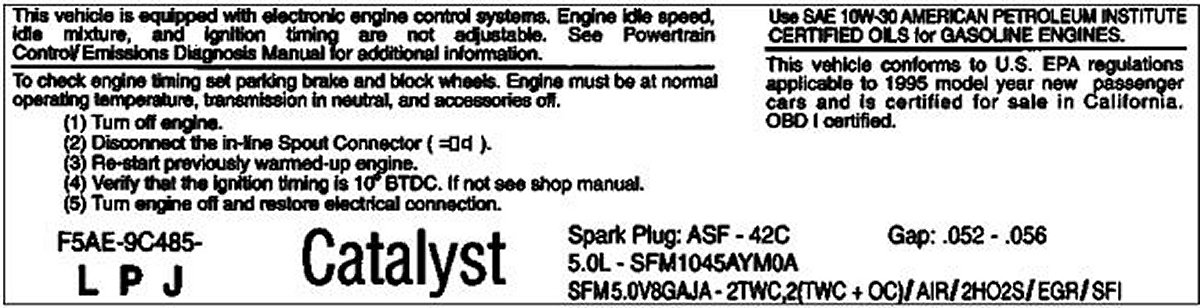

LPJ (50 States) DECAL

LPJ (1 Of 3):

LPJ (2 Of 3):

LPJ (3 Of 3):
