Headlamps - Removal Procedure Service Tip

Article No.
94-26-5

12/26/94

LAMPS - HEADLAMPS - REMOVAL PROCEDURE - SERVICE TIP

FORD:
1994-95 MUSTANG

ISSUE:
The Headlamp Assembly removal procedure in the Service Manual is incorrect.

ACTION:
When service to the Headlamp Assembly is required, refer to the following Service Procedure for removal and installation procedures.

SERVICE PROCEDURE

HEADLAMP ASSEMBLY REMOVAL





1. Remove scrivet and raise the sight shield panel to gain access to the back of the headlamp assembly. Refer to Figure 1.

2. Disconnect the headlamp electrical plug.

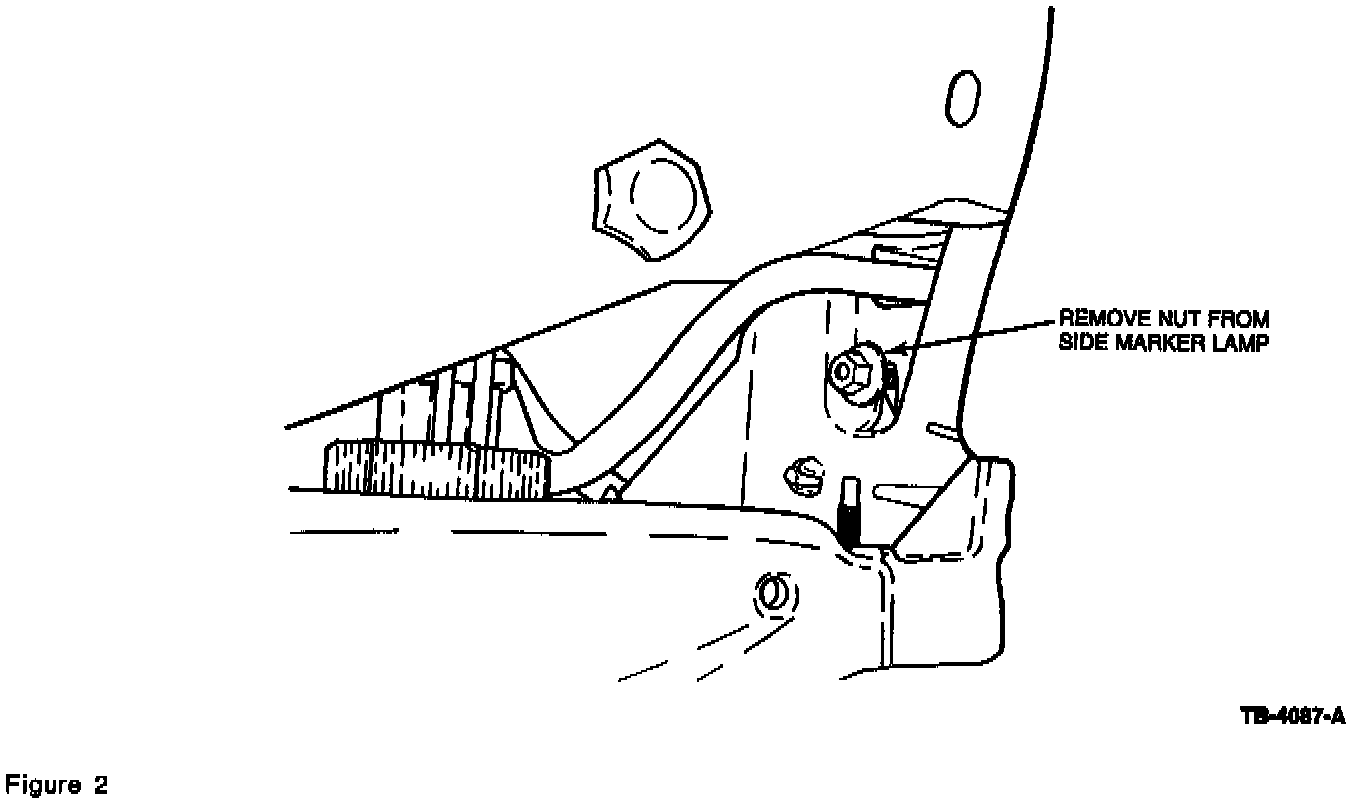

3. Remove one (1) nut retaining the side marker lamp. Remove the side marker lamp by pulling it straight out. Refer to Figure 2.

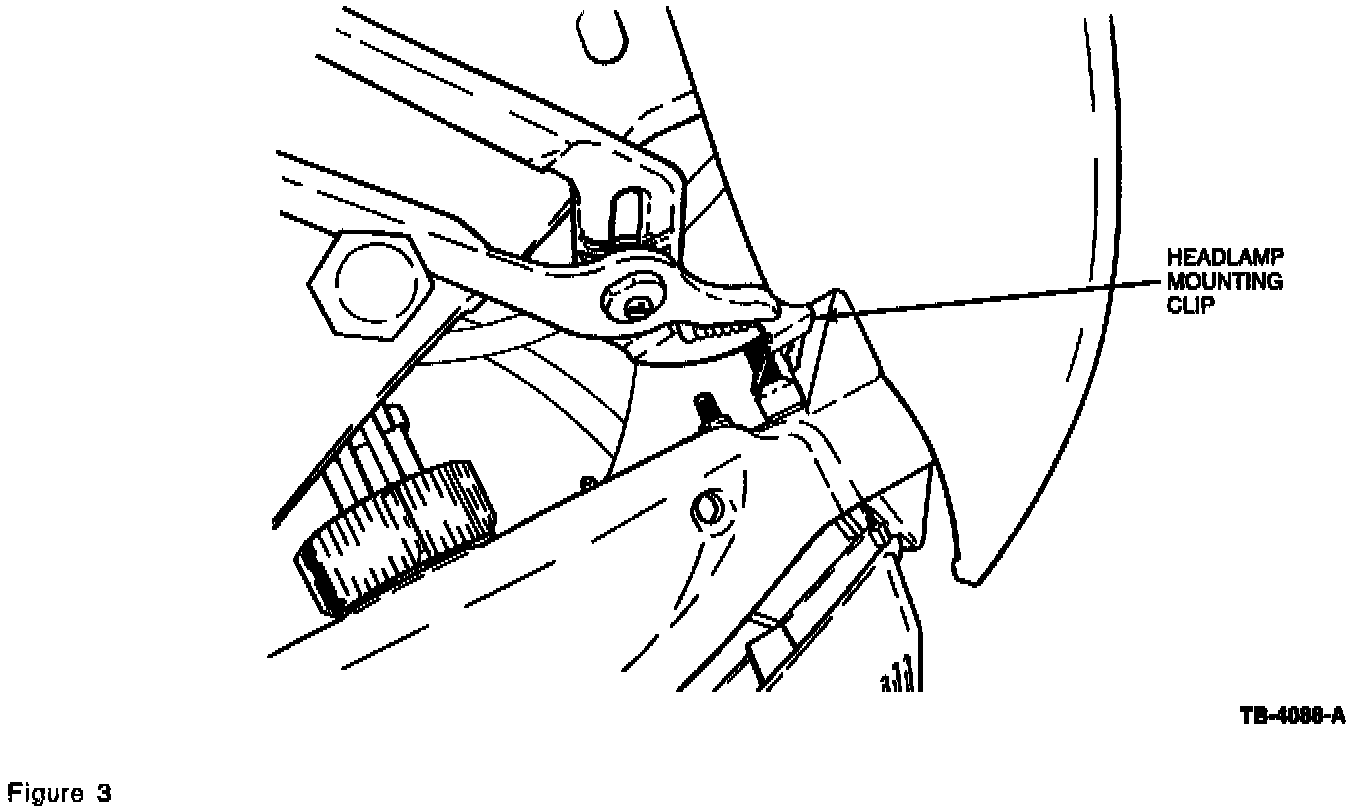

4. Remove headlamp mounting clip from upper outboard adjusting screw. Refer to Figure 3.





5. Squeeze the retaining tabs on the remaining headlamp screws, then push the studs forward to release the headlamp assembly. Refer to Figure 4.

HEADLAMP ASSEMBLY INSTALLATION

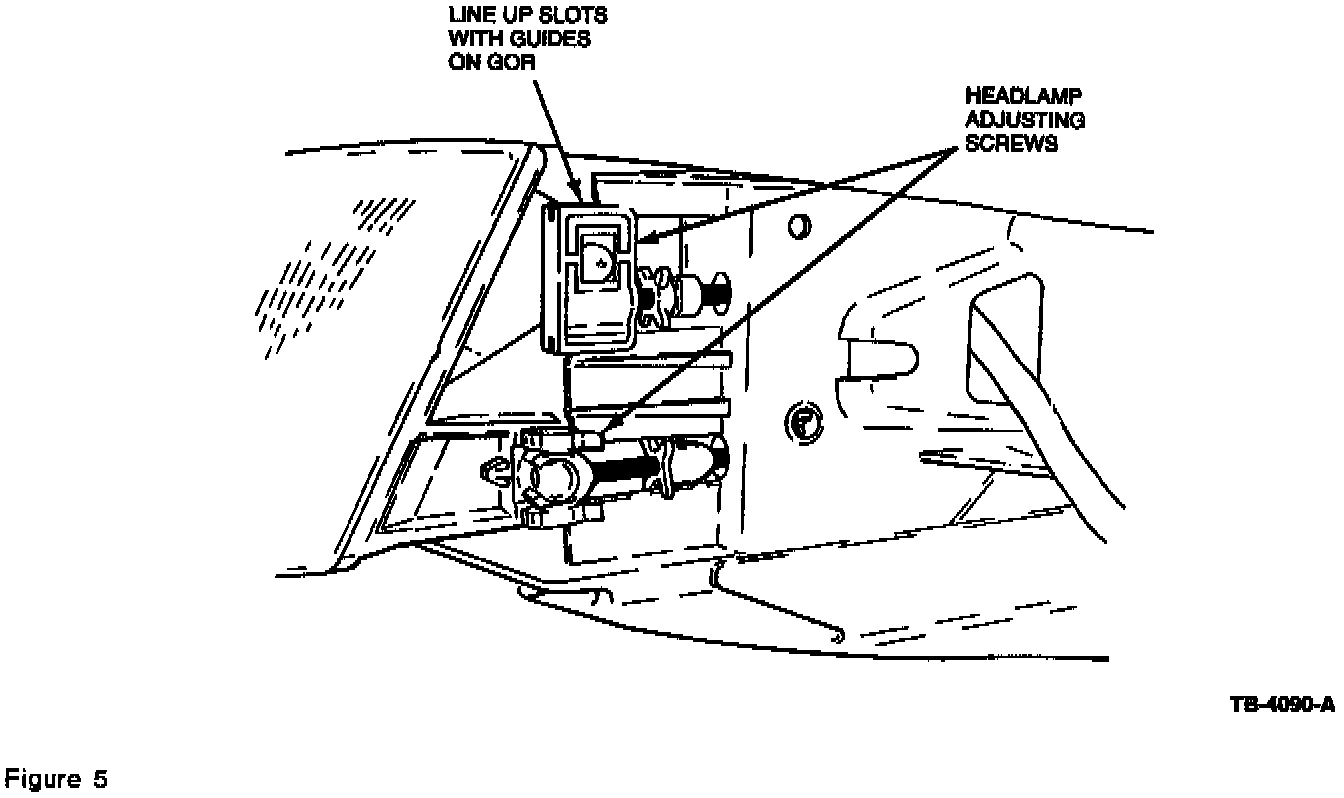

1. Align the adjusting screws with the guides and push the headlamp assembly straight back until the lock tabs engage. Refer to Figure 5.
2. Install the headlamp mounting clip.
3. Install the side marker lamp.
4. Reconnect the headlamp electrical connector.
5. Reposition the sight shield and re-install the scrivet.
6. Adjust the headlamp aim if installing a new headlamp assembly.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 201000, 201200
