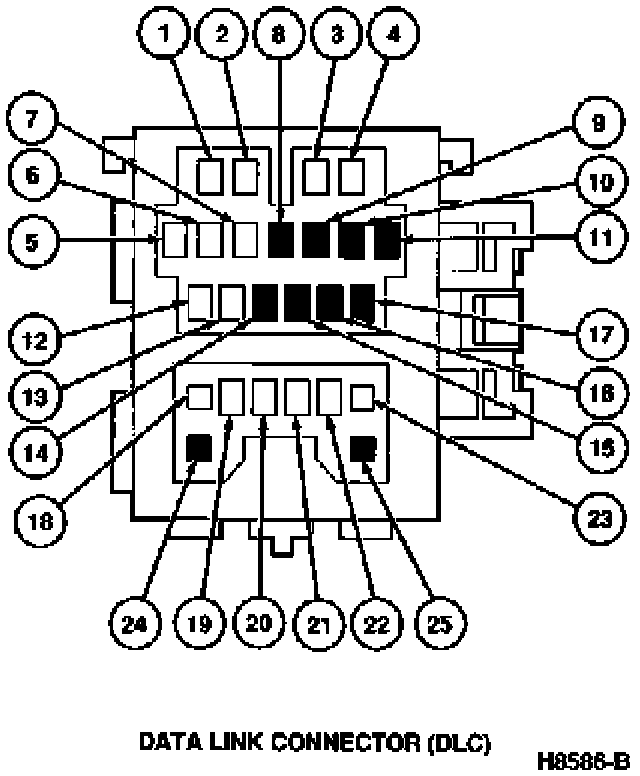

Diagnostic Connector - ABS

Pin Circuit Circuit Function

1 711 (LG/R) (FEN) PCM Self-Test Output (2.5L Only)
2 712 (W/R) (MEN) Switch Monitor Lamp (2.5L Only)
3 715 (R/W) (TEN) PCM Self-Test Input (2.5L Only)
4 41S (BK/Y) (+B) Battery Voltage
5 60 (BK) (GND) Ground
6 (*)835 (R) (FAT) TCM Self-Test Output
7 409 (O/BL) (FBS) Anti-Lock Brakes Self-Test Output
8 NOT USED
9 NOT USED
10 NOT USED
11 NOT USED
12 (*) 836 (R/BK) (TAT) TCM Self-Test Input
13 418 (PK/BK) (TBS) Anti-Lock Brakes Self-Test Input
14 NOT USED
15 NOT USED
16 NOT USED
17 NOT USED
18 952A (R/GN) (TAB) Air Bag Diagnostic Monitor Output
19 732 (Y/GN) (IG-) Tachometer Signal (2.5L Only)
20 52Z (BK) (GND) Ground (2.0L)
54D (BK) (GND) Ground (2.5L)
21 173A (BL/GN) (TFA) High Cooling Fan Relay (2.5L Only)
22 704A (LG) (F/P) Fuel Pump Relay (2.5L Only)
23 323B (GN/O) (FAB) Horn Relay
24 NOT USED
25 NOT USED
(*) - 2.5L ATX Only
